Videoslot Cable compatible to Cybervision?

MNT ZZ9000
1

Hello

I own a P5 Cybervision 64/3D. This Card has an equal 34-pin connector to the videoslot of the Amiga to act as an flickerfixer/scandoubler. Is the cable from the ZZ9000 pin compatible?

If not does somebody know which pins to change?

  • Amiga model: 2000
  • 680x0 CPU: 68060
  • RAM Configuration: 1MB Chip, 96MB 32Bit-Fast
  • Kickstart, AmigaOS Versions: 3.2
  • ZZ9000 Firmware version: 1.13
  • ZZ9000 Driver version: 1.13
  • Monitor model:
  • Other Zorro cards: AridneII
2

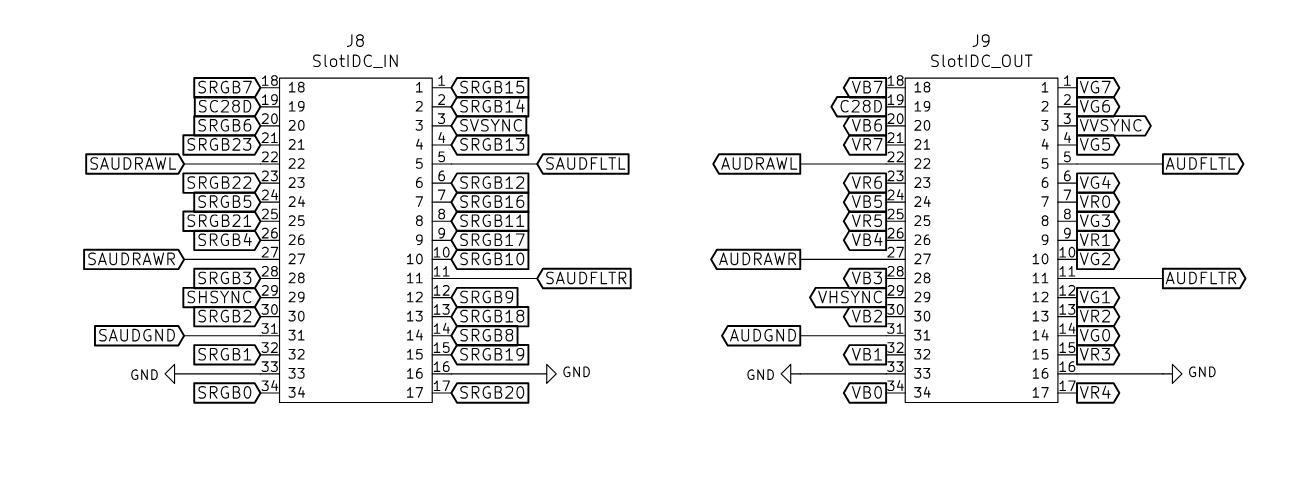

Hi, I’m sure it’s not compatible because I didn’t look at CV64 schematics when designing this back in the day. You’ll have to find CV64 schematics and compare them with ZZ9000 schematics (last page here: https://mntre.com/documentation/zz9000-manual-r2.pdf). Here’s a screenshot of that section:

image1295×485 47.1 KB

J8 is the pinout on the ZZ9000, J9 is the pinout on the ZZ9000CX (video slot card).
