alright i’ll go off on my own and when i give up/take a break i’ll just dump everything i did, full UART outputs n such.
thanks for the help so far

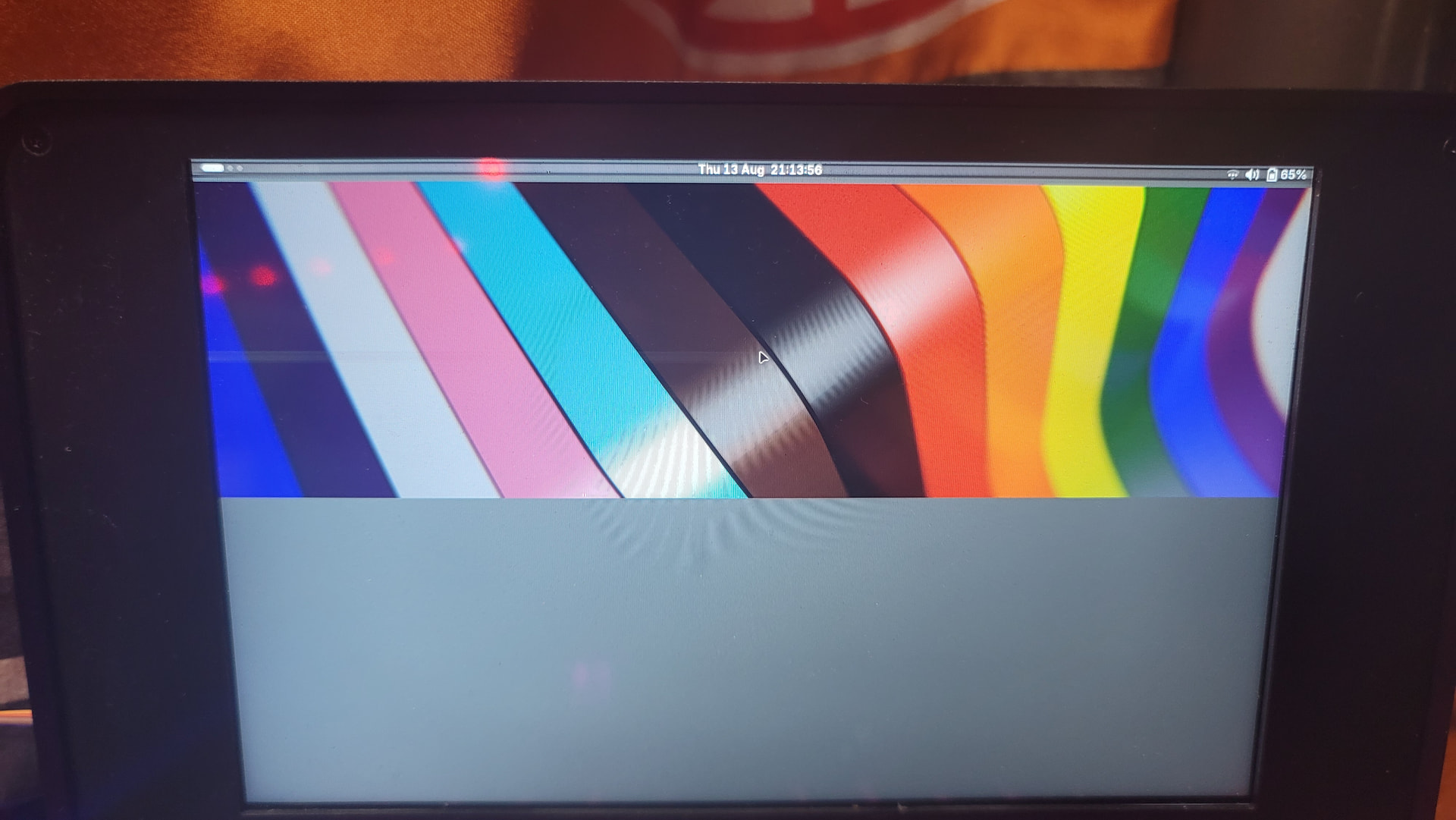

Hmm it seems like I’m having a similar issue on the regular mnt image after doing an apt update && apt full-upgrade today. Boot took forever because it couldn’t see BAT0 status. When it did boot yeah no battery monitoring and internal screen just froze grey logging into gnome. Kernel Linux 7.1.8-mnt-reform-arm64 and reform tools 1.88-1+reform20260803T142427Z+1.
If I’m reading this thread right I just need to upgrade the system controller firmware? I’m on 20251118 currently.
You are on Pocket Reform with A311D?
Did you read Important note about the new MNT Pocket Reform kernel and firmware updates 20260808 (updated)
1 Like
Was just coming back to post an update. Ooops, no admittedly I have not been on the forums much recently. My reforms have been working too smoothly I guess. I’m on the RK3588, but I just updated the controller from a backup SD card I keep taped to the machine for just such situations. We are good now. Thanks.
1 Like
i ended up giving up. gonna call it for today.
@Nebula-System @josch From reading the boot logs (thanks!), it appears that all the software/drivers are in place, and also the SC firmware, but DSI communication with the panel is not working (I’m not sure why yet). I’ll try to reproduce it ASAP tomorrow on our testing system here.
@Nebula-System in case you’re back on this earlier than I’m at work, it would be very useful for me to know if the display is also not working for you when booting our official Debian unstable image from a MicroSD card: https://source.mnt.re/reform/reform-system-image/-/jobs/23695/artifacts/raw/pocket-reform-system-a311d.img.gz
where’s the flash instructions again? i’ll try that tonight since that’s really easy
edit found the command I think: sudo bmaptool copy [link you provided] [device lsblk identity]
1 Like
Yep, that’s the correct command.

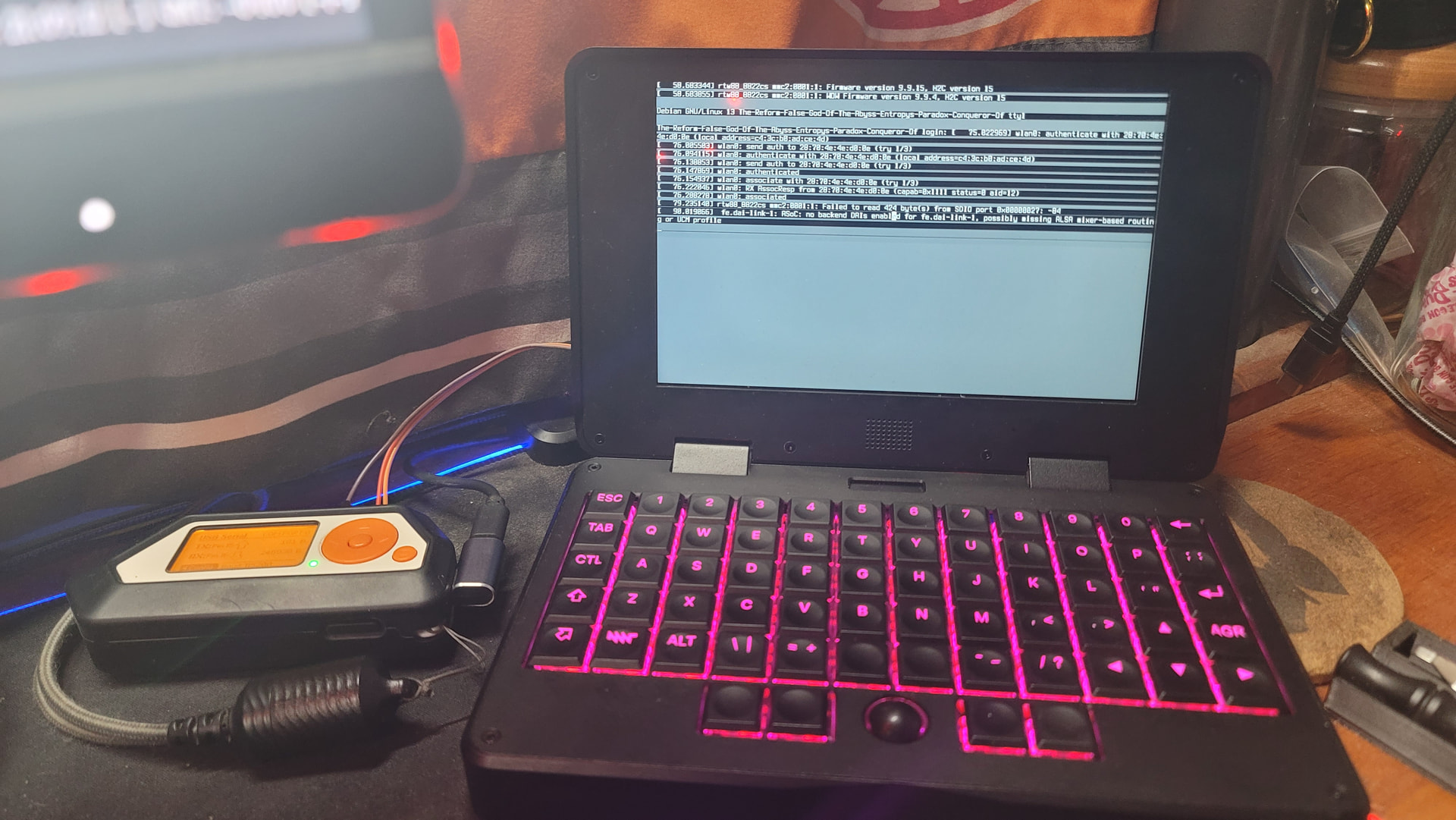

no dice, official image hangs. here’s UART from boot to hang.
[20:39:05.555] tio v2.7
[20:39:05.555] Press ctrl-t q to quit
[20:39:05.556] Connected
G12B:BL:6e7c85:2a3b91;FEAT:E0F83180:402000;POC:F;RCY:0;EMMC:0;READ:0;0.
bl2_stage_init 0x01
bl2_stage_init 0x81
hw id: 0x0000 - pwm id 0x01
bl2_stage_init 0xc1
bl2_stage_init 0x02
L0:00000000
L1:20000703
L2:00008067
L3:14000000
B2:00402000
B1:e0f83180
TE: 147503
BL2 Built : 19:23:21, Sep 18 2020. g12b g9fde858 - gongwei.chen@droid11-sz
Board ID = 12
Set A53 clk to 24M
Set A73 clk to 24M
Set clk81 to 24M
A53 clk: 1200 MHz
A73 clk: 1200 MHz
CLK81: 166.6M
smccc: 0002896a
eMMC boot @ 0
sw8 s
board id: 12
Load FIP HDR DDR from eMMC, src: 0x00010200, des: 0xfffd0000, size: 0x00004000, part: 0
Get wrong ddr fw magic! Error!!
fw parse done
PIEI prepare done
00000000
emmc switch 1 ok
00000000
emmc switch 2 ok
NO find ddr boot_info from eMMC
fastboot data verify
result: 255
Cfg max: 12, cur: 1. Board id: 255. Force loop cfg
LPDDR4 probe
LPDDR4_PHY_V_0_1_22-Built : 14:57:26, Sep 1 2020. g12b g3c95fed - gongwei.chen@droid11-sz
ddr clk to 1608MHz
00000000
emmc switch 0 ok
dmc_version 0001
Check phy result
INFO : End of CA training
INFO : End of initialization
INFO : Training has run successfully!
Check phy result
INFO : End of initialization
INFO : End of read enable training
INFO : End of fine write leveling
INFO : End of read dq deskew training
INFO : End of MPR read delay center optimization
INFO : End of Write leveling coarse delay
INFO : End of read delay center optimization
INFO : Training has run successfully!
Check phy result
INFO : End of initialization
INFO : End of MPR read delay center optimization
INFO : End of write delay center optimization
INFO : End of read delay center optimization
INFO : End of max read latency training
INFO : Training has run successfully!
1D training succeed
Check phy result
INFO : End of initialization
INFO : End of 2D read delay Voltage center optimization
INFO : End of 2D read delay Voltage center optimization
INFO : End of 2D write delay Voltage center optimization
INFO : End of 2D write delay Voltage center optimization
INFO : Training has run successfully!
soc_vref_reg_value 0x 0000001c 0000001d 0000001c 0000001d 0000001d 0000001b 0000001b 0000001e 0000001b 0000001c 0000001d 0000001b 0000001c 0000001b 0000001d 0000001c 0000001f 0000001d 0000001e 00000020 0000001d 0000001d 0000001d 0000001e 0000001e 0000001e 0000001d 0000001e 0000001d 0000001d 0000001e 0000001a dwc_ddrphy_apb_wr((0<<20)|(2<<16)|(0<<12)|(0xb0):0004
dram_vref_reg_value 0x 0000004d
2D training succeed
auto size-- 65535DDR cs0 size: 2048MB
DDR cs1 size: 2048MB
DMC_DDR_CTRL: 00e00024DDR size: 3928MB
cs0 DataBus test pass
cs1 DataBus test pass
cs0 AddrBus test pass
cs1 AddrBus test pass
non-sec scramble use zero key
ddr scramble enabled
100bdlr_step_size ps== 414
result report
boot times 0Enable ddr reg access
00000000
emmc switch 3 ok
Authentication key not yet programmed
get rpmb counter error 0x00000007
00000000
emmc switch 0 ok
Load FIP HDR from eMMC, src: 0x00010200, des: 0x01700000, size: 0x00004000, part: 0
Load BL3X from eMMC, src: 0x00078200, des: 0x01768000, size: 0x00109400, part: 0
0.0;M3 CHK:0;cm4_sp_mode 0
MVN_1=0x00000000
MVN_2=0x00000000
[Image: g12b_v1.1.3390-6ac5299 2019-09-26 14:10:05 luan.yuan@droid15-sz]
OPS=0x10
ring efuse init
chipver efuse init
29 0b 10 00 01 1e 1a 00 00 0f 36 38 34 55 30 50
[0.018961 Inits done]
secure task start!
high task start!
low task start!
run into bl31
NOTICE: BL31: v1.3(release):4fc40b1
NOTICE: BL31: Built : 15:58:17, May 22 2019
NOTICE: BL31: G12A normal boot!
ERROR: Error initializing runtime service opteed_fast
<debug_uart>
U-Boot 2024.04-dirty (Oct 11 2024 - 20:36:25 +0000)bpi-cm4-mnt-pocket-reform
Model: MNT Pocket Reform with BPI-CM4 Module
SoC: Amlogic Meson G12B (A311D) Revision 29:b (10:2)
DRAM: 1 GiB (effective 3.8 GiB)
Core: 404 devices, 30 uclasses, devicetree: separate
MMC: sd@ffe03000: 2, sd@ffe05000: 0, mmc@ffe07000: 1
Loading Environment from nowhere... OK
In: usbkbd,serial
Out: vidconsole,serial
Err: vidconsole,serial
gpio: pin periphs-banks73 (gpio 88) value is 0
gpio: pin periphs-banks73 (gpio 88) value is 1
Net: eth0: ethernet@ff3f0000
Hit any key to stop autoboot: 0
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
Found /extlinux/extlinux.conf
Retrieving file: /extlinux/extlinux.conf
U-Boot menu
1: Debian GNU/Linux forky/sid 7.1.7-mnt-reform-arm64
2: Debian GNU/Linux forky/sid 7.1.7-mnt-reform-arm64 (rescue target)
Enter choice: 1: Debian GNU/Linux forky/sid 7.1.7-mnt-reform-arm64
Retrieving file: /vmlinuz-7.1.7-mnt-reform-arm64
Retrieving file: /initrd.img-7.1.7-mnt-reform-arm64
append: ro no_console_suspend cryptomgr.notests plymouth.ignore-serial-consoles pcie_aspm=off ro no_console_suspend console=ttyAML0,115200 pci=pcie_bus_perf libata.force=noncq nvme_core.default_ps_max_latency_us=0 console=tty1 fbcon=rotate:3 fbcon=font:TER16x32 console=tty1
Retrieving file: /dtbs/7.1.7-mnt-reform-arm64/amlogic/meson-g12b-bananapi-cm4-mnt-pocket-reform.dtb
Moving Image from 0x8080000 to 0x8200000, end=a960000
## Flattened Device Tree blob at 08008000
Booting using the fdt blob at 0x8008000
Working FDT set to 8008000
Loading Ramdisk to 3d91c000, end 3ffff071 ... OK
Loading Device Tree to 000000003d90b000, end 000000003d91bae9 ... OK
Working FDT set to 3d90b000
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 7.1.7-mnt-reform-arm64 (debian-kernel@lists.debian.org) (aarch64-linux-gnu-gcc-15 (Debian 15.3.0-2) 15.3.0, GNU ld (GNU Binutils for Debian) 2.47) #1 SMP PREEMPT Debian 7.1.7-1+reform20260810T183147Z (2026-08-10
[ 0.000000] KASLR disabled due to lack of seed
[ 0.000000] Machine model: MNT Pocket Reform with BPI-CM4 Module
[ 0.000000] efi: UEFI not found.
[ 0.000000] Reserved memory: created CMA memory pool at 0x00000000e5000000, size 256 MiB
[ 0.000000] OF: reserved mem: initialized node linux,cma, compatible id shared-dma-pool
[ 0.000000] OF: reserved mem: 0x00000000e5000000..0x00000000f4ffffff (262144 KiB) map reusable linux,cma
[ 0.000000] OF: reserved mem: 0x0000000005000000..0x00000000052fffff (3072 KiB) nomap non-reusable secmon@5000000
[ 0.000000] OF: reserved mem: 0x0000000005300000..0x00000000072fffff (32768 KiB) nomap non-reusable secmon@5300000
[ 0.000000] NUMA: Faking a node at [mem 0x0000000000000000-0x00000000f4ffffff]
[ 0.000000] NODE_DATA(0) allocated [mem 0xe4809640-0xe480ce3f]
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.0 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.1
[ 0.000000] RME: RMM doesn't support RSI version 1.0. Supported range: 1.0-0.0
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000000000000-0x00000000f4ffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal empty
[ 0.000000] Device empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x0000000004ffffff]
[ 0.000000] node 0: [mem 0x0000000005000000-0x00000000072fffff]
[ 0.000000] node 0: [mem 0x0000000007300000-0x00000000f4ffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x00000000f4ffffff]
[ 0.000000] On node 0, zone DMA: 12288 pages in unavailable ranges
[ 0.000000] percpu: Embedded 36 pages/cpu s108056 r8192 d31208 u147456
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: ARM erratum 845719
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Kernel command line: ro no_console_suspend cryptomgr.notests plymouth.ignore-serial-consoles pcie_aspm=off ro no_console_suspend console=ttyAML0,115200 pci=pcie_bus_perf libata.force=noncq nvme_core.default_ps_max_latency_us=0 console=tty1 fbcon=rotate:3 fbcon=font:TER16x32 console=tty1
[ 0.000000] PCIe ASPM is disabled
[ 0.000000] printk: log buffer data + meta data: 131072 + 557056 = 688128 bytes
[ 0.000000] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[ 0.000000] software IO TLB: SWIOTLB bounce buffer size adjusted to 3MB
[ 0.000000] software IO TLB: area num 8.
[ 0.000000] software IO TLB: mapped [mem 0x00000000dfe00000-0x00000000e0200000] (4MB)
[ 0.000000] Fallback order for Node 0: 0
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 1003520
[ 0.000000] Policy zone: DMA
[ 0.000000] mem auto-init: stack:all(zero), heap alloc:on, heap free:off
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=6, Nodes=1
[ 0.000000] ftrace: allocating 55396 entries in 218 pages
[ 0.000000] ftrace: allocated 218 pages with 5 groups
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=512 to nr_cpu_ids=6.
[ 0.000000] Trampoline variant of Tasks RCU enabled.
[ 0.000000] Rude variant of Tasks RCU enabled.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=6
[ 0.000000] RCU Tasks: Setting shift to 3 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=6.
[ 0.000000] RCU Tasks Rude: Setting shift to 3 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=6.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GIC: Using split EOI/Deactivate mode
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.000000] arch_timer: cp15 timer running at 24.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000001] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.000759] Console: colour dummy device 80x25
[ 0.000776] printk: legacy console [tty1] enabled
[ 0.002091] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[ 0.002119] pid_max: default: 32768 minimum: 301
[ 0.005277] landlock: Up and running.
[ 0.005293] Yama: disabled by default; enable with sysctl kernel.yama.*
[ 0.005582] AppArmor: AppArmor initialized
[ 0.005660] TOMOYO Linux initialized
[ 0.006177] LSM support for eBPF active
[ 0.007847] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.007885] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.009290] VFS: Finished mounting rootfs on nullfs
[ 0.016023] rcu: Hierarchical SRCU implementation.
[ 0.016102] rcu: Max phase no-delay instances is 1000.
[ 0.016432] Timer migration: 1 hierarchy levels; 8 children per group; 1 crossnode level
[ 0.020849] EFI services will not be available.
[ 0.021547] smp: Bringing up secondary CPUs ...
[ 0.022587] Detected VIPT I-cache on CPU1
[ 0.022813] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.024579] CPU features: detected: Spectre-v2
[ 0.024596] CPU features: detected: Spectre-v4
[ 0.024601] CPU features: detected: Spectre-BHB
[ 0.024607] CPU features: detected: ARM erratum 858921
[ 0.024617] Detected VIPT I-cache on CPU2
[ 0.024755] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.024776] arch_timer: CPU2: Trapping CNTVCT access
[ 0.024788] CPU2: Booted secondary processor 0x0000000100 [0x410fd092]
[ 0.025897] Detected VIPT I-cache on CPU3
[ 0.026000] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.026010] arch_timer: CPU3: Trapping CNTVCT access
[ 0.026018] CPU3: Booted secondary processor 0x0000000101 [0x410fd092]
[ 0.027042] Detected VIPT I-cache on CPU4
[ 0.027146] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.027156] arch_timer: CPU4: Trapping CNTVCT access
[ 0.027165] CPU4: Booted secondary processor 0x0000000102 [0x410fd092]
[ 0.028240] Detected VIPT I-cache on CPU5
[ 0.028346] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.028356] arch_timer: CPU5: Trapping CNTVCT access
[ 0.028364] CPU5: Booted secondary processor 0x0000000103 [0x410fd092]
[ 0.028484] smp: Brought up 1 node, 6 CPUs
[ 0.028675] SMP: Total of 6 processors activated.
[ 0.028687] CPU: All CPU(s) started at EL2
[ 0.028724] CPU features: detected: 32-bit EL0 Support
[ 0.028738] CPU features: detected: 32-bit EL1 Support
[ 0.028753] CPU features: detected: CRC32 instructions
[ 0.028775] CPU features: detected: PMUv3
[ 0.028857] alternatives: applying system-wide alternatives
[ 0.053220] node 0 deferred pages initialised in 20ms
[ 0.053295] Memory: 3547496K/4014080K available (18816K kernel code, 5154K rwdata, 11428K rodata, 3776K init, 912K bss, 198988K reserved, 262144K cma-reserved)
[ 0.054830] devtmpfs: initialized
[ 0.065904] posixtimers hash table entries: 4096 (order: 4, 65536 bytes, linear)
[ 0.066007] futex hash table entries: 2048 (131072 bytes on 1 NUMA nodes, total 128 KiB, linear).
[ 0.069245] 22688 pages in range for non-PLT usage
[ 0.069260] 514208 pages in range for PLT usage
[ 0.073924] DMI: not present or invalid.
[ 0.077078] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.078598] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.078651] audit: initializing netlink subsys (disabled)
[ 0.078876] audit: type=2000 audit(0.076:1): state=initialized audit_enabled=0 res=1
[ 0.081567] thermal_sys: Registered thermal governor 'fair_share'
[ 0.081576] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.081592] thermal_sys: Registered thermal governor 'step_wise'
[ 0.081602] thermal_sys: Registered thermal governor 'user_space'
[ 0.081612] thermal_sys: Registered thermal governor 'power_allocator'
[ 0.081669] cpuidle: using governor ladder
[ 0.081713] cpuidle: using governor menu
[ 0.082032] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.082181] ASID allocator initialised with 65536 entries
[ 0.083813] Serial: AMBA PL011 UART driver
[ 0.089975] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.090400] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.090429] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ff600000/hdmi-tx@0
[ 0.090456] /soc/interrupt-controller@ffc01000: Fixed dependency cycle(s) with /soc/interrupt-controller@ffc01000
[ 0.090481] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 0.090515] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.090560] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.091637] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.092168] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.104354] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.104446] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.104478] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ff600000/hdmi-tx@0
[ 0.104806] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 0.104843] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.105002] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.106480] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.106539] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 0.106577] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.106763] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.113694] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /hdmi-connector
[ 0.113792] /hdmi-connector: Fixed dependency cycle(s) with /soc/bus@ff600000/hdmi-tx@0
[ 0.123617] HugeTLB: registered 1.00 GiB page size, pre-allocated 0 pages
[ 0.123643] HugeTLB: 0 KiB vmemmap can be freed for a 1.00 GiB page
[ 0.123656] HugeTLB: registered 32.0 MiB page size, pre-allocated 0 pages
[ 0.123666] HugeTLB: 0 KiB vmemmap can be freed for a 32.0 MiB page
[ 0.123676] HugeTLB: registered 2.00 MiB page size, pre-allocated 0 pages
[ 0.123686] HugeTLB: 0 KiB vmemmap can be freed for a 2.00 MiB page
[ 0.123696] HugeTLB: registered 64.0 KiB page size, pre-allocated 0 pages
[ 0.123705] HugeTLB: 0 KiB vmemmap can be freed for a 64.0 KiB page
[ 0.134131] ACPI: Interpreter disabled.
[ 0.136216] iommu: Default domain type: Translated
[ 0.136234] iommu: DMA domain TLB invalidation policy: strict mode
[ 0.145237] pps_core: LinuxPPS API ver. 1 registered
[ 0.145253] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.145273] PTP clock support registered
[ 0.145326] EDAC MC: Ver: 3.0.0
[ 0.145736] scmi_core: SCMI protocol bus registered
[ 0.147422] NetLabel: Initializing
[ 0.147438] NetLabel: domain hash size = 128
[ 0.147447] NetLabel: protocols = UNLABELED CIPSOv4 CALIPSO
[ 0.147502] NetLabel: unlabeled traffic allowed by default
[ 0.147679] vgaarb: loaded
[ 0.148096] clocksource: Switched to clocksource arch_sys_counter
[ 0.150337] VFS: Disk quotas dquot_6.6.0
[ 0.150508] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[ 0.151727] AppArmor: AppArmor Filesystem Enabled
[ 0.151887] pnp: PnP ACPI: disabled
[ 0.159414] NET: Registered PF_INET protocol family
[ 0.159698] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.164258] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
[ 0.164359] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.164442] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.164810] TCP bind hash table entries: 32768 (order: 8, 1048576 bytes, linear)
[ 0.165148] TCP: Hash tables configured (established 32768 bind 32768)
[ 0.165515] MPTCP token hash table entries: 4096 (order: 5, 98304 bytes, linear)
[ 0.165723] UDP hash table entries: 2048 (order: 5, 131072 bytes, linear)
[ 0.166053] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.166088] NET: Registered PF_XDP protocol family
[ 0.166112] PCI: CLS 0 bytes, default 64
[ 0.166386] Trying to unpack rootfs image as initramfs...
[ 0.183273] kvm [1]: nv: 570 coarse grained trap handlers
[ 0.183484] kvm [1]: nv: 710 fine grained trap handlers
[ 0.183842] kvm [1]: IPA Size Limit: 40 bits
[ 0.185768] kvm [1]: vgic interrupt IRQ9
[ 0.185822] kvm [1]: Hyp nVHE mode initialized successfully
[ 0.189787] Initialise system trusted keyrings
[ 0.189878] Key type blacklist registered
[ 0.190103] workingset: timestamp_bits=42 (anon: 38) max_order=20 bucket_order=0 (anon: 0)
[ 0.195369] fuse: init (API version 7.45)
[ 0.196233] integrity: Platform Keyring initialized
[ 0.196269] integrity: Machine keyring initialized
[ 0.196337] Key type asymmetric registered
[ 0.196347] Asymmetric key parser 'x509' registered
[ 0.196642] alg: self-tests disabled
[ 0.196967] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 244)
[ 0.197120] io scheduler mq-deadline registered
[ 0.201852] irq_meson_gpio: 100 to 8 gpio interrupt mux initialized
[ 0.216128] ledtrig-cpu: registered to indicate activity on CPUs
[ 0.234496] soc soc0: Amlogic Meson G12B (A311D) Revision 29:b (10:2) Detected
[ 0.240161] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled
[ 0.243151] Serial: AMBA driver
[ 0.244381] ff803000.serial: ttyAML0 at MMIO 0xff803000 (irq = 14, base_baud = 1500000) is a meson_uart
[ 0.244437] printk: legacy console [ttyAML0] enabled
[ 0.814135] Freeing initrd memory: 39820K
[ 0.823625] ffd24000.serial: ttyAML6 at MMIO 0xffd24000 (irq = 15, base_baud = 1500000) is a meson_uart
[ 1.588724] serial serial0: tty port ttyAML6 registered
[ 1.594208] msm_serial: driver initialized
[ 1.598320] SuperH (H)SCI(F) driver initialized
[ 1.606949] mousedev: PS/2 mouse device common for all mice
[ 1.614389] meson-sm: secure-monitor enabled
[ 1.620809] NET: Registered PF_INET6 protocol family
[ 1.622275] Segment Routing with IPv6
[ 1.623793] RPL Segment Routing with IPv6
[ 1.627837] In-situ OAM (IOAM) with IPv6
[ 1.631735] mip6: Mobile IPv6
[ 1.634639] NET: Registered PF_PACKET protocol family
[ 1.639802] mpls_gso: MPLS GSO support
[ 1.652881] registered taskstats version 1
[ 1.653134] Loading compiled-in X.509 certificates
[ 1.682037] Loaded X.509 cert 'Build time autogenerated kernel key: 716a4694ca92d3bc289b9085cb014cd669bb7811'
[ 1.695854] Demotion targets for Node 0: null
[ 1.696585] Key type .fscrypt registered
[ 1.698491] Key type fscrypt-provisioning registered
[ 1.745495] Key type encrypted registered
[ 1.745549] AppArmor: AppArmor sha256 policy hashing enabled
[ 1.749594] ima: No TPM chip found, activating TPM-bypass!
[ 1.754993] ima: Allocated hash algorithm: sha256
[ 1.759873] ima: No architecture policies found
[ 1.764260] evm: Initialising EVM extended attributes:
[ 1.769289] evm: security.selinux
[ 1.772693] evm: security.SMACK64 (disabled)
[ 1.776831] evm: security.SMACK64EXEC (disabled)
[ 1.781429] evm: security.SMACK64TRANSMUTE (disabled)
[ 1.786488] evm: security.SMACK64MMAP (disabled)
[ 1.791043] evm: security.apparmor
[ 1.794418] evm: security.ima
[ 1.797364] evm: security.capability
[ 1.800917] evm: HMAC attrs: 0x1
[ 1.826816] meson-pcie fc000000.pcie: host bridge /soc/pcie@fc000000 ranges:
[ 1.828286] meson-pcie fc000000.pcie: IO 0x00fc600000..0x00fc6fffff -> 0x0000000000
[ 1.836412] meson-pcie fc000000.pcie: MEM 0x00fc700000..0x00fdffffff -> 0x00fc700000
[ 1.844710] meson-pcie fc000000.pcie: iATU: unroll T, 4 ob, 4 ib, align 64K, limit 4G
[ 1.948107] meson-pcie fc000000.pcie: PCIe Gen.2 x1 link up
[ 1.948459] meson-pcie fc000000.pcie: PCI host bridge to bus 0000:00
[ 1.954394] pci_bus 0000:00: root bus resource [bus 00-ff]
[ 1.959844] pci_bus 0000:00: root bus resource [io 0x0000-0xfffff]
[ 1.966081] pci_bus 0000:00: root bus resource [mem 0xfc700000-0xfdffffff]
[ 1.972953] pci 0000:00:00.0: [16c3:abcd] type 01 class 0x060400 PCIe Root Port
[ 1.980217] pci 0000:00:00.0: ROM [mem 0x00000000-0x0000ffff pref]
[ 1.986367] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 1.991563] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff]
[ 1.997627] pci 0000:00:00.0: bridge window [mem 0x00000000-0x000fffff]
[ 2.004390] pci 0000:00:00.0: bridge window [mem 0x00000000-0x000fffff pref]
[ 2.011613] pci 0000:00:00.0: supports D1
[ 2.015568] pci 0000:00:00.0: PME# supported from D0 D1 D3hot D3cold
[ 2.025510] pci 0000:01:00.0: [c0a9:5421] type 00 class 0x010802 PCIe Endpoint
[ 2.029207] pci 0000:01:00.0: BAR 0 [mem 0x00000000-0x00003fff 64bit]
[ 2.036100] pci 0000:01:00.0: 4.000 Gb/s available PCIe bandwidth, limited by 5.0 GT/s PCIe x1 link at 0000:00:00.0 (capable of 63.012 Gb/s with 16.0 GT/s PCIe x4 link)
[ 2.050722] pci 0000:00:00.0: bridge window [mem 0xfc700000-0xfc7fffff]: assigned
[ 2.057964] pci 0000:00:00.0: ROM [mem 0xfc800000-0xfc80ffff pref]: assigned
[ 2.064999] pci 0000:01:00.0: BAR 0 [mem 0xfc700000-0xfc703fff 64bit]: assigned
[ 2.072278] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 2.077450] pci 0000:00:00.0: bridge window [mem 0xfc700000-0xfc7fffff]
[ 2.084215] pci_bus 0000:00: resource 4 [io 0x0000-0xfffff]
[ 2.089840] pci_bus 0000:00: resource 5 [mem 0xfc700000-0xfdffffff]
[ 2.096079] pci_bus 0000:01: resource 1 [mem 0xfc700000-0xfc7fffff]
[ 2.102325] pci 0000:00:00.0: Max Payload Size set to 256/ 256 (was 256), Max Read Rq 256
[ 2.110765] pci 0000:01:00.0: Max Payload Size set to 256/ 512 (was 128), Max Read Rq 256
[ 2.119357] pcieport 0000:00:00.0: PME: Signaling with IRQ 21
[ 2.125148] pcieport 0000:00:00.0: AER: enabled with IRQ 21
[ 2.137770] clk: Disabling unused clocks
[ 2.137983] PM: genpd: Disabling unused power domains
[ 2.138562] meson-gx-mmc ffe07000.mmc: allocated mmc-pwrseq
[ 2.185005] Freeing unused kernel memory: 3776K
[ 2.231416] Checked W+X mappings: passed, no W+X pages found
[ 2.231484] Run /init as init process
[ 2.250004] mmc1: new HS200 MMC card at address 0001
[ 2.251297] mmcblk1: mmc1:0001 AJTD4R 14.6 GiB
[ 2.256249] mmcblk1: p1
[ 2.257095] mmcblk1boot0: mmc1:0001 AJTD4R 4.00 MiB
[ 2.263910] mmcblk1boot1: mmc1:0001 AJTD4R 4.00 MiB
[ 2.268458] mmcblk1rpmb: mmc1:0001 AJTD4R 4.00 MiB, chardev (237:0)
[ 3.292609] spidev@0 enforce active low on GPIO handle
[ 3.305780] cpufreq: cpufreq_policy_online: CPU2: Running at unlisted initial frequency: 999999 kHz, changing to: 1000000 kHz
[ 3.392394] dwc3-meson-g12a ffe09000.usb: USB2 ports: 2
[ 3.392436] dwc3-meson-g12a ffe09000.usb: USB3 ports: 0
[ 3.397150] meson-gx-mmc ffe05000.mmc: Got CD GPIO
[ 3.414073] mc: Linux media interface: v0.10
[ 3.433366] meson-vrtc ff8000a8.rtc: registered as rtc1
[ 3.495435] panfrost ffe40000.gpu: clock rate = 24000000
[ 3.495521] panfrost ffe40000.gpu: error -ENODEV: _opp_set_regulators: no regulator (mali) found
[ 3.504440] Key type psk registered
[ 3.512133] panfrost ffe40000.gpu: mali-g52 id 0x7212 major 0x0 minor 0x0 status 0x0
[ 3.515050] panfrost ffe40000.gpu: features: 00000000,00000df7, issues: 00000000,00000400
[ 3.523261] panfrost ffe40000.gpu: Features: L2:0x07110206 Shader:0x00000000 Tiler:0x00000809 Mem:0x1 MMU:0x00002830 AS:0xff JS:0x7
[ 3.523759] debugfs: 'ff800280.cec' already exists in 'regmap'
[ 3.538163] videodev: Linux video capture interface: v2.00
[ 3.541463] Registered IR keymap rc-cec
[ 3.552434] panfrost ffe40000.gpu: shader_present=0x3 l2_present=0x1
[ 3.552579] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 3.557849] meson8b-dwmac ff3f0000.ethernet: IRQ eth_wake_irq not found
[ 3.562341] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 3.568574] meson8b-dwmac ff3f0000.ethernet: IRQ sfty not found
[ 3.575648] meson-drm ff900000.vpu: CVBS Output connector not available
[ 3.581466] meson8b-dwmac ff3f0000.ethernet: PTP uses main clock
[ 3.586883] mmc0: new high speed SDXC card at address 0001
[ 3.588171] nvme nvme0: pci function 0000:01:00.0
[ 3.592640] panfrost ffe40000.gpu: [drm] Using Transparent Hugepage
[ 3.593141] rc rc0: meson_g12a_ao_cec as /devices/platform/soc/ff800000.bus/ff800280.cec/rc/rc0
[ 3.593231] input: meson_g12a_ao_cec as /devices/platform/soc/ff800000.bus/ff800280.cec/rc/rc0/input0
[ 3.595567] meson8b-dwmac ff3f0000.ethernet: User ID: 0x11, Synopsys ID: 0x37
[ 3.599579] nvme 0000:01:00.0: enabling device (0000 -> 0002)
[ 3.604076] meson8b-dwmac ff3f0000.ethernet: DWMAC1000
[ 3.621594] mmcblk0: mmc0:0001 ASTC 116 GiB
[ 3.628163] meson8b-dwmac ff3f0000.ethernet: DMA HW capability register supported
[ 3.628168] meson8b-dwmac ff3f0000.ethernet: Active PHY interface: GMII/MII (0)
[ 3.637279] mmcblk0: p1 p2
[ 3.640181] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 3.641029] meson8b-dwmac ff3f0000.ethernet: RX Checksum Offload Engine supported
[ 3.643511] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 3.643827] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 3.656243] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 3.657804] meson8b-dwmac ff3f0000.ethernet: COE Type 2
[ 3.657812] meson8b-dwmac ff3f0000.ethernet: TX Checksum insertion supported
[ 3.657815] meson8b-dwmac ff3f0000.ethernet: Wake-Up On Lan supported
[ 3.657881] meson8b-dwmac ff3f0000.ethernet: Normal descriptors
[ 3.665802] [drm] Initialized panfrost 1.6.0 for ffe40000.gpu on minor 0
[ 3.666957] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 3.667007] meson-drm ff900000.vpu: CVBS Output connector not available
[ 3.667848] meson8b-dwmac ff3f0000.ethernet: Ring mode enabled
[ 3.667857] meson8b-dwmac ff3f0000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[ 3.674229] rtc-pcf8523 1-0068: registered as rtc0
[ 3.684391] nvme nvme0: missing or invalid SUBNQN field.
[ 3.686997] rtc-pcf8523 1-0068: setting system clock to 2026-08-14T00:53:52 UTC (1786668832)
[ 3.688277] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 3.688947] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 3.689310] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 3.693912] mdio_bus mdio_mux-0.0: MDIO device at address 0 is missing.
[ 3.767864] usbcore: registered new interface driver usbfs
[ 3.822989] usbcore: registered new interface driver hub
[ 3.828230] usbcore: registered new device driver usb
[ 3.870047] hwmon hwmon2: temp1_input not attached to any thermal zone
[ 3.871165] hwmon hwmon2: temp2_input not attached to any thermal zone
[ 3.877680] hwmon hwmon2: temp3_input not attached to any thermal zone
[ 3.884126] hwmon hwmon2: temp9_input not attached to any thermal zone
[ 3.890479] nvme nvme0: passthrough uses implicit buffer lengths
[ 3.923677] nvme nvme0: allocated 32 MiB host memory buffer (8 segments).
[ 3.957218] nvme nvme0: 6/0/0 default/read/poll queues
[ 3.985406] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 3.992805] meson_vdec: module is from the staging directory, the quality is unknown, you have been warned.
[ 3.996239] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 4.023576] dwc2 ff400000.usb: supply vusb_d not found, using dummy regulator
[ 4.029087] dwc2 ff400000.usb: supply vusb_a not found, using dummy regulator
[ 4.029811] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.035320] dwc2 ff400000.usb: EPs: 7, dedicated fifos, 712 entries in SPRAM
[ 4.038317] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.051776] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.084162] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.088802] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.089263] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 4.096757] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.101649] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 1
[ 4.117356] meson-gx-mmc ffe03000.mmc: allocated mmc-pwrseq
[ 4.118338] xhci-hcd xhci-hcd.1.auto: hcc params 0x0228fe64 hci version 0x110 quirks 0x0000808000000010
[ 4.119737] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.123972] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.133114] xhci-hcd xhci-hcd.1.auto: irq 41, io mem 0xff500000
[ 4.138668] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.145658] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 4.163517] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 2
[ 4.171172] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed
[ 4.177805] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 7.01
[ 4.180141] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.185866] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.186204] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.195702] usb usb1: Product: xHCI Host Controller
[ 4.203538] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.210678] usb usb1: Manufacturer: Linux 7.1.7-mnt-reform-arm64 xhci-hcd
[ 4.222643] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.224437] usb usb1: SerialNumber: xhci-hcd.1.auto
[ 4.224903] hub 1-0:1.0: USB hub found
[ 4.231541] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.236767] hub 1-0:1.0: 2 ports detected
[ 4.241614] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.288190] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.292680] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.300798] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.319470] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 4.319506] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.322836] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 7.01
[ 4.327829] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.335711] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.335715] usb usb2: Product: xHCI Host Controller
[ 4.335717] usb usb2: Manufacturer: Linux 7.1.7-mnt-reform-arm64 xhci-hcd
[ 4.335748] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.342642] usb usb2: SerialNumber: xhci-hcd.1.auto
[ 4.343032] hub 2-0:1.0: USB hub found
[ 4.376132] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.376648] hub 2-0:1.0: 1 port detected
[ 4.386718] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.398782] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.414796] meson-gx-mmc ffe03000.mmc: card claims to support voltages below defined range
[ 4.417710] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.423600] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.430018] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.465983] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.470572] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.478596] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.494080] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.494519] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.496978] mmc2: new UHS-I speed SDR104 SDIO card at address 0001
[ 4.501019] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.540914] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.545470] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.553683] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.568150] usb 1-2: new high-speed USB device number 2 using xhci-hcd
[ 4.573497] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.574980] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.581592] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.612248] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.616779] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.625005] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.643763] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.644223] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.650696] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.684288] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.688825] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.697042] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.704410] usb 1-2: New USB device found, idVendor=0424, idProduct=2412, bcdDevice= b.b2
[ 4.712695] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.713394] usb 1-2: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[ 4.719328] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.733008] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.764252] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.768795] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.777012] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.786112] hub 1-2:1.0: USB hub found
[ 4.789062] hub 1-2:1.0: 2 ports detected
[ 4.794165] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.798972] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.805443] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.805880] usbcore: registered new device driver onboard-usb-dev
[ 4.836252] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.840849] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.848941] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.866714] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.867157] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.873670] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.904848] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.909412] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.917693] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.935854] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 4.936311] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.942800] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.972273] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.976824] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.985123] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.002178] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.002683] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.009112] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.040290] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.044875] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.053283] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.069651] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.070148] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.072176] usb 1-2.1: new high-speed USB device number 3 using xhci-hcd
[ 5.076611] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.112309] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.116871] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.125153] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.142061] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.142583] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.149012] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.180154] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.184631] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.188607] usb 1-2.1: New USB device found, idVendor=0451, idProduct=8142, bcdDevice= 1.00
[ 5.193123] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.200480] usb 1-2.1: New USB device strings: Mfr=0, Product=0, SerialNumber=1
[ 5.200493] usb 1-2.1: SerialNumber: 0C010851A4CD
[ 5.207110] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.227238] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.233891] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.264288] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.266082] hub 1-2.1:1.0: USB hub found
[ 5.268753] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.272537] hub 1-2.1:1.0: 4 ports detected
[ 5.281047] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.304414] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.306494] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.311349] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.344291] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.348837] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.357126] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.375757] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.376302] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.382747] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.416306] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.420896] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.429284] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.444225] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.444755] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.448191] usb 1-2.2: new full-speed USB device number 4 using xhci-hcd
[ 5.451182] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.492296] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.496865] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.505284] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.522095] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.522587] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.529041] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.560142] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.561924] usb 1-2.2: New USB device found, idVendor=1209, idProduct=6d07, bcdDevice= 0.01
[ 5.564737] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.572689] usb 1-2.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 5.581421] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.587757] usb 1-2.2: Product: Pocket Reform System Controller 2.0
[ 5.587767] usb 1-2.2: Manufacturer: MNT
[ 5.587775] usb 1-2.2: SerialNumber: DE635441932A1F34
[ 5.620010] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.620353] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.626958] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.657390] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.662244] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.670303] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.688183] usb 1-2.1.3: new full-speed USB device number 5 using xhci-hcd
[ 5.688377] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.696201] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.702005] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.732151] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.738224] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.745029] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.761451] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.761927] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.768409] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.796307] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.800801] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.809240] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.826212] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.827469] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.833162] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.864161] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.869459] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.877130] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.892467] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.892891] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.894669] usb 1-2.1.3: New USB device found, idVendor=1209, idProduct=6d06, bcdDevice= 0.01
[ 5.899411] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.907874] usb 1-2.1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 5.921904] usb 1-2.1.3: Product: Pocket Reform Input 2.0
[ 5.927274] usb 1-2.1.3: Manufacturer: MNT
[ 5.931346] usb 1-2.1.3: SerialNumber: DE62549203897A2C
[ 5.940178] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.947155] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.955080] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.971581] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 5.972019] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.978524] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.012170] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.016803] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.025099] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.037266] hid: raw HID events driver (C) Jiri Kosina
[ 6.044031] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.047172] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.051046] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.057963] usb 1-2.1.4: new high-speed USB device number 6 using xhci-hcd
[ 6.084171] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.088700] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.097113] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.108141] random: crng init done
[ 6.110360] usbcore: registered new interface driver usbhid
[ 6.114060] usbhid: USB HID core driver
[ 6.114484] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.124592] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.130404] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.149945] input: MNT Pocket Reform Input 2.0 Keyboard as /devices/platform/soc/ffe09000.usb/ff500000.usb/xhci-hcd.1.auto/usb1/1-2/1-2.1/1-2.1.3/1-2.1.3:1.0/0003:1209:6D06.0001/input/input1
[ 6.157280] usb 1-2.1.4: New USB device found, idVendor=2c7c, idProduct=0801, bcdDevice= 5.04
[ 6.160163] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.160533] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.161357] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.169778] usb 1-2.1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 6.187540] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.196279] usb 1-2.1.4: Product: RM520N-GL
[ 6.196292] usb 1-2.1.4: Manufacturer: Quectel
[ 6.196300] usb 1-2.1.4: SerialNumber: d999e14b
[ 6.196719] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.229332] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.260981] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.265516] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.273727] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.294100] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.294545] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.301037] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.332272] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.336774] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.341361] input: MNT Pocket Reform Input 2.0 Mouse as /devices/platform/soc/ffe09000.usb/ff500000.usb/xhci-hcd.1.auto/usb1/1-2/1-2.1/1-2.1.3/1-2.1.3:1.0/0003:1209:6D06.0001/input/input2
[ 6.345007] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.361313] input: MNT Pocket Reform Input 2.0 as /devices/platform/soc/ffe09000.usb/ff500000.usb/xhci-hcd.1.auto/usb1/1-2/1-2.1/1-2.1.3/1-2.1.3:1.0/0003:1209:6D06.0001/input/input3
[ 6.382065] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.386768] hid-generic 0003:1209:6D06.0001: input,hidraw0: USB HID v1.11 Keyboard [MNT Pocket Reform Input 2.0] on usb-xhci-hcd.1.auto-2.1.3/input0
[ 6.391960] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.411778] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.444222] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.448786] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.456961] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.472999] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.473394] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.479937] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.512226] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.516720] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.525088] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.545788] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.546228] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.552729] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.584918] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.589453] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.597734] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.618658] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.619122] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.625622] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.656259] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.660803] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.669157] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.688008] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.688651] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.694972] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.728452] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.733080] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.739530] meson8b-dwmac ff3f0000.ethernet end0: renamed from eth0
[ 6.741445] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.773012] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.773650] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.780008] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.813439] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.818133] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.826988] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.847046] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.847541] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.854070] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.885876] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.890571] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.898668] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.913218] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.913783] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.920212] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.948293] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.953046] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.961244] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.985274] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 6.985747] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.992252] meson-drm ff900000.vpu: CVBS Output connector not available
[ 7.024461] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 7.029186] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 7.037437] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 7.059928] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 7.060541] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 7.066961] meson-drm ff900000.vpu: CVBS Output connector not available
[ 7.101095] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 7.105832] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 7.114015] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 7.143481] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 7.144034] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 7.150485] meson-drm ff900000.vpu: CVBS Output connector not available
[ 7.168655] SPI driver mnt_sc has no spi_device_id for mntre,system-controller
[ 7.170335] mnt_sc spi0.0: MNT System Controller v4
[ 7.182682] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 7.187410] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 7.195544] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 7.216912] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_probe] start...
[ 7.218559] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 0 1)
[ 7.226797] mnt_sc spi0.0: mntsc: couldn't parse response: err undf
[ 7.293808] reform2_lpc: loading out-of-tree module taints kernel.
[ 7.294360] reform2_lpc: module verification failed: signature and/or required key missing - tainting kernel
[ 7.329176] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 8 0)
[ 7.333047] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_probe] jdi_panel_add done.
[ 7.337258] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_probe] done.
[ 7.345007] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 7.350045] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 7.356640] meson-drm ff900000.vpu: CVBS Output connector not available
[ 7.392595] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 7.397112] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 7.405147] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 7.413904] [drm] Initialized meson 1.0.0 for ff900000.vpu on minor 1
[ 7.421269] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 0
[ 7.428201] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 7.435856] meson-drm ff900000.vpu: [drm] kms: can't enable cloning when we probably wanted to.
[ 7.520146] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_prepare] prepared: 0
[ 7.520165] panel-mnt-pocket-reform ffd07000.dsi.0: [display] init in prepare...
[ 7.520170] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_power_on] panel version: 0
[ 7.624130] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_init] enabled: 0 prepared: 0
[ 7.645140] meson-dw-mipi-dsi ffd07000.dsi: Timeout during read operation
[ 7.645157] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_detect_version] read register 12a: 0x0
[ 7.645164] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_detect_version] panel not ready (-110).
[ 7.645171] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_detect_version] detected panel_version: 2
[ 7.645176] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_power_on] panel version: 2
[ 7.645190] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 0 0)
[ 7.752118] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 0 1)
[ 7.876102] meson-dw-mipi-dsi ffd07000.dsi: failed to write command FIFO
[ 7.897117] meson-dw-mipi-dsi ffd07000.dsi: failed to write command FIFO
[ 7.918115] meson-dw-mipi-dsi ffd07000.dsi: failed to write command FIFO
[ 7.939135] meson-dw-mipi-dsi ffd07000.dsi: failed to write command FIFO
[ 7.960105] meson-dw-mipi-dsi ffd07000.dsi: failed to write command FIFO
[ 7.981104] meson-dw-mipi-dsi ffd07000.dsi: failed to write command FIFO
[ 8.002114] meson-dw-mipi-dsi ffd07000.dsi: failed to write command FIFO
[ 8.023115] meson-dw-mipi-dsi ffd07000.dsi: failed to write command FIFO
[ 8.043159] meson-dw-mipi-dsi ffd07000.dsi: failed to write command FIFO
[ 8.064136] meson-dw-mipi-dsi ffd07000.dsi: failed to write command FIFO
[ 8.085131] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.106138] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.127147] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.148110] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.169117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.190129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.211141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.232110] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.253119] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.274130] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.295139] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.316103] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.337124] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.358130] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.379143] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.400104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.421123] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.442129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.463140] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.484105] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.505121] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.526128] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.547140] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.568103] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.589119] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.609140] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.630129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.651146] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.672108] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.693116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.714129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.735146] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.756108] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.777116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.798129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.819153] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.840110] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.861116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.882129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.903147] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.924108] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.945117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.966129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 8.987148] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.008108] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.029116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.050128] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.071146] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.092107] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.113116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.134129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.155145] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.176108] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.197118] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.218127] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.239147] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.260107] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.281115] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.302127] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.323146] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.344117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.365116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.386129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.407147] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.428107] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.449116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.470129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.491148] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.512108] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.533116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.554129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.575146] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.596108] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.617116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.638130] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.659146] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.680108] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.701117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.722129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.743144] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.764108] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.785116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.806129] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.826158] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.847145] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.868104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.889124] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.910134] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.931139] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.952104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.973116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 9.994133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.015139] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.036102] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.057116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.078134] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.099142] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.120104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.141116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.162135] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.183142] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.204104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.225117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.246134] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.267140] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.288104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.309117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.330134] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.351141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.372105] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.393117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.414134] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.435141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.456104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.477117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.498133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.519141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.540104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.561127] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.582134] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.603141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.624104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.645117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.666134] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.687140] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.708104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.729116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.750131] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.771139] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.792104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.813115] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.834131] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.855153] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.876105] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.897117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.918134] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.939141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.960104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 10.981116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.002133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.023141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.044104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.065126] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.086133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.107141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.128103] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.149116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.170138] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.191142] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.212104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.233117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.254132] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.275141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.296110] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.317117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.338133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.359141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.380104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.401118] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.422133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.443141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.464104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.485116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.506132] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.527139] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.548104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.569116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.590134] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.611141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.632102] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.653117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.674133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.695142] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.716103] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.737117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.758133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.779141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.800103] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.821116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.842133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.863140] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.884124] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.905128] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.926133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.947141] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.968104] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 11.989116] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 12.010133] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 12.030151] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 12.051163] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 12.072112] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.093123] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.114136] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.135148] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.156103] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.177102] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.198113] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.219120] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.240101] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.261101] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.282112] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.303117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.324097] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.345105] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.366107] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.387119] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.408098] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.429101] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.450112] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.471117] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.492096] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.513105] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.534107] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.555119] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.576098] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.597100] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.618112] meson-dw-mipi-dsi ffd07000.dsi: failed to get available write payload FIFO
[ 12.618118] panel-mnt-pocket-reform ffd07000.dsi.0: [display v2] sent tables OK
[ 12.639115] meson-dw-mipi-dsi ffd07000.dsi: failed to get available command FIFO
[ 12.639121] panel-mnt-pocket-reform ffd07000.dsi.0: [display v2] failed to set exit sleep mode: -110
[ 12.742619] panel-mnt-pocket-reform ffd07000.dsi.0: [display v2] OK
[ 12.742626] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 8 1)
[ 12.746038] mnt_sc spi0.0: enabling PWM display backlight control by MNT System Controller.
[ 12.746309] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_enable] enabled: 0 prepared: 1
[ 12.765882] Console: switching to colour frame buffer device 120x37
[ 14.603947] meson-drm ff900000.vpu: [drm] fb0: mesondrmfb frame buffer device
[ 14.605295] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 2
[ 14.619292] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 14.619332] meson-drm ff900000.vpu: [drm] kms: can't enable cloning when we probably wanted to.
[ 14.640629] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 2
[ 14.644490] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 14.652139] meson-drm ff900000.vpu: [drm] kms: can't enable cloning when we probably wanted to.
[ 15.445998] mmcblk0: p1 p2
as of writing been waiting ~30 seconds. tried hitting enter and esc on Pocket Reform, no dice, hitting enter in UART terminal gives nothing, doesn’t accept input period.
atp i feel like maybe i bumped a ribbon cable when stuffing those fiddly UART cables on the pins, gonna check that next. will report back if reseating ribbon cables fixes it or not.
ok wow shockingly, it seems to have fixed the official image. there was a pop up that said the root file system had an error. here’s UART from reboot post-reseating to login
G12B:BL:6e7c85:2a3b91;FEAT:E0F83180:402000;POC:F;RCY:0;EMMC:0;READ:0;0.
bl2_stage_init 0x01
bl2_stage_init 0x81
hw id: 0x0000 - pwm id 0x01
bl2_stage_init 0xc1
bl2_stage_init 0x02
L0:00000000
L1:20000703
L2:00008067
L3:14000000
B2:00402000
B1:e0f83180
TE: 144279
BL2 Built : 19:23:21, Sep 18 2020. g12b g9fde858 - gongwei.chen@droid11-sz
Board ID = 12
Set A53 clk to 24M
Set A73 clk to 24M
Set clk81 to 24M
A53 clk: 1200 MHz
A73 clk: 1200 MHz
CLK81: 166.6M
smccc: 00027cd3
eMMC boot @ 0
sw8 s
board id: 12
Load FIP HDR DDR from eMMC, src: 0x00010200, des: 0xfffd0000, size: 0x00004000, part: 0
Get wrong ddr fw magic! Error!!
fw parse done
PIEI prepare done
00000000
emmc switch 1 ok
00000000
emmc switch 2 ok
NO find ddr boot_info from eMMC
fastboot data verify
result: 255
Cfg max: 12, cur: 1. Board id: 255. Force loop cfg
LPDDR4 probe
LPDDR4_PHY_V_0_1_22-Built : 14:57:26, Sep 1 2020. g12b g3c95fed - gongwei.chen@droid11-sz
ddr clk to 1608MHz
00000000
emmc switch 0 ok
dmc_version 0001
Check phy result
INFO : End of CA training
INFO : End of initialization
INFO : Training has run successfully!
Check phy result
INFO : End of initialization
INFO : End of read enable training
INFO : End of fine write leveling
INFO : End of read dq deskew training
INFO : End of MPR read delay center optimization
INFO : End of Write leveling coarse delay
INFO : End of read delay center optimization
INFO : Training has run successfully!
Check phy result
INFO : End of initialization
INFO : End of MPR read delay center optimization
INFO : End of write delay center optimization
INFO : End of read delay center optimization
INFO : End of max read latency training
INFO : Training has run successfully!
1D training succeed
Check phy result
INFO : End of initialization
INFO : End of 2D read delay Voltage center optimization
INFO : End of 2D read delay Voltage center optimization
INFO : End of 2D write delay Voltage center optimization
INFO : End of 2D write delay Voltage center optimization
INFO : Training has run successfully!
soc_vref_reg_value 0x 0000001b 0000001c 0000001b 0000001c 0000001c 0000001b 0000001b 0000001e 0000001a 0000001b 0000001c 0000001a 0000001c 0000001b 0000001c 0000001c 0000001e 0000001c 0000001d 0000001f 0000001c 0000001d 0000001c 0000001d 0000001e 0000001e 0000001d 0000001e 0000001c 0000001c 0000001e 0000001a dwc_ddrphy_apb_wr((0<<20)|(2<<16)|(0<<12)|(0xb0):0004
dram_vref_reg_value 0x 0000004e
2D training succeed
auto size-- 65535DDR cs0 size: 2048MB
DDR cs1 size: 2048MB
DMC_DDR_CTRL: 00e00024DDR size: 3928MB
cs0 DataBus test pass
cs1 DataBus test pass
cs0 AddrBus test pass
cs1 AddrBus test pass
non-sec scramble use zero key
ddr scramble enabled
100bdlr_step_size ps== 420
result report
boot times 0Enable ddr reg access
00000000
emmc switch 3 ok
Authentication key not yet programmed
get rpmb counter error 0x00000007
00000000
emmc switch 0 ok
Load FIP HDR from eMMC, src: 0x00010200, des: 0x01700000, size: 0x00004000, part: 0
Load BL3X from eMMC, src: 0x00078200, des: 0x01768000, size: 0x00109400, part: 0
0.0;M3 CHK:0;cm4_sp_mode 0
MVN_1=0x00000000
MVN_2=0x00000000
[Image: g12b_v1.1.3390-6ac5299 2019-09-26 14:10:05 luan.yuan@droid15-sz]
OPS=0x10
ring efuse init
chipver efuse init
29 0b 10 00 01 1e 1a 00 00 0f 36 38 34 55 30 50
[0.018961 Inits done]
secure task start!
high task start!
low task start!
run into bl31
NOTICE: BL31: v1.3(release):4fc40b1
NOTICE: BL31: Built : 15:58:17, May 22 2019
NOTICE: BL31: G12A normal boot!
ERROR: Error initializing runtime service opteed_fast
<debug_uart>
U-Boot 2024.04-dirty (Oct 11 2024 - 20:36:25 +0000)bpi-cm4-mnt-pocket-reform
Model: MNT Pocket Reform with BPI-CM4 Module
SoC: Amlogic Meson G12B (A311D) Revision 29:b (10:2)
DRAM: 1 GiB (effective 3.8 GiB)
Core: 404 devices, 30 uclasses, devicetree: separate
MMC: sd@ffe03000: 2, sd@ffe05000: 0, mmc@ffe07000: 1
Loading Environment from nowhere... OK
In: usbkbd,serial
Out: vidconsole,serial
Err: vidconsole,serial
gpio: pin periphs-banks73 (gpio 88) value is 0
gpio: pin periphs-banks73 (gpio 88) value is 1
Net: eth0: ethernet@ff3f0000
Hit any key to stop autoboot: 0
switch to partitions #0, OK
mmc0 is current device
Scanning mmc 0:1...
Found /extlinux/extlinux.conf
Retrieving file: /extlinux/extlinux.conf
U-Boot menu
1: Debian GNU/Linux forky/sid 7.1.7-mnt-reform-arm64
2: Debian GNU/Linux forky/sid 7.1.7-mnt-reform-arm64 (rescue target)
Enter choice: 1: Debian GNU/Linux forky/sid 7.1.7-mnt-reform-arm64
Retrieving file: /vmlinuz-7.1.7-mnt-reform-arm64
Retrieving file: /initrd.img-7.1.7-mnt-reform-arm64
append: ro no_console_suspend cryptomgr.notests plymouth.ignore-serial-consoles pcie_aspm=off ro no_console_suspend console=ttyAML0,115200 pci=pcie_bus_perf libata.force=noncq nvme_core.default_ps_max_latency_us=0 console=tty1 fbcon=rotate:3 fbcon=font:TER16x32 console=tty1
Retrieving file: /dtbs/7.1.7-mnt-reform-arm64/amlogic/meson-g12b-bananapi-cm4-mnt-pocket-reform.dtb
Moving Image from 0x8080000 to 0x8200000, end=a960000
## Flattened Device Tree blob at 08008000
Booting using the fdt blob at 0x8008000
Working FDT set to 8008000
Loading Ramdisk to 3d91c000, end 3ffff071 ... OK
Loading Device Tree to 000000003d90b000, end 000000003d91bae9 ... OK
Working FDT set to 3d90b000
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 7.1.7-mnt-reform-arm64 (debian-kernel@lists.debian.org) (aarch64-linux-gnu-gcc-15 (Debian 15.3.0-2) 15.3.0, GNU ld (GNU Binutils for Debian) 2.47) #1 SMP PREEMPT Debian 7.1.7-1+reform20260810T183147Z (2026-08-10
[ 0.000000] KASLR disabled due to lack of seed
[ 0.000000] Machine model: MNT Pocket Reform with BPI-CM4 Module
[ 0.000000] efi: UEFI not found.
[ 0.000000] Reserved memory: created CMA memory pool at 0x00000000e5000000, size 256 MiB
[ 0.000000] OF: reserved mem: initialized node linux,cma, compatible id shared-dma-pool
[ 0.000000] OF: reserved mem: 0x00000000e5000000..0x00000000f4ffffff (262144 KiB) map reusable linux,cma
[ 0.000000] OF: reserved mem: 0x0000000005000000..0x00000000052fffff (3072 KiB) nomap non-reusable secmon@5000000
[ 0.000000] OF: reserved mem: 0x0000000005300000..0x00000000072fffff (32768 KiB) nomap non-reusable secmon@5300000
[ 0.000000] NUMA: Faking a node at [mem 0x0000000000000000-0x00000000f4ffffff]
[ 0.000000] NODE_DATA(0) allocated [mem 0xe4809640-0xe480ce3f]
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.0 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.1
[ 0.000000] RME: RMM doesn't support RSI version 1.0. Supported range: 1.0-0.0
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000000000000-0x00000000f4ffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal empty
[ 0.000000] Device empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x0000000004ffffff]
[ 0.000000] node 0: [mem 0x0000000005000000-0x00000000072fffff]
[ 0.000000] node 0: [mem 0x0000000007300000-0x00000000f4ffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x00000000f4ffffff]
[ 0.000000] On node 0, zone DMA: 12288 pages in unavailable ranges
[ 0.000000] percpu: Embedded 36 pages/cpu s108056 r8192 d31208 u147456
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: ARM erratum 845719
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Kernel command line: ro no_console_suspend cryptomgr.notests plymouth.ignore-serial-consoles pcie_aspm=off ro no_console_suspend console=ttyAML0,115200 pci=pcie_bus_perf libata.force=noncq nvme_core.default_ps_max_latency_us=0 console=tty1 fbcon=rotate:3 fbcon=font:TER16x32 console=tty1
[ 0.000000] PCIe ASPM is disabled
[ 0.000000] printk: log buffer data + meta data: 131072 + 557056 = 688128 bytes
[ 0.000000] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[ 0.000000] software IO TLB: SWIOTLB bounce buffer size adjusted to 3MB
[ 0.000000] software IO TLB: area num 8.
[ 0.000000] software IO TLB: mapped [mem 0x00000000dfe00000-0x00000000e0200000] (4MB)
[ 0.000000] Fallback order for Node 0: 0
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 1003520
[ 0.000000] Policy zone: DMA
[ 0.000000] mem auto-init: stack:all(zero), heap alloc:on, heap free:off
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=6, Nodes=1
[ 0.000000] ftrace: allocating 55396 entries in 218 pages
[ 0.000000] ftrace: allocated 218 pages with 5 groups
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=512 to nr_cpu_ids=6.
[ 0.000000] Trampoline variant of Tasks RCU enabled.
[ 0.000000] Rude variant of Tasks RCU enabled.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=6
[ 0.000000] RCU Tasks: Setting shift to 3 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=6.
[ 0.000000] RCU Tasks Rude: Setting shift to 3 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=6.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GIC: Using split EOI/Deactivate mode
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.000000] arch_timer: cp15 timer running at 24.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000001] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.000760] Console: colour dummy device 80x25
[ 0.000778] printk: legacy console [tty1] enabled
[ 0.002095] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[ 0.002124] pid_max: default: 32768 minimum: 301
[ 0.005282] landlock: Up and running.
[ 0.005298] Yama: disabled by default; enable with sysctl kernel.yama.*
[ 0.005587] AppArmor: AppArmor initialized
[ 0.005664] TOMOYO Linux initialized
[ 0.006182] LSM support for eBPF active
[ 0.007856] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.007894] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.009301] VFS: Finished mounting rootfs on nullfs
[ 0.016028] rcu: Hierarchical SRCU implementation.
[ 0.016108] rcu: Max phase no-delay instances is 1000.
[ 0.016450] Timer migration: 1 hierarchy levels; 8 children per group; 1 crossnode level
[ 0.020862] EFI services will not be available.
[ 0.021562] smp: Bringing up secondary CPUs ...
[ 0.022610] Detected VIPT I-cache on CPU1
[ 0.022837] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.024607] CPU features: detected: Spectre-v2
[ 0.024625] CPU features: detected: Spectre-v4
[ 0.024630] CPU features: detected: Spectre-BHB
[ 0.024636] CPU features: detected: ARM erratum 858921
[ 0.024647] Detected VIPT I-cache on CPU2
[ 0.024782] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.024802] arch_timer: CPU2: Trapping CNTVCT access
[ 0.024814] CPU2: Booted secondary processor 0x0000000100 [0x410fd092]
[ 0.025924] Detected VIPT I-cache on CPU3
[ 0.026026] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.026037] arch_timer: CPU3: Trapping CNTVCT access
[ 0.026045] CPU3: Booted secondary processor 0x0000000101 [0x410fd092]
[ 0.027073] Detected VIPT I-cache on CPU4
[ 0.027177] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.027187] arch_timer: CPU4: Trapping CNTVCT access
[ 0.027195] CPU4: Booted secondary processor 0x0000000102 [0x410fd092]
[ 0.028265] Detected VIPT I-cache on CPU5
[ 0.028370] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.028380] arch_timer: CPU5: Trapping CNTVCT access
[ 0.028388] CPU5: Booted secondary processor 0x0000000103 [0x410fd092]
[ 0.028510] smp: Brought up 1 node, 6 CPUs
[ 0.028701] SMP: Total of 6 processors activated.
[ 0.028713] CPU: All CPU(s) started at EL2
[ 0.028749] CPU features: detected: 32-bit EL0 Support
[ 0.028762] CPU features: detected: 32-bit EL1 Support
[ 0.028777] CPU features: detected: CRC32 instructions
[ 0.028800] CPU features: detected: PMUv3
[ 0.028906] alternatives: applying system-wide alternatives
[ 0.053303] node 0 deferred pages initialised in 20ms
[ 0.053378] Memory: 3547496K/4014080K available (18816K kernel code, 5154K rwdata, 11428K rodata, 3776K init, 912K bss, 198988K reserved, 262144K cma-reserved)
[ 0.054918] devtmpfs: initialized
[ 0.065993] posixtimers hash table entries: 4096 (order: 4, 65536 bytes, linear)
[ 0.066095] futex hash table entries: 2048 (131072 bytes on 1 NUMA nodes, total 128 KiB, linear).
[ 0.069309] 22688 pages in range for non-PLT usage
[ 0.069325] 514208 pages in range for PLT usage
[ 0.073986] DMI: not present or invalid.
[ 0.077140] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.078658] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.078708] audit: initializing netlink subsys (disabled)
[ 0.078932] audit: type=2000 audit(0.076:1): state=initialized audit_enabled=0 res=1
[ 0.081605] thermal_sys: Registered thermal governor 'fair_share'
[ 0.081614] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.081629] thermal_sys: Registered thermal governor 'step_wise'
[ 0.081640] thermal_sys: Registered thermal governor 'user_space'
[ 0.081649] thermal_sys: Registered thermal governor 'power_allocator'
[ 0.081707] cpuidle: using governor ladder
[ 0.081751] cpuidle: using governor menu
[ 0.082069] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.082220] ASID allocator initialised with 65536 entries
[ 0.083862] Serial: AMBA PL011 UART driver
[ 0.090020] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.090445] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.090475] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ff600000/hdmi-tx@0
[ 0.090501] /soc/interrupt-controller@ffc01000: Fixed dependency cycle(s) with /soc/interrupt-controller@ffc01000
[ 0.090525] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 0.090559] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.090604] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.091687] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.092224] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.104434] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.104527] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.104559] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ff600000/hdmi-tx@0
[ 0.104888] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 0.104925] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.105086] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.106574] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.106635] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 0.106672] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.106861] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.113816] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /hdmi-connector
[ 0.113916] /hdmi-connector: Fixed dependency cycle(s) with /soc/bus@ff600000/hdmi-tx@0
[ 0.123752] HugeTLB: registered 1.00 GiB page size, pre-allocated 0 pages
[ 0.123780] HugeTLB: 0 KiB vmemmap can be freed for a 1.00 GiB page
[ 0.123792] HugeTLB: registered 32.0 MiB page size, pre-allocated 0 pages
[ 0.123802] HugeTLB: 0 KiB vmemmap can be freed for a 32.0 MiB page
[ 0.123812] HugeTLB: registered 2.00 MiB page size, pre-allocated 0 pages
[ 0.123821] HugeTLB: 0 KiB vmemmap can be freed for a 2.00 MiB page
[ 0.123831] HugeTLB: registered 64.0 KiB page size, pre-allocated 0 pages
[ 0.123841] HugeTLB: 0 KiB vmemmap can be freed for a 64.0 KiB page
[ 0.134268] ACPI: Interpreter disabled.
[ 0.136329] iommu: Default domain type: Translated
[ 0.136348] iommu: DMA domain TLB invalidation policy: strict mode
[ 0.145239] pps_core: LinuxPPS API ver. 1 registered
[ 0.145256] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.145275] PTP clock support registered
[ 0.145328] EDAC MC: Ver: 3.0.0
[ 0.145740] scmi_core: SCMI protocol bus registered
[ 0.147422] NetLabel: Initializing
[ 0.147438] NetLabel: domain hash size = 128
[ 0.147447] NetLabel: protocols = UNLABELED CIPSOv4 CALIPSO
[ 0.147503] NetLabel: unlabeled traffic allowed by default
[ 0.147680] vgaarb: loaded
[ 0.148097] clocksource: Switched to clocksource arch_sys_counter
[ 0.150341] VFS: Disk quotas dquot_6.6.0
[ 0.150514] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[ 0.151739] AppArmor: AppArmor Filesystem Enabled
[ 0.151901] pnp: PnP ACPI: disabled
[ 0.159755] NET: Registered PF_INET protocol family
[ 0.159995] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.164455] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
[ 0.164553] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.164632] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.165004] TCP bind hash table entries: 32768 (order: 8, 1048576 bytes, linear)
[ 0.165349] TCP: Hash tables configured (established 32768 bind 32768)
[ 0.165736] MPTCP token hash table entries: 4096 (order: 5, 98304 bytes, linear)
[ 0.165942] UDP hash table entries: 2048 (order: 5, 131072 bytes, linear)
[ 0.166296] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.166329] NET: Registered PF_XDP protocol family
[ 0.166353] PCI: CLS 0 bytes, default 64
[ 0.166672] Trying to unpack rootfs image as initramfs...
[ 0.179695] kvm [1]: nv: 570 coarse grained trap handlers
[ 0.179907] kvm [1]: nv: 710 fine grained trap handlers
[ 0.180288] kvm [1]: IPA Size Limit: 40 bits
[ 0.182169] kvm [1]: vgic interrupt IRQ9
[ 0.182217] kvm [1]: Hyp nVHE mode initialized successfully
[ 0.193929] Initialise system trusted keyrings
[ 0.194029] Key type blacklist registered
[ 0.194323] workingset: timestamp_bits=42 (anon: 38) max_order=20 bucket_order=0 (anon: 0)
[ 0.199824] fuse: init (API version 7.45)
[ 0.200629] integrity: Platform Keyring initialized
[ 0.200667] integrity: Machine keyring initialized
[ 0.200758] Key type asymmetric registered
[ 0.200770] Asymmetric key parser 'x509' registered
[ 0.201122] alg: self-tests disabled
[ 0.201438] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 244)
[ 0.201595] io scheduler mq-deadline registered
[ 0.205848] irq_meson_gpio: 100 to 8 gpio interrupt mux initialized
[ 0.228268] ledtrig-cpu: registered to indicate activity on CPUs
[ 0.247212] soc soc0: Amlogic Meson G12B (A311D) Revision 29:b (10:2) Detected
[ 0.252940] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled
[ 0.256137] Serial: AMBA driver
[ 0.257555] ff803000.serial: ttyAML0 at MMIO 0xff803000 (irq = 14, base_baud = 1500000) is a meson_uart
[ 0.257619] printk: legacy console [ttyAML0] enabled
[ 0.814066] Freeing initrd memory: 39820K
[ 0.826139] ffd24000.serial: ttyAML6 at MMIO 0xffd24000 (irq = 15, base_baud = 1500000) is a meson_uart
[ 1.601868] serial serial0: tty port ttyAML6 registered
[ 1.607425] msm_serial: driver initialized
[ 1.611609] SuperH (H)SCI(F) driver initialized
[ 1.620065] mousedev: PS/2 mouse device common for all mice
[ 1.627317] meson-sm: secure-monitor enabled
[ 1.633771] NET: Registered PF_INET6 protocol family
[ 1.635345] Segment Routing with IPv6
[ 1.636780] RPL Segment Routing with IPv6
[ 1.640786] In-situ OAM (IOAM) with IPv6
[ 1.644720] mip6: Mobile IPv6
[ 1.647597] NET: Registered PF_PACKET protocol family
[ 1.652794] mpls_gso: MPLS GSO support
[ 1.665958] registered taskstats version 1
[ 1.666232] Loading compiled-in X.509 certificates
[ 1.695557] Loaded X.509 cert 'Build time autogenerated kernel key: 716a4694ca92d3bc289b9085cb014cd669bb7811'
[ 1.709540] Demotion targets for Node 0: null
[ 1.710241] Key type .fscrypt registered
[ 1.712189] Key type fscrypt-provisioning registered
[ 1.759540] Key type encrypted registered
[ 1.759592] AppArmor: AppArmor sha256 policy hashing enabled
[ 1.763642] ima: No TPM chip found, activating TPM-bypass!
[ 1.769066] ima: Allocated hash algorithm: sha256
[ 1.773890] ima: No architecture policies found
[ 1.778296] evm: Initialising EVM extended attributes:
[ 1.783335] evm: security.selinux
[ 1.786625] evm: security.SMACK64 (disabled)
[ 1.790871] evm: security.SMACK64EXEC (disabled)
[ 1.795464] evm: security.SMACK64TRANSMUTE (disabled)
[ 1.800496] evm: security.SMACK64MMAP (disabled)
[ 1.805085] evm: security.apparmor
[ 1.808464] evm: security.ima
[ 1.811407] evm: security.capability
[ 1.814964] evm: HMAC attrs: 0x1
[ 1.840886] meson-pcie fc000000.pcie: host bridge /soc/pcie@fc000000 ranges:
[ 1.842335] meson-pcie fc000000.pcie: IO 0x00fc600000..0x00fc6fffff -> 0x0000000000
[ 1.850591] meson-pcie fc000000.pcie: MEM 0x00fc700000..0x00fdffffff -> 0x00fc700000
[ 1.858760] meson-pcie fc000000.pcie: iATU: unroll T, 4 ob, 4 ib, align 64K, limit 4G
[ 1.960113] meson-pcie fc000000.pcie: PCIe Gen.2 x1 link up
[ 1.960476] meson-pcie fc000000.pcie: PCI host bridge to bus 0000:00
[ 1.966400] pci_bus 0000:00: root bus resource [bus 00-ff]
[ 1.971847] pci_bus 0000:00: root bus resource [io 0x0000-0xfffff]
[ 1.978084] pci_bus 0000:00: root bus resource [mem 0xfc700000-0xfdffffff]
[ 1.984960] pci 0000:00:00.0: [16c3:abcd] type 01 class 0x060400 PCIe Root Port
[ 1.992220] pci 0000:00:00.0: ROM [mem 0x00000000-0x0000ffff pref]
[ 1.998363] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 2.003569] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff]
[ 2.009639] pci 0000:00:00.0: bridge window [mem 0x00000000-0x000fffff]
[ 2.016394] pci 0000:00:00.0: bridge window [mem 0x00000000-0x000fffff pref]
[ 2.023611] pci 0000:00:00.0: supports D1
[ 2.027570] pci 0000:00:00.0: PME# supported from D0 D1 D3hot D3cold
[ 2.037453] pci 0000:01:00.0: [c0a9:5421] type 00 class 0x010802 PCIe Endpoint
[ 2.041208] pci 0000:01:00.0: BAR 0 [mem 0x00000000-0x00003fff 64bit]
[ 2.048114] pci 0000:01:00.0: 4.000 Gb/s available PCIe bandwidth, limited by 5.0 GT/s PCIe x1 link at 0000:00:00.0 (capable of 63.012 Gb/s with 16.0 GT/s PCIe x4 link)
[ 2.062763] pci 0000:00:00.0: bridge window [mem 0xfc700000-0xfc7fffff]: assigned
[ 2.069961] pci 0000:00:00.0: ROM [mem 0xfc800000-0xfc80ffff pref]: assigned
[ 2.076976] pci 0000:01:00.0: BAR 0 [mem 0xfc700000-0xfc703fff 64bit]: assigned
[ 2.084279] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 2.089454] pci 0000:00:00.0: bridge window [mem 0xfc700000-0xfc7fffff]
[ 2.096213] pci_bus 0000:00: resource 4 [io 0x0000-0xfffff]
[ 2.101843] pci_bus 0000:00: resource 5 [mem 0xfc700000-0xfdffffff]
[ 2.108082] pci_bus 0000:01: resource 1 [mem 0xfc700000-0xfc7fffff]
[ 2.114326] pci 0000:00:00.0: Max Payload Size set to 256/ 256 (was 256), Max Read Rq 256
[ 2.122763] pci 0000:01:00.0: Max Payload Size set to 256/ 512 (was 128), Max Read Rq 256
[ 2.131381] pcieport 0000:00:00.0: PME: Signaling with IRQ 21
[ 2.137140] pcieport 0000:00:00.0: AER: enabled with IRQ 21
[ 2.149846] clk: Disabling unused clocks
[ 2.150057] PM: genpd: Disabling unused power domains
[ 2.150629] meson-gx-mmc ffe07000.mmc: allocated mmc-pwrseq
[ 2.198430] Freeing unused kernel memory: 3776K
[ 2.245057] Checked W+X mappings: passed, no W+X pages found
[ 2.245125] Run /init as init process
[ 2.259549] mmc1: new HS200 MMC card at address 0001
[ 2.260931] mmcblk1: mmc1:0001 AJTD4R 14.6 GiB
[ 2.265753] mmcblk1: p1
[ 2.266637] mmcblk1boot0: mmc1:0001 AJTD4R 4.00 MiB
[ 2.273586] mmcblk1boot1: mmc1:0001 AJTD4R 4.00 MiB
[ 2.277947] mmcblk1rpmb: mmc1:0001 AJTD4R 4.00 MiB, chardev (237:0)
[ 3.268219] meson-gx-mmc ffe05000.mmc: Got CD GPIO
[ 3.307862] cpufreq: cpufreq_policy_online: CPU2: Running at unlisted initial frequency: 999999 kHz, changing to: 1000000 kHz
[ 3.346284] spidev@0 enforce active low on GPIO handle
[ 3.346590] dwc3-meson-g12a ffe09000.usb: USB2 ports: 2
[ 3.348031] mc: Linux media interface: v0.10
[ 3.351095] dwc3-meson-g12a ffe09000.usb: USB3 ports: 0
[ 3.400080] Key type psk registered
[ 3.415626] videodev: Linux video capture interface: v2.00
[ 3.422197] mmc0: new high speed SDXC card at address 0001
[ 3.429297] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 3.444618] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 3.459609] meson8b-dwmac ff3f0000.ethernet: IRQ eth_wake_irq not found
[ 3.460478] mmcblk0: mmc0:0001 ASTC 116 GiB
[ 3.460641] meson8b-dwmac ff3f0000.ethernet: IRQ sfty not found
[ 3.468839] panfrost ffe40000.gpu: clock rate = 24000000
[ 3.470810] meson8b-dwmac ff3f0000.ethernet: PTP uses main clock
[ 3.476040] panfrost ffe40000.gpu: error -ENODEV: _opp_set_regulators: no regulator (mali) found
[ 3.482725] meson8b-dwmac ff3f0000.ethernet: User ID: 0x11, Synopsys ID: 0x37
[ 3.483517] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 3.492690] panfrost ffe40000.gpu: mali-g52 id 0x7212 major 0x0 minor 0x0 status 0x0
[ 3.496448] meson-vrtc ff8000a8.rtc: registered as rtc1
[ 3.498118] meson8b-dwmac ff3f0000.ethernet: DWMAC1000
[ 3.503382] panfrost ffe40000.gpu: features: 00000000,00000df7, issues: 00000000,00000400
[ 3.503427] meson8b-dwmac ff3f0000.ethernet: DMA HW capability register supported
[ 3.511064] panfrost ffe40000.gpu: Features: L2:0x07110206 Shader:0x00000000 Tiler:0x00000809 Mem:0x1 MMU:0x00002830 AS:0xff JS:0x7
[ 3.511072] panfrost ffe40000.gpu: shader_present=0x3 l2_present=0x1
[ 3.522310] nvme nvme0: pci function 0000:01:00.0
[ 3.529720] panfrost ffe40000.gpu: [drm] Using Transparent Hugepage
[ 3.532185] meson8b-dwmac ff3f0000.ethernet: Active PHY interface: GMII/MII (0)
[ 3.532196] meson8b-dwmac ff3f0000.ethernet: RX Checksum Offload Engine supported
[ 3.532201] meson8b-dwmac ff3f0000.ethernet: COE Type 2
[ 3.532205] meson8b-dwmac ff3f0000.ethernet: TX Checksum insertion supported
[ 3.532209] meson8b-dwmac ff3f0000.ethernet: Wake-Up On Lan supported
[ 3.532306] meson8b-dwmac ff3f0000.ethernet: Normal descriptors
[ 3.532311] meson8b-dwmac ff3f0000.ethernet: Ring mode enabled
[ 3.532315] meson8b-dwmac ff3f0000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[ 3.537083] nvme 0000:01:00.0: enabling device (0000 -> 0002)
[ 3.555582] meson_vdec: module is from the staging directory, the quality is unknown, you have been warned.
[ 3.636181] [drm] Initialized panfrost 1.6.0 for ffe40000.gpu on minor 0
[ 3.639252] nvme nvme0: missing or invalid SUBNQN field.
[ 3.654467] mmcblk0: p1 p2
[ 3.688706] debugfs: 'ff800280.cec' already exists in 'regmap'
[ 3.689979] Registered IR keymap rc-cec
[ 3.692981] rc rc0: meson_g12a_ao_cec as /devices/platform/soc/ff800000.bus/ff800280.cec/rc/rc0
[ 3.701797] input: meson_g12a_ao_cec as /devices/platform/soc/ff800000.bus/ff800280.cec/rc/rc0/input0
[ 3.709996] rtc-pcf8523 1-0068: registered as rtc0
[ 3.716925] rtc-pcf8523 1-0068: hctosys: unable to read the hardware clock
[ 3.757625] meson-gx-mmc ffe03000.mmc: allocated mmc-pwrseq
[ 3.786930] usbcore: registered new interface driver usbfs
[ 3.786988] usbcore: registered new interface driver hub
[ 3.792145] usbcore: registered new device driver usb
[ 3.804780] hwmon hwmon2: temp1_input not attached to any thermal zone
[ 3.805799] hwmon hwmon2: temp2_input not attached to any thermal zone
[ 3.812323] hwmon hwmon2: temp3_input not attached to any thermal zone
[ 3.818746] hwmon hwmon2: temp9_input not attached to any thermal zone
[ 3.825198] nvme nvme0: passthrough uses implicit buffer lengths
[ 3.850792] nvme nvme0: allocated 32 MiB host memory buffer (8 segments).
[ 3.884126] nvme nvme0: 6/0/0 default/read/poll queues
[ 4.017520] meson-gx-mmc ffe03000.mmc: card claims to support voltages below defined range
[ 4.032346] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.033722] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.040724] mdio_bus mdio_mux-0.0: MDIO device at address 0 is missing.
[ 4.042433] dwc2 ff400000.usb: supply vusb_d not found, using dummy regulator
[ 4.054149] dwc2 ff400000.usb: supply vusb_a not found, using dummy regulator
[ 4.060629] mmc2: new UHS-I speed SDR104 SDIO card at address 0001
[ 4.061361] dwc2 ff400000.usb: EPs: 7, dedicated fifos, 712 entries in SPRAM
[ 4.074327] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.084787] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.092365] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.105411] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.107816] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.118603] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 4.119752] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 1
[ 4.127534] xhci-hcd xhci-hcd.1.auto: hcc params 0x0228fe64 hci version 0x110 quirks 0x0000808000000010
[ 4.136149] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.136764] xhci-hcd xhci-hcd.1.auto: irq 40, io mem 0xff500000
[ 4.146804] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.152530] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 4.160952] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.165689] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 2
[ 4.168717] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.174621] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed
[ 4.174662] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.182418] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 7.01
[ 4.210485] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.216128] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.217675] usb usb1: Product: xHCI Host Controller
[ 4.217678] usb usb1: Manufacturer: Linux 7.1.7-mnt-reform-arm64 xhci-hcd
[ 4.227730] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.232323] usb usb1: SerialNumber: xhci-hcd.1.auto
[ 4.232746] hub 1-0:1.0: USB hub found
[ 4.239837] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.246964] hub 1-0:1.0: 2 ports detected
[ 4.255282] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.275339] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.308875] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.313421] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.321594] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.333433] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 4.334600] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.338816] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 7.01
[ 4.344817] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.353015] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.366796] usb usb2: Product: xHCI Host Controller
[ 4.371647] usb usb2: Manufacturer: Linux 7.1.7-mnt-reform-arm64 xhci-hcd
[ 4.378411] usb usb2: SerialNumber: xhci-hcd.1.auto
[ 4.383669] hub 2-0:1.0: USB hub found
[ 4.384128] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.387029] hub 2-0:1.0: 1 port detected
[ 4.397094] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.409059] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.421163] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.424400] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.456942] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.461497] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.469591] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.481662] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.484929] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.516901] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.521441] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.529664] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.541370] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.544815] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.572854] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.578076] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.580253] usb 1-2: new high-speed USB device number 2 using xhci-hcd
[ 4.585497] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.604877] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.607234] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.640232] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.645520] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.652916] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.667069] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.668438] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.700841] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.706158] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.713589] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.724428] usb 1-2: New USB device found, idVendor=0424, idProduct=2412, bcdDevice= b.b2
[ 4.729975] usb 1-2: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[ 4.743483] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.744908] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.776306] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.781241] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.789302] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.792639] hub 1-2:1.0: USB hub found
[ 4.801297] hub 1-2:1.0: 2 ports detected
[ 4.808825] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.811925] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.829377] usbcore: registered new device driver onboard-usb-dev
[ 4.844728] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.849294] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.857775] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.872078] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.873470] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.908291] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.912774] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.921241] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.935398] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.936797] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.972148] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.976695] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.985173] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.999754] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.001153] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.032184] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.036679] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.045182] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.058138] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.060127] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.092145] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.096643] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.100133] usb 1-2.1: new high-speed USB device number 3 using xhci-hcd
[ 5.105108] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.124794] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.126723] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.157395] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.162120] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.170814] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.185809] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.187202] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.212632] usb 1-2.1: New USB device found, idVendor=0451, idProduct=8142, bcdDevice= 1.00
[ 5.215373] usb 1-2.1: New USB device strings: Mfr=0, Product=0, SerialNumber=1
[ 5.222706] usb 1-2.1: SerialNumber: 0C010851A4CD
[ 5.222801] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.237582] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.245956] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.259222] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.260846] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.270643] hub 1-2.1:1.0: USB hub found
[ 5.271393] hub 1-2.1:1.0: 4 ports detected
[ 5.296304] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.300892] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.309301] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.323391] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.324805] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.356147] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.360661] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.369076] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.385521] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.386948] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.416451] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.421841] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.429447] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.445436] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.446798] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.472160] usb 1-2.2: new full-speed USB device number 4 using xhci-hcd
[ 5.480151] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.486199] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.493135] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.508745] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.510111] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.540971] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.546377] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.553854] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.569126] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.570494] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.579175] usb 1-2.2: New USB device found, idVendor=1209, idProduct=6d07, bcdDevice= 0.01
[ 5.585443] usb 1-2.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 5.592692] usb 1-2.2: Product: Pocket Reform System Controller 2.0
[ 5.598915] usb 1-2.2: Manufacturer: MNT
[ 5.602814] usb 1-2.2: SerialNumber: DE635441932A1F34
[ 5.604148] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.618762] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.626352] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.644715] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.646086] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.680174] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.685543] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.693116] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.696272] usb 1-2.1.3: new full-speed USB device number 5 using xhci-hcd
[ 5.712890] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.714926] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.744164] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.749428] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.757202] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.770054] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.772082] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.804148] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.808650] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.817086] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.832557] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.833930] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.872998] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.878515] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.886595] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.900116] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.901515] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.905783] usb 1-2.1.3: New USB device found, idVendor=1209, idProduct=6d06, bcdDevice= 0.01
[ 5.916599] usb 1-2.1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 5.924014] usb 1-2.1.3: Product: Pocket Reform Input 2.0
[ 5.929399] usb 1-2.1.3: Manufacturer: MNT
[ 5.929454] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.933453] usb 1-2.1.3: SerialNumber: DE62549203897A2C
[ 5.933786] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.957216] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.971896] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.973283] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.004306] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.009309] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.017269] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.033342] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.034748] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.068162] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.072809] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.073992] hid: raw HID events driver (C) Jiri Kosina
[ 6.081059] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.096289] usb 1-2.1.4: new high-speed USB device number 6 using xhci-hcd
[ 6.103131] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.108034] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.140290] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.145212] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.146432] usbcore: registered new interface driver usbhid
[ 6.153145] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.157852] usbhid: USB HID core driver
[ 6.165084] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.177559] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.189610] usb 1-2.1.4: New USB device found, idVendor=2c7c, idProduct=0801, bcdDevice= 5.04
[ 6.192706] usb 1-2.1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 6.200101] usb 1-2.1.4: Product: RM520N-GL
[ 6.200310] input: MNT Pocket Reform Input 2.0 Keyboard as /devices/platform/soc/ffe09000.usb/ff500000.usb/xhci-hcd.1.auto/usb1/1-2/1-2.1/1-2.1.3/1-2.1.3:1.0/0003:1209:6D06.0001/input/input1
[ 6.204231] usb 1-2.1.4: Manufacturer: Quectel
[ 6.224155] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.225584] usb 1-2.1.4: SerialNumber: d999e14b
[ 6.238312] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.248540] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.263735] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.265127] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.292291] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.296778] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.305209] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.319630] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.321023] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.356289] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.360770] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.369161] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.382464] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.384217] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.392332] input: MNT Pocket Reform Input 2.0 Mouse as /devices/platform/soc/ffe09000.usb/ff500000.usb/xhci-hcd.1.auto/usb1/1-2/1-2.1/1-2.1.3/1-2.1.3:1.0/0003:1209:6D06.0001/input/input2
[ 6.407727] input: MNT Pocket Reform Input 2.0 as /devices/platform/soc/ffe09000.usb/ff500000.usb/xhci-hcd.1.auto/usb1/1-2/1-2.1/1-2.1.3/1-2.1.3:1.0/0003:1209:6D06.0001/input/input3
[ 6.416181] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.423838] hid-generic 0003:1209:6D06.0001: input,hidraw0: USB HID v1.11 Keyboard [MNT Pocket Reform Input 2.0] on usb-xhci-hcd.1.auto-2.1.3/input0
[ 6.436421] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.455581] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.470005] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.471365] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.504197] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.508706] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.517019] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.532333] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.533697] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.564902] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.569366] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.577605] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.590153] meson8b-dwmac ff3f0000.ethernet end0: renamed from eth0
[ 6.590918] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.599088] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.632776] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.637390] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.645649] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.659345] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.660813] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.696842] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.701429] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.709738] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.724459] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.725842] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.756892] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.763629] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.769906] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.783635] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.785048] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.816201] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.820811] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.829248] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.844502] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.845882] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.860149] random: crng init done
[ 6.880642] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.885314] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.893525] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.909138] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.910521] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.941614] SPI driver mnt_sc has no spi_device_id for mntre,system-controller
[ 6.943294] mnt_sc spi0.0: MNT System Controller v4
[ 6.944173] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.959082] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.966496] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.982512] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_probe] start...
[ 6.984293] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 0 1)
[ 6.993045] mnt_sc spi0.0: mntsc: couldn't parse response: err undf
[ 7.000683] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 8 0)
[ 7.048272] mnt_sc spi0.0: mntsc: couldn't parse response: err undf
[ 7.065645] reform2_lpc: loading out-of-tree module taints kernel.
[ 7.066200] reform2_lpc: module verification failed: signature and/or required key missing - tainting kernel
[ 7.146187] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_probe] jdi_panel_add done.
[ 7.148803] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_probe] done.
[ 7.156955] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 7.163227] meson-drm ff900000.vpu: CVBS Output connector not available
[ 7.192175] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 7.196656] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 7.204955] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 7.213654] [drm] Initialized meson 1.0.0 for ff900000.vpu on minor 1
[ 7.220929] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 0
[ 7.227774] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 7.235415] meson-drm ff900000.vpu: [drm] kms: can't enable cloning when we probably wanted to.
[ 7.316140] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_prepare] prepared: 0
[ 7.316158] panel-mnt-pocket-reform ffd07000.dsi.0: [display] init in prepare...
[ 7.316162] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_power_on] panel version: 0
[ 7.420127] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_init] enabled: 0 prepared: 0
[ 7.421160] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_detect_version] read register 12a: 0xff
[ 7.421165] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_detect_version] detected panel_version: 2
[ 7.421169] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_power_on] panel version: 2
[ 7.421180] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 0 0)
[ 7.528136] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 0 1)
[ 7.688106] panel-mnt-pocket-reform ffd07000.dsi.0: [display v2] sent tables OK
[ 7.788132] panel-mnt-pocket-reform ffd07000.dsi.0: [display v2] OK
[ 7.788138] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 8 1)
[ 7.791504] mnt_sc spi0.0: enabling PWM display backlight control by MNT System Controller.
[ 7.791772] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_enable] enabled: 0 prepared: 1
[ 7.810747] Console: switching to colour frame buffer device 120x37
[ 7.937316] meson-drm ff900000.vpu: [drm] fb0: mesondrmfb frame buffer device
[ 7.938676] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 2
[ 7.952662] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 7.952710] meson-drm ff900000.vpu: [drm] kms: can't enable cloning when we probably wanted to.
[ 7.956987] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 2
[ 7.977187] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 7.977241] meson-drm ff900000.vpu: [drm] kms: can't enable cloning when we probably wanted to.
[ 22.205410] EXT4-fs (mmcblk0p2): orphan cleanup on readonly fs
[ 22.208841] EXT4-fs (mmcblk0p2): mounted filesystem 0d6aa7fc-29d7-54ef-b58d-d219ced3a9f7 ro with ordered data mode. Quota mode: none.
[ 22.410384] Not activating Mandatory Access Control as /sbin/tomoyo-init does not exist.
[ 22.870881] systemd[1]: System time advanced to built-in epoch: Thu 2026-07-23 20:31:52 CEST
[ 23.097749] systemd[1]: Inserted module 'autofs4'
[ 23.577654] systemd[1]: systemd 261.2-1 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +IPE +SMACK +SECCOMP +GCRYPT -GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 +KMOD +LIBCRYPTSETUP +LIBCRYPTSETUP_PLUGINS +LIBFDISK +PCRE2 +PWQUALITY +P11KIT +QRENCODE +TPM2 +BZIP2 +LZ4 +XZ +ZLIB +ZSTD +BPF_FRAMEWORK +BTF -XKBCOMMON -UTMP +LIBARCHIVE)
[ 23.616750] systemd[1]: Detected architecture arm64.
[ 23.652554] systemd[1]: Initializing machine ID from random generator.
[ 23.657009] systemd[1]: Installed transient '/etc/machine-id' file.
[ 23.667209] systemd[1]: Hostname set to <reform>.
[ 23.897554] systemd[1]: bpf-restrict-fs: Failed to load BPF object: No such process
[ 25.479137] systemd[1]: Queued start job for default target graphical.target.
[ 25.505559] systemd[1]: Created slice system-cups.slice - CUPS Slice.
[ 25.514628] systemd[1]: Created slice system-getty.slice - Slice /system/getty.
[ 25.524296] systemd[1]: Created slice system-modprobe.slice - Slice /system/modprobe.
[ 25.533366] systemd[1]: Created slice system-serial\x2dgetty.slice - Slice /system/serial-getty.
[ 25.542678] systemd[1]: Created slice system-systemd\x2dfsck.slice - Slice /system/systemd-fsck.
[ 25.551452] systemd[1]: Created slice user.slice - User and Session Slice.
[ 25.557494] systemd[1]: Started systemd-ask-password-console.path - Dispatch Password Requests to Console Directory Watch.
[ 25.569443] systemd[1]: Started systemd-ask-password-wall.path - Forward Password Requests to Wall Directory Watch.
[ 25.580170] systemd[1]: Set up automount proc-sys-fs-binfmt_misc.automount - Arbitrary Executable File Formats File System Automount Point.
[ 25.593416] systemd[1]: Expecting device dev-disk-by\x2dlabel-reformsdboot.device - /dev/disk/by-label/reformsdboot...
[ 25.604648] systemd[1]: Expecting device dev-ttyAML0.device - /dev/ttyAML0...
[ 25.611763] systemd[1]: Reached target imports.target - Image Downloads.
[ 25.618357] systemd[1]: Reached target nss-user-lookup.target - User and Group Name Lookups.
[ 25.626793] systemd[1]: Reached target slices.target - Slice Units.
[ 25.633065] systemd[1]: Reached target swap.target - Swaps.
[ 25.638787] systemd[1]: Listening on dm-event.socket - Device-mapper event daemon FIFOs.
[ 25.646864] systemd[1]: Listening on lvm2-lvmpolld.socket - LVM2 poll daemon socket.
[ 25.683635] systemd[1]: Listening on rpcbind.socket - RPCbind Server Activation Socket.
[ 25.696247] systemd[1]: Listening on systemd-ask-password.socket - Query the User Interactively for a Password.
[ 25.709873] systemd[1]: Listening on systemd-creds.socket - Credential Encryption/Decryption.
[ 25.722567] systemd[1]: Listening on systemd-factory-reset.socket - Factory Reset Management.
[ 25.731734] systemd[1]: Listening on systemd-hostnamed.socket - Hostname Service Socket.
[ 25.740108] systemd[1]: Listening on systemd-journald-dev-log.socket - Journal Socket (/dev/log).
[ 25.748901] systemd[1]: Listening on systemd-journald.socket - Journal Sockets.
[ 25.759653] systemd[1]: Listening on systemd-mute-console.socket - Console Output Muting Service Socket.
[ 25.768838] systemd[1]: Listening on systemd-udevd-control.socket - udev Control Socket.
[ 25.776796] systemd[1]: Listening on systemd-udevd-kernel.socket - udev Kernel Socket.
[ 25.784622] systemd[1]: Listening on systemd-udevd-varlink.socket - udev Varlink Socket.
[ 25.795269] systemd[1]: Mounting dev-hugepages.mount - Huge Pages File System...
[ 25.803495] systemd[1]: Mounting dev-mqueue.mount - POSIX Message Queue File System...
[ 25.832840] systemd[1]: Mounting sys-kernel-debug.mount - Kernel Debug File System...
[ 25.842126] systemd[1]: Mounting sys-kernel-tracing.mount - Kernel Trace File System...
[ 25.851500] systemd[1]: tmp.mount: x-systemd.graceful-option=usrquota specified, but option is not available, suppressing.
[ 25.864131] systemd[1]: Mounting tmp.mount - Temporary Directory /tmp...
[ 25.872354] systemd[1]: auth-rpcgss-module.service - Kernel Module supporting RPCSEC_GSS skipped, unmet condition check ConditionPathExists=/etc/krb5.keytab
[ 25.888108] systemd[1]: Starting blk-availability.service - Availability of block devices...
[ 25.901751] systemd[1]: Starting keyboard-setup.service - Set the console keyboard layout...
[ 25.913047] systemd[1]: Starting kmod-static-nodes.service - Create List of Static Device Nodes...
[ 25.923968] systemd[1]: Starting lvm2-monitor.service - Monitoring of LVM2 mirrors, snapshots etc. using dmeventd or progress polling...
[ 25.940921] systemd[1]: Starting modprobe@configfs.service - Load Kernel Module configfs...
[ 25.948914] systemd[1]: modprobe@drm.service - Load Kernel Module drm skipped, unmet condition check ConditionKernelModuleLoaded=!drm
[ 25.962406] systemd[1]: Starting modprobe@efi_pstore.service - Load Kernel Module efi_pstore...
[ 25.971476] systemd[1]: modprobe@fuse.service - Load Kernel Module fuse skipped, unmet condition check ConditionKernelModuleLoaded=!fuse
[ 25.985183] systemd[1]: Mounting sys-fs-fuse-connections.mount - FUSE Control File System...
[ 25.996690] systemd[1]: Starting modprobe@nvme_fabrics.service - Load Kernel Module nvme_fabrics...
[ 26.005710] systemd[1]: systemd-fsck-root.service - File System Check on Root Device skipped, unmet condition check ConditionPathExists=!/run/initramfs/fsck-root
[ 26.019847] systemd[1]: systemd-hibernate-clear.service - Clear Stale Hibernate Storage Info skipped, unmet condition check ConditionPathExists=/sys/firmware/efi/efivars/HibernateLocation-8cf2644b-4b0b-428f-9387-6d876050dc67
[ 26.043629] systemd[1]: Starting systemd-journald.service - Journal Service...
[ 26.063452] systemd[1]: Starting systemd-modules-load.service - Load Kernel Modules...
[ 26.073315] systemd[1]: Starting systemd-remount-fs.service - Remount Root and Kernel File Systems...
[ 26.085404] systemd[1]: Starting systemd-udev-load-credentials.service - Load udev Rules from Credentials...
[ 26.100563] systemd[1]: Starting systemd-udev-trigger.service - Coldplug All udev Devices...
[ 26.114449] systemd[1]: Mounted dev-hugepages.mount - Huge Pages File System.
[ 26.121887] systemd[1]: Mounted dev-mqueue.mount - POSIX Message Queue File System.
[ 26.129940] systemd[1]: Mounted sys-kernel-debug.mount - Kernel Debug File System.
[ 26.137474] systemd[1]: Mounted sys-kernel-tracing.mount - Kernel Trace File System.
[ 26.144958] systemd[1]: Mounted tmp.mount - Temporary Directory /tmp.
[ 26.152136] systemd[1]: Finished blk-availability.service - Availability of block devices.
[ 26.169659] EXT4-fs (mmcblk0p2): re-mounted 0d6aa7fc-29d7-54ef-b58d-d219ced3a9f7 r/w.
[ 26.191417] i2c_dev: i2c /dev entries driver
[ 26.201657] systemd-journald[569]: Collecting audit messages is disabled.
[ 26.208161] systemd[1]: Finished keyboard-setup.service - Set the console keyboard layout.
[ 26.216692] systemd[1]: Finished kmod-static-nodes.service - Create List of Static Device Nodes.
[ 26.225105] systemd[1]: modprobe@configfs.service: Deactivated successfully.
[ 26.229794] systemd[1]: Finished modprobe@configfs.service - Load Kernel Module configfs.
[ 26.240396] systemd[1]: modprobe@efi_pstore.service: Deactivated successfully.
[ 26.245131] systemd[1]: Finished modprobe@efi_pstore.service - Load Kernel Module efi_pstore.
[ 26.256270] systemd[1]: Mounted sys-fs-fuse-connections.mount - FUSE Control File System.
[ 26.264370] systemd[1]: modprobe@nvme_fabrics.service: Deactivated successfully.
[ 26.269326] systemd[1]: Finished modprobe@nvme_fabrics.service - Load Kernel Module nvme_fabrics.
[ 26.280864] systemd[1]: Finished systemd-modules-load.service - Load Kernel Modules.
[ 26.288608] systemd[1]: Finished systemd-remount-fs.service - Remount Root and Kernel File Systems.
[ 26.295988] device-mapper: core: CONFIG_IMA_DISABLE_HTABLE is disabled. Duplicate IMA measurements will not be recorded in the IMA log.
[ 26.296153] device-mapper: uevent: version 1.0.3
[ 26.296487] device-mapper: ioctl: 4.50.0-ioctl (2025-04-28) initialised: dm-devel@lists.linux.dev
[ 26.322377] systemd[1]: Finished systemd-udev-load-credentials.service - Load udev Rules from Credentials.
[ 26.336957] systemd[1]: Mounting sys-kernel-config.mount - Kernel Configuration File System...
[ 26.346236] systemd[1]: systemd-hwdb-update.service - Rebuild Hardware Database skipped, no trigger condition checks were met.
[ 26.356570] systemd[1]: systemd-pstore.service - Platform Persistent Storage Archival skipped, unmet condition check ConditionDirectoryNotEmpty=/sys/fs/pstore
[ 26.372861] systemd[1]: Starting systemd-random-seed.service - Load/Save OS Random Seed...
[ 26.384861] systemd[1]: Starting systemd-sysctl.service - Apply Kernel Variables...
[ 26.396021] systemd[1]: Starting systemd-tmpfiles-setup-dev-early.service - Create Static Device Nodes in /dev gracefully...
[ 26.411163] systemd[1]: Started systemd-journald.service - Journal Service.
[ 26.603549] systemd-journald[569]: Received client request to flush runtime journal.
[ 28.794268] hdmi-audio-codec hdmi-audio-codec.3.auto: HDMI: Unknown ELD version 0
[ 28.813529] axg-sound-card sound: workaround active: internal PCM chmap controls mapped to device 0
[ 28.899778] mnt_sc spi0.0: mntsc: couldn't parse response: err undf
[ 28.943525] cdc_acm 1-2.2:1.0: ttyACM0: USB ACM device
[ 28.952512] usbcore: registered new interface driver cdc_acm
[ 28.957662] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 28.957862] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[ 28.974553] Loaded X.509 cert 'benh@debian.org: 577e021cb980e0e820821ba7b54b4961b8b4fadf'
[ 28.982106] Loaded X.509 cert 'romain.perier@gmail.com: 3abbc6ec146e09d1b6016ab9d6cf71dd233f0328'
[ 28.982485] Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[ 28.982869] Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
[ 28.991897] usbcore: registered new interface driver usbserial_generic
[ 28.993758] usbcore: registered new interface driver cdc_wdm
[ 28.995095] usbserial: USB Serial support registered for generic
[ 29.064968] usbcore: registered new interface driver option
[ 29.067268] usbserial: USB Serial support registered for GSM modem (1-port)
[ 29.080303] qmi_wwan 1-2.1.4:1.4: cdc-wdm0: USB WDM device
[ 29.085834] qmi_wwan 1-2.1.4:1.4 wwan0: register 'qmi_wwan' at usb-xhci-hcd.1.auto-2.1.4, WWAN/QMI device, da:19:89:89:98:b3
[ 29.096643] usbcore: registered new interface driver qmi_wwan
[ 29.097460] option 1-2.1.4:1.0: GSM modem (1-port) converter detected
[ 29.112640] usb 1-2.1.4: GSM modem (1-port) converter now attached to ttyUSB0
[ 29.117263] Bluetooth: Core ver 2.22
[ 29.117446] NET: Registered PF_BLUETOOTH protocol family
[ 29.117471] Bluetooth: HCI device and connection manager initialized
[ 29.117508] Bluetooth: HCI socket layer initialized
[ 29.117524] Bluetooth: L2CAP socket layer initialized
[ 29.117577] Bluetooth: SCO socket layer initialized
[ 29.123379] option 1-2.1.4:1.1: GSM modem (1-port) converter detected
[ 29.167690] usb 1-2.1.4: GSM modem (1-port) converter now attached to ttyUSB1
[ 29.169855] option 1-2.1.4:1.2: GSM modem (1-port) converter detected
[ 29.177166] usb 1-2.1.4: GSM modem (1-port) converter now attached to ttyUSB2
[ 29.182977] option 1-2.1.4:1.3: GSM modem (1-port) converter detected
[ 29.189514] usb 1-2.1.4: GSM modem (1-port) converter now attached to ttyUSB3
[ 29.200999] qmi_wwan 1-2.1.4:1.4 wwu2u1u4i4: renamed from wwan0
[ 29.265327] Bluetooth: HCI UART driver ver 2.3
[ 29.265339] Bluetooth: HCI UART protocol H4 registered
[ 29.265407] Bluetooth: HCI UART protocol LL registered
[ 29.265410] Bluetooth: HCI UART protocol ATH3K registered
[ 29.265437] Bluetooth: HCI UART protocol Three-wire (H5) registered
[ 29.265662] Bluetooth: HCI UART protocol Intel registered
[ 29.265761] Bluetooth: HCI UART protocol Broadcom registered
[ 29.265777] Bluetooth: HCI UART protocol QCA registered
[ 29.265779] Bluetooth: HCI UART protocol AG6XX registered
[ 29.265825] Bluetooth: HCI UART protocol Marvell registered
[ 29.274430] EXT4-fs (mmcblk0p1): mounted filesystem 96d68e96-8a49-555d-9a34-7c8284fdf72e r/w with ordered data mode. Quota mode: none.
[ 29.611351] RPC: Registered named UNIX socket transport module.
[ 29.612694] RPC: Registered udp transport module.
[ 29.617371] RPC: Registered tcp transport module.
[ 29.622045] RPC: Registered tcp-with-tls transport module.
[ 29.627505] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 29.918476] Bluetooth: hci0: RTL: examining hci_ver=0a hci_rev=000c lmp_ver=0a lmp_subver=8822
[ 29.926308] Bluetooth: hci0: RTL: rom_version status=0 version=3
[ 29.932713] Bluetooth: hci0: RTL: btrtl_initialize: key id 0
[ 29.934291] Bluetooth: hci0: RTL: loading rtl_bt/rtl8822cs_fw.bin
[ 30.104911] Bluetooth: hci0: RTL: loading rtl_bt/rtl8822cs_config.bin
[ 30.141609] rtw88_8822cs mmc2:0001:1: Firmware version 9.9.15, H2C version 15
[ 30.147926] rtw88_8822cs mmc2:0001:1: WOW Firmware version 9.9.4, H2C version 15
[ 30.156218] Bluetooth: hci0: RTL: cfg_sz 33, total sz 37829
[ 30.571906] Bluetooth: hci0: RTL: fw version 0x25d77c20
[ 45.345992] meson8b-dwmac ff3f0000.ethernet end0: stmmac_dvr_remove: removing driver
[ 45.900050] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 45.901108] Bluetooth: BNEP filters: protocol multicast
[ 45.905981] Bluetooth: BNEP socket layer initialized
[ 45.953505] Bluetooth: MGMT ver 1.23
[ 46.003187] NET: Registered PF_ALG protocol family
[ 46.999444] meson8b-dwmac ff3f0000.ethernet: IRQ eth_wake_irq not found
[ 47.001468] meson8b-dwmac ff3f0000.ethernet: IRQ sfty not found
[ 47.008014] meson8b-dwmac ff3f0000.ethernet: PTP uses main clock
[ 47.015600] meson8b-dwmac ff3f0000.ethernet: User ID: 0x11, Synopsys ID: 0x37
[ 47.020472] meson8b-dwmac ff3f0000.ethernet: DWMAC1000
[ 47.025679] meson8b-dwmac ff3f0000.ethernet: DMA HW capability register supported
[ 47.033116] meson8b-dwmac ff3f0000.ethernet: Active PHY interface: GMII/MII (0)
[ 47.040427] meson8b-dwmac ff3f0000.ethernet: RX Checksum Offload Engine supported
[ 47.047876] meson8b-dwmac ff3f0000.ethernet: COE Type 2
[ 47.053034] meson8b-dwmac ff3f0000.ethernet: TX Checksum insertion supported
[ 47.060085] meson8b-dwmac ff3f0000.ethernet: Wake-Up On Lan supported
[ 47.066479] meson8b-dwmac ff3f0000.ethernet: Normal descriptors
[ 47.072383] meson8b-dwmac ff3f0000.ethernet: Ring mode enabled
[ 47.078186] meson8b-dwmac ff3f0000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[ 47.966720] NET: Registered PF_QIPCRTR protocol family
[ 50.127369] meson8b-dwmac ff3f0000.ethernet end0: renamed from eth0
[ 50.168902] meson8b-dwmac ff3f0000.ethernet end0: Register MEM_TYPE_PAGE_POOL RxQ-0
[ 50.175228] meson8b-dwmac ff3f0000.ethernet end0: cannot attach to PHY (error: -ENODEV)
[ 50.217952] mmc2: card 0001 removed
[ 50.296977] meson-gx-mmc ffe03000.mmc: allocated mmc-pwrseq
[ 50.556183] meson-gx-mmc ffe03000.mmc: card claims to support voltages below defined range
[ 50.595403] mmc2: new UHS-I speed SDR104 SDIO card at address 0001
[ 50.597776] rtw88_8822cs mmc2:0001:1: Firmware version 9.9.15, H2C version 15
[ 50.604455] rtw88_8822cs mmc2:0001:1: WOW Firmware version 9.9.4, H2C version 15
[ 51.463912] EXT4-fs warning (device mmcblk0p2): ext4_dirblock_csum_verify:375: inode #942: comm runit-helper: No space for directory leaf checksum. Please run e2fsck -D.
[ 51.474840] EXT4-fs error (device mmcblk0p2): __ext4_find_entry:1624: inode #942: comm runit-helper: checksumming directory block 0
[ 51.486654] Aborting journal on device mmcblk0p2-8.
[ 51.491487] EXT4-fs error (device mmcblk0p2) in ext4_setattr:6121: Journal has aborted
[ 51.509792] EXT4-fs error (device mmcblk0p2): ext4_journal_check_start:86: comm blueman-mechani: Detected aborted journal
[ 51.548661] EXT4-fs (mmcblk0p2): Remounting filesystem read-only
[ 51.550704] EXT4-fs warning (device mmcblk0p2): ext4_dirblock_csum_verify:375: inode #942: comm runit-helper: No space for directory leaf checksum. Please run e2fsck -D.
[ 51.565785] EXT4-fs warning (device mmcblk0p2): ext4_dirblock_csum_verify:375: inode #942: comm runit-helper: No space for directory leaf checksum. Please run e2fsck -D.
[ 51.586995] EXT4-fs warning (device mmcblk0p2): ext4_dirblock_csum_verify:375: inode #942: comm ln: No space for directory leaf checksum. Please run e2fsck -D.
[ 51.597254] EXT4-fs warning (device mmcblk0p2): ext4_dirblock_csum_verify:375: inode #942: comm ln: No space for directory leaf checksum. Please run e2fsck -D.
[ 51.657233] rtw88_8822cs mmc2:0001:1: sdio read32 failed (0x2dbc): -84
Debian GNU/Linux forky/sid reform ttyAML0
reform login: [ 58.878450] fe.dai-link-1: ASoC: no backend DAIs enabled for fe.dai-link-1, possibly missing ALSA mixer-based routing or UCM profile
[ 59.344509] Bluetooth: RFCOMM TTY layer initialized
[ 59.344555] Bluetooth: RFCOMM socket layer initialized
[ 59.348961] Bluetooth: RFCOMM ver 1.11
[ 63.426603] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 2
[ 63.429266] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 72.185403] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 2
[ 72.188037] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 74.891601] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 2
[ 74.894256] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
trying trixie backports next, will report back.
ok first boot after rebooting back to backports, i got the half screen grey bug
here’s the UART from boot to here
G12B:BL:6e7c85:2a3b91;FEAT:E0F83180:402000;POC:F;RCY:0;EMMC:0;READ:0;0.
bl2_stage_init 0x01
bl2_stage_init 0x81
hw id: 0x0000 - pwm id 0x01
bl2_stage_init 0xc1
bl2_stage_init 0x02
L0:00000000
L1:20000703
L2:00008067
L3:14000000
B2:00402000
B1:e0f83180
TE: 143941
BL2 Built : 19:23:21, Sep 18 2020. g12b g9fde858 - gongwei.chen@droid11-sz
Board ID = 12
Set A53 clk to 24M
Set A73 clk to 24M
Set clk81 to 24M
A53 clk: 1200 MHz
A73 clk: 1200 MHz
CLK81: 166.6M
smccc: 00027b80
eMMC boot @ 0
sw8 s
board id: 12
Load FIP HDR DDR from eMMC, src: 0x00010200, des: 0xfffd0000, size: 0x00004000, part: 0
Get wrong ddr fw magic! Error!!
fw parse done
PIEI prepare done
00000000
emmc switch 1 ok
00000000
emmc switch 2 ok
NO find ddr boot_info from eMMC
fastboot data verify
result: 255
Cfg max: 12, cur: 1. Board id: 255. Force loop cfg
LPDDR4 probe
LPDDR4_PHY_V_0_1_22-Built : 14:57:26, Sep 1 2020. g12b g3c95fed - gongwei.chen@droid11-sz
ddr clk to 1608MHz
00000000
emmc switch 0 ok
dmc_version 0001
Check phy result
INFO : End of CA training
INFO : End of initialization
INFO : Training has run successfully!
Check phy result
INFO : End of initialization
INFO : End of read enable training
INFO : End of fine write leveling
INFO : End of read dq deskew training
INFO : End of MPR read delay center optimization
INFO : End of Write leveling coarse delay
INFO : End of read delay center optimization
INFO : Training has run successfully!
Check phy result
INFO : End of initialization
INFO : End of MPR read delay center optimization
INFO : End of write delay center optimization
INFO : End of read delay center optimization
INFO : End of max read latency training
INFO : Training has run successfully!
1D training succeed
Check phy result
INFO : End of initialization
INFO : End of 2D read delay Voltage center optimization
INFO : End of 2D read delay Voltage center optimization
INFO : End of 2D write delay Voltage center optimization
INFO : End of 2D write delay Voltage center optimization
INFO : Training has run successfully!
soc_vref_reg_value 0x 0000001c 0000001d 0000001c 0000001c 0000001c 0000001b 0000001b 0000001e 0000001a 0000001c 0000001d 0000001b 0000001c 0000001c 0000001d 0000001c 0000001e 0000001c 0000001d 0000001f 0000001c 0000001c 0000001c 0000001d 0000001d 0000001d 0000001c 0000001e 0000001c 0000001c 0000001e 0000001a dwc_ddrphy_apb_wr((0<<20)|(2<<16)|(0<<12)|(0xb0):0004
dram_vref_reg_value 0x 0000004e
2D training succeed
auto size-- 65535DDR cs0 size: 2048MB
DDR cs1 size: 2048MB
DMC_DDR_CTRL: 00e00024DDR size: 3928MB
cs0 DataBus test pass
cs1 DataBus test pass
cs0 AddrBus test pass
cs1 AddrBus test pass
non-sec scramble use zero key
ddr scramble enabled
100bdlr_step_size ps== 414
result report
boot times 0Enable ddr reg access
00000000
emmc switch 3 ok
Authentication key not yet programmed
get rpmb counter error 0x00000007
00000000
emmc switch 0 ok
Load FIP HDR from eMMC, src: 0x00010200, des: 0x01700000, size: 0x00004000, part: 0
Load BL3X from eMMC, src: 0x00078200, des: 0x01768000, size: 0x00109400, part: 0
0.0;M3 CHK:0;cm4_sp_mode 0
MVN_1=0x00000000
MVN_2=0x00000000
[Image: g12b_v1.1.3390-6ac5299 2019-09-26 14:10:05 luan.yuan@droid15-sz]
OPS=0x10
ring efuse init
chipver efuse init
29 0b 10 00 01 1e 1a 00 00 0f 36 38 34 55 30 50
[0.018961 Inits done]
secure task start!
high task start!
low task start!
run into bl31
NOTICE: BL31: v1.3(release):4fc40b1
NOTICE: BL31: Built : 15:58:17, May 22 2019
NOTICE: BL31: G12A normal boot!
ERROR: Error initializing runtime service opteed_fast
<debug_uart>
U-Boot 2024.04-dirty (Oct 11 2024 - 20:36:25 +0000)bpi-cm4-mnt-pocket-reform
Model: MNT Pocket Reform with BPI-CM4 Module
SoC: Amlogic Meson G12B (A311D) Revision 29:b (10:2)
DRAM: 1 GiB (effective 3.8 GiB)
Core: 404 devices, 30 uclasses, devicetree: separate
MMC: sd@ffe03000: 2, sd@ffe05000: 0, mmc@ffe07000: 1
Loading Environment from nowhere... OK
In: usbkbd,serial
Out: vidconsole,serial
Err: vidconsole,serial
gpio: pin periphs-banks73 (gpio 88) value is 0
gpio: pin periphs-banks73 (gpio 88) value is 1
Net: eth0: ethernet@ff3f0000
Hit any key to stop autoboot: 0
Card did not respond to voltage select! : -110
switch to partitions #0, OK
mmc1(part 0) is current device
Scanning mmc 1:1...
Found /extlinux/extlinux.conf
Retrieving file: /extlinux/extlinux.conf
U-Boot menu
1: Debian GNU/Linux 13 (trixie) 7.1.3.1-mnt-reform-arm64
2: Debian GNU/Linux 13 (trixie) 7.1.3.1-mnt-reform-arm64 (rescue target)
3: Debian GNU/Linux 13 (trixie) 6.12.94-mnt-reform-arm64
4: Debian GNU/Linux 13 (trixie) 6.12.94-mnt-reform-arm64 (rescue target)
Enter choice: 1: Debian GNU/Linux 13 (trixie) 7.1.3.1-mnt-reform-arm64
Retrieving file: /vmlinuz-7.1.3.1-mnt-reform-arm64
Retrieving file: /initrd.img-7.1.3.1-mnt-reform-arm64
append: ro no_console_suspend cryptomgr.notests plymouth.ignore-serial-consoles pcie_aspm=off ro no_console_suspend console=ttyAML0,115200 pci=pcie_bus_perf libata.force=noncq nvme_core.default_ps_max_latency_us=0 console=tty1 fbcon=rotate:3 fbcon=font:TER16x32 console=tty1
Retrieving file: /dtb-7.1.3.1-mnt-reform-arm64
Moving Image from 0x8080000 to 0x8200000, end=a9f0000
## Flattened Device Tree blob at 08008000
Booting using the fdt blob at 0x8008000
Working FDT set to 8008000
Loading Ramdisk to 3cc17000, end 3ffff7bc ... OK
Loading Device Tree to 000000003cc06000, end 000000003cc16ae9 ... OK
Working FDT set to 3cc06000
Starting kernel ...
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x410fd034]
[ 0.000000] Linux version 7.1.3.1-mnt-reform-arm64 (debian-kernel@lists.debian.org) (aarch64-linux-gnu-gcc-14 (Debian 14.2.0-19) 14.2.0, GNU ld (GNU Binutils for Debian) 2.44) #1 SMP PREEMPT Debian 7.1.3-1~bpo13+1+reform20260812T225358Z (20
[ 0.000000] KASLR disabled due to lack of seed
[ 0.000000] Machine model: MNT Pocket Reform with BPI-CM4 Module
[ 0.000000] efi: UEFI not found.
[ 0.000000] Reserved memory: created CMA memory pool at 0x00000000e5000000, size 256 MiB
[ 0.000000] OF: reserved mem: initialized node linux,cma, compatible id shared-dma-pool
[ 0.000000] OF: reserved mem: 0x00000000e5000000..0x00000000f4ffffff (262144 KiB) map reusable linux,cma
[ 0.000000] OF: reserved mem: 0x0000000005000000..0x00000000052fffff (3072 KiB) nomap non-reusable secmon@5000000
[ 0.000000] OF: reserved mem: 0x0000000005300000..0x00000000072fffff (32768 KiB) nomap non-reusable secmon@5300000
[ 0.000000] NUMA: Faking a node at [mem 0x0000000000000000-0x00000000f4ffffff]
[ 0.000000] NODE_DATA(0) allocated [mem 0xe480a640-0xe480de3f]
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.0 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.1
[ 0.000000] RME: RMM doesn't support RSI version 1.0. Supported range: 1.0-0.0
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000000000000-0x00000000f4ffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal empty
[ 0.000000] Device empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000000000-0x0000000004ffffff]
[ 0.000000] node 0: [mem 0x0000000005000000-0x00000000072fffff]
[ 0.000000] node 0: [mem 0x0000000007300000-0x00000000f4ffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000000000-0x00000000f4ffffff]
[ 0.000000] On node 0, zone DMA: 12288 pages in unavailable ranges
[ 0.000000] percpu: Embedded 36 pages/cpu s108056 r8192 d31208 u147456
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: ARM erratum 845719
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Kernel command line: ro no_console_suspend cryptomgr.notests plymouth.ignore-serial-consoles pcie_aspm=off ro no_console_suspend console=ttyAML0,115200 pci=pcie_bus_perf libata.force=noncq nvme_core.default_ps_max_latency_us=0 console=tty1 fbcon=rotate:3 fbcon=font:TER16x32 console=tty1
[ 0.000000] PCIe ASPM is disabled
[ 0.000000] printk: log buffer data + meta data: 131072 + 557056 = 688128 bytes
[ 0.000000] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[ 0.000000] software IO TLB: SWIOTLB bounce buffer size adjusted to 3MB
[ 0.000000] software IO TLB: area num 8.
[ 0.000000] software IO TLB: mapped [mem 0x00000000dfe00000-0x00000000e0200000] (4MB)
[ 0.000000] Fallback order for Node 0: 0
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 1003520
[ 0.000000] Policy zone: DMA
[ 0.000000] mem auto-init: stack:all(zero), heap alloc:on, heap free:off
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=6, Nodes=1
[ 0.000000] ftrace: allocating 55355 entries in 218 pages
[ 0.000000] ftrace: allocated 218 pages with 5 groups
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=512 to nr_cpu_ids=6.
[ 0.000000] Trampoline variant of Tasks RCU enabled.
[ 0.000000] Rude variant of Tasks RCU enabled.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=6
[ 0.000000] RCU Tasks: Setting shift to 3 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=6.
[ 0.000000] RCU Tasks Rude: Setting shift to 3 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=6.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GIC: Using split EOI/Deactivate mode
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] arch_timer: cp15 timer running at 24.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000000] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.000755] Console: colour dummy device 80x25
[ 0.000774] printk: legacy console [tty1] enabled
[ 0.002068] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[ 0.002096] pid_max: default: 32768 minimum: 301
[ 0.005136] landlock: Up and running.
[ 0.005152] Yama: disabled by default; enable with sysctl kernel.yama.*
[ 0.005450] AppArmor: AppArmor initialized
[ 0.005532] TOMOYO Linux initialized
[ 0.006098] LSM support for eBPF active
[ 0.007728] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.007767] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes, linear)
[ 0.008728] VFS: Finished mounting rootfs on nullfs
[ 0.015282] rcu: Hierarchical SRCU implementation.
[ 0.015323] rcu: Max phase no-delay instances is 1000.
[ 0.015635] Timer migration: 1 hierarchy levels; 8 children per group; 1 crossnode level
[ 0.020149] EFI services will not be available.
[ 0.020852] smp: Bringing up secondary CPUs ...
[ 0.021899] Detected VIPT I-cache on CPU1
[ 0.022120] CPU1: Booted secondary processor 0x0000000001 [0x410fd034]
[ 0.023883] CPU features: detected: Spectre-v2
[ 0.023901] CPU features: detected: Spectre-v4
[ 0.023906] CPU features: detected: Spectre-BHB
[ 0.023912] CPU features: detected: ARM erratum 858921
[ 0.023922] Detected VIPT I-cache on CPU2
[ 0.024056] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.024075] arch_timer: CPU2: Trapping CNTVCT access
[ 0.024088] CPU2: Booted secondary processor 0x0000000100 [0x410fd092]
[ 0.025182] Detected VIPT I-cache on CPU3
[ 0.025287] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.025297] arch_timer: CPU3: Trapping CNTVCT access
[ 0.025305] CPU3: Booted secondary processor 0x0000000101 [0x410fd092]
[ 0.026309] Detected VIPT I-cache on CPU4
[ 0.026414] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.026424] arch_timer: CPU4: Trapping CNTVCT access
[ 0.026433] CPU4: Booted secondary processor 0x0000000102 [0x410fd092]
[ 0.027537] Detected VIPT I-cache on CPU5
[ 0.027644] arch_timer: Enabling local workaround for ARM erratum 858921
[ 0.027654] arch_timer: CPU5: Trapping CNTVCT access
[ 0.027662] CPU5: Booted secondary processor 0x0000000103 [0x410fd092]
[ 0.027788] smp: Brought up 1 node, 6 CPUs
[ 0.027983] SMP: Total of 6 processors activated.
[ 0.027996] CPU: All CPU(s) started at EL2
[ 0.028035] CPU features: detected: 32-bit EL0 Support
[ 0.028049] CPU features: detected: 32-bit EL1 Support
[ 0.028064] CPU features: detected: CRC32 instructions
[ 0.028088] CPU features: detected: PMUv3
[ 0.028189] alternatives: applying system-wide alternatives
[ 0.052430] node 0 deferred pages initialised in 20ms
[ 0.052503] Memory: 3533588K/4014080K available (18624K kernel code, 5126K rwdata, 12080K rodata, 3904K init, 912K bss, 212892K reserved, 262144K cma-reserved)
[ 0.054047] devtmpfs: initialized
[ 0.065119] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.065187] posixtimers hash table entries: 4096 (order: 4, 65536 bytes, linear)
[ 0.065273] futex hash table entries: 2048 (131072 bytes on 1 NUMA nodes, total 128 KiB, linear).
[ 0.068484] 22544 pages in range for non-PLT usage
[ 0.068498] 514064 pages in range for PLT usage
[ 0.073193] DMI: not present or invalid.
[ 0.076101] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.077589] DMA: preallocated 512 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.077639] audit: initializing netlink subsys (disabled)
[ 0.077872] audit: type=2000 audit(0.076:1): state=initialized audit_enabled=0 res=1
[ 0.080568] thermal_sys: Registered thermal governor 'fair_share'
[ 0.080577] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.080592] thermal_sys: Registered thermal governor 'step_wise'
[ 0.080602] thermal_sys: Registered thermal governor 'user_space'
[ 0.080612] thermal_sys: Registered thermal governor 'power_allocator'
[ 0.080686] cpuidle: using governor ladder
[ 0.080732] cpuidle: using governor menu
[ 0.081042] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.081194] ASID allocator initialised with 65536 entries
[ 0.082837] Serial: AMBA PL011 UART driver
[ 0.089188] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.089628] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.089659] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ff600000/hdmi-tx@0
[ 0.089687] /soc/interrupt-controller@ffc01000: Fixed dependency cycle(s) with /soc/interrupt-controller@ffc01000
[ 0.089713] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 0.089748] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.089796] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.090908] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.091461] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.103960] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.104053] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.104086] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ff600000/hdmi-tx@0
[ 0.104429] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 0.104468] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.104632] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.106128] /soc/vpu@ff900000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.106188] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 0.106228] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/vpu@ff900000
[ 0.106420] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 0.113545] /soc/bus@ff600000/hdmi-tx@0: Fixed dependency cycle(s) with /hdmi-connector
[ 0.113646] /hdmi-connector: Fixed dependency cycle(s) with /soc/bus@ff600000/hdmi-tx@0
[ 0.123551] HugeTLB: registered 1.00 GiB page size, pre-allocated 0 pages
[ 0.123579] HugeTLB: 0 KiB vmemmap can be freed for a 1.00 GiB page
[ 0.123591] HugeTLB: registered 32.0 MiB page size, pre-allocated 0 pages
[ 0.123602] HugeTLB: 0 KiB vmemmap can be freed for a 32.0 MiB page
[ 0.123612] HugeTLB: registered 2.00 MiB page size, pre-allocated 0 pages
[ 0.123621] HugeTLB: 0 KiB vmemmap can be freed for a 2.00 MiB page
[ 0.123632] HugeTLB: registered 64.0 KiB page size, pre-allocated 0 pages
[ 0.123641] HugeTLB: 0 KiB vmemmap can be freed for a 64.0 KiB page
[ 0.134161] ACPI: Interpreter disabled.
[ 0.136227] iommu: Default domain type: Translated
[ 0.136245] iommu: DMA domain TLB invalidation policy: strict mode
[ 0.144582] pps_core: LinuxPPS API ver. 1 registered
[ 0.144600] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.144620] PTP clock support registered
[ 0.144674] EDAC MC: Ver: 3.0.0
[ 0.145079] scmi_core: SCMI protocol bus registered
[ 0.146786] NetLabel: Initializing
[ 0.146803] NetLabel: domain hash size = 128
[ 0.146812] NetLabel: protocols = UNLABELED CIPSOv4 CALIPSO
[ 0.146869] NetLabel: unlabeled traffic allowed by default
[ 0.147045] vgaarb: loaded
[ 0.147462] clocksource: Switched to clocksource arch_sys_counter
[ 0.149701] VFS: Disk quotas dquot_6.6.0
[ 0.149872] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[ 0.151101] AppArmor: AppArmor Filesystem Enabled
[ 0.151264] pnp: PnP ACPI: disabled
[ 0.158888] NET: Registered PF_INET protocol family
[ 0.159177] IP idents hash table entries: 65536 (order: 7, 524288 bytes, linear)
[ 0.163726] tcp_listen_portaddr_hash hash table entries: 2048 (order: 3, 32768 bytes, linear)
[ 0.163827] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.163911] TCP established hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.164279] TCP bind hash table entries: 32768 (order: 8, 1048576 bytes, linear)
[ 0.164623] TCP: Hash tables configured (established 32768 bind 32768)
[ 0.165000] MPTCP token hash table entries: 4096 (order: 5, 98304 bytes, linear)
[ 0.165212] UDP hash table entries: 2048 (order: 5, 131072 bytes, linear)
[ 0.165544] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.165578] NET: Registered PF_XDP protocol family
[ 0.165603] PCI: CLS 0 bytes, default 64
[ 0.165879] Trying to unpack rootfs image as initramfs...
[ 0.178657] kvm [1]: nv: 570 coarse grained trap handlers
[ 0.178872] kvm [1]: nv: 710 fine grained trap handlers
[ 0.179227] kvm [1]: IPA Size Limit: 40 bits
[ 0.180924] kvm [1]: vgic interrupt IRQ9
[ 0.180977] kvm [1]: Hyp nVHE mode initialized successfully
[ 0.189979] Initialise system trusted keyrings
[ 0.190077] Key type blacklist registered
[ 0.190377] workingset: timestamp_bits=42 (anon: 38) max_order=20 bucket_order=0 (anon: 0)
[ 0.195546] fuse: init (API version 7.45)
[ 0.196345] integrity: Platform Keyring initialized
[ 0.196393] integrity: Machine keyring initialized
[ 0.196484] Key type asymmetric registered
[ 0.196496] Asymmetric key parser 'x509' registered
[ 0.196647] alg: self-tests disabled
[ 0.196952] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 244)
[ 0.197129] io scheduler mq-deadline registered
[ 0.201425] irq_meson_gpio: 100 to 8 gpio interrupt mux initialized
[ 0.227521] ledtrig-cpu: registered to indicate activity on CPUs
[ 0.246323] soc soc0: Amlogic Meson G12B (A311D) Revision 29:b (10:2) Detected
[ 0.252151] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled
[ 0.255194] Serial: AMBA driver
[ 0.256497] ff803000.serial: ttyAML0 at MMIO 0xff803000 (irq = 14, base_baud = 1500000) is a meson_uart
[ 0.256551] printk: legacy console [ttyAML0] enabled
[ 0.991913] Freeing initrd memory: 53152K
[ 1.000741] ffd24000.serial: ttyAML6 at MMIO 0xffd24000 (irq = 15, base_baud = 1500000) is a meson_uart
[ 1.601047] serial serial0: tty port ttyAML6 registered
[ 1.606659] msm_serial: driver initialized
[ 1.610740] SuperH (H)SCI(F) driver initialized
[ 1.619516] mousedev: PS/2 mouse device common for all mice
[ 1.625685] pwrseq_emmc emmc-pwrseq: EMMC reset pin tied to a sleepy GPIO driver; reset on emergency-reboot disabled
[ 1.631743] meson-sm: secure-monitor enabled
[ 1.641322] NET: Registered PF_INET6 protocol family
[ 1.642735] Segment Routing with IPv6
[ 1.644316] RPL Segment Routing with IPv6
[ 1.648329] In-situ OAM (IOAM) with IPv6
[ 1.652244] mip6: Mobile IPv6
[ 1.655140] NET: Registered PF_PACKET protocol family
[ 1.660369] mpls_gso: MPLS GSO support
[ 1.673508] registered taskstats version 1
[ 1.673719] Loading compiled-in X.509 certificates
[ 1.706279] Loaded X.509 cert 'Build time autogenerated kernel key: bc13c344c3ed3ce377f479fcc383bb83682a8489'
[ 1.720355] Demotion targets for Node 0: null
[ 1.721082] Key type .fscrypt registered
[ 1.722993] Key type fscrypt-provisioning registered
[ 1.786197] Key type encrypted registered
[ 1.786249] AppArmor: AppArmor sha256 policy hashing enabled
[ 1.790249] ima: No TPM chip found, activating TPM-bypass!
[ 1.795743] ima: Allocated hash algorithm: sha256
[ 1.800614] ima: No architecture policies found
[ 1.804929] evm: Initialising EVM extended attributes:
[ 1.809987] evm: security.selinux
[ 1.813278] evm: security.SMACK64 (disabled)
[ 1.817524] evm: security.SMACK64EXEC (disabled)
[ 1.822119] evm: security.SMACK64TRANSMUTE (disabled)
[ 1.827143] evm: security.SMACK64MMAP (disabled)
[ 1.831737] evm: security.apparmor
[ 1.835113] evm: security.ima
[ 1.838064] evm: security.capability
[ 1.841617] evm: HMAC attrs: 0x1
[ 1.867797] meson-pcie fc000000.pcie: host bridge /soc/pcie@fc000000 ranges:
[ 1.869248] meson-pcie fc000000.pcie: IO 0x00fc600000..0x00fc6fffff -> 0x0000000000
[ 1.877398] meson-pcie fc000000.pcie: MEM 0x00fc700000..0x00fdffffff -> 0x00fc700000
[ 1.885760] meson-pcie fc000000.pcie: iATU: unroll T, 4 ob, 4 ib, align 64K, limit 4G
[ 1.987478] meson-pcie fc000000.pcie: PCIe Gen.2 x1 link up
[ 1.987861] meson-pcie fc000000.pcie: PCI host bridge to bus 0000:00
[ 1.993765] pci_bus 0000:00: root bus resource [bus 00-ff]
[ 1.999209] pci_bus 0000:00: root bus resource [io 0x0000-0xfffff]
[ 2.005448] pci_bus 0000:00: root bus resource [mem 0xfc700000-0xfdffffff]
[ 2.012319] pci 0000:00:00.0: [16c3:abcd] type 01 class 0x060400 PCIe Root Port
[ 2.019583] pci 0000:00:00.0: ROM [mem 0x00000000-0x0000ffff pref]
[ 2.025736] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 2.030934] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff]
[ 2.036994] pci 0000:00:00.0: bridge window [mem 0x00000000-0x000fffff]
[ 2.043757] pci 0000:00:00.0: bridge window [mem 0x00000000-0x000fffff pref]
[ 2.050996] pci 0000:00:00.0: supports D1
[ 2.054936] pci 0000:00:00.0: PME# supported from D0 D1 D3hot D3cold
[ 2.064913] pci 0000:01:00.0: [c0a9:5421] type 00 class 0x010802 PCIe Endpoint
[ 2.068574] pci 0000:01:00.0: BAR 0 [mem 0x00000000-0x00003fff 64bit]
[ 2.075474] pci 0000:01:00.0: 4.000 Gb/s available PCIe bandwidth, limited by 5.0 GT/s PCIe x1 link at 0000:00:00.0 (capable of 63.012 Gb/s with 16.0 GT/s PCIe x4 link)
[ 2.090058] pci 0000:00:00.0: bridge window [mem 0xfc700000-0xfc7fffff]: assigned
[ 2.097328] pci 0000:00:00.0: ROM [mem 0xfc800000-0xfc80ffff pref]: assigned
[ 2.104340] pci 0000:01:00.0: BAR 0 [mem 0xfc700000-0xfc703fff 64bit]: assigned
[ 2.111638] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 2.116815] pci 0000:00:00.0: bridge window [mem 0xfc700000-0xfc7fffff]
[ 2.123587] pci_bus 0000:00: resource 4 [io 0x0000-0xfffff]
[ 2.129207] pci_bus 0000:00: resource 5 [mem 0xfc700000-0xfdffffff]
[ 2.135447] pci_bus 0000:01: resource 1 [mem 0xfc700000-0xfc7fffff]
[ 2.141689] pci 0000:00:00.0: Max Payload Size set to 256/ 256 (was 256), Max Read Rq 256
[ 2.150131] pci 0000:01:00.0: Max Payload Size set to 256/ 512 (was 128), Max Read Rq 256
[ 2.158747] pcieport 0000:00:00.0: PME: Signaling with IRQ 21
[ 2.164508] pcieport 0000:00:00.0: AER: enabled with IRQ 21
[ 2.177388] clk: Disabling unused clocks
[ 2.177608] PM: genpd: Disabling unused power domains
[ 2.177946] meson-gx-mmc ffe07000.mmc: allocated mmc-pwrseq
[ 2.225373] Freeing unused kernel memory: 3904K
[ 2.272437] Checked W+X mappings: passed, no W+X pages found
[ 2.272552] Run /init as init process
[ 2.289958] mmc1: new HS200 MMC card at address 0001
[ 2.291360] mmcblk1: mmc1:0001 AJTD4R 14.6 GiB
[ 2.296319] mmcblk1: p1
[ 2.297172] mmcblk1boot0: mmc1:0001 AJTD4R 4.00 MiB
[ 2.303941] mmcblk1boot1: mmc1:0001 AJTD4R 4.00 MiB
[ 2.308436] mmcblk1rpmb: mmc1:0001 AJTD4R 4.00 MiB, chardev (237:0)
[ 3.026053] meson-gx-mmc ffe05000.mmc: Got CD GPIO
[ 3.107443] cpufreq: cpufreq_policy_online: CPU2: Running at unlisted initial frequency: 999999 kHz, changing to: 1000000 kHz
[ 3.129092] mc: Linux media interface: v0.10
[ 3.185930] dwc3-meson-g12a ffe09000.usb: USB2 ports: 2
[ 3.185976] dwc3-meson-g12a ffe09000.usb: USB3 ports: 0
[ 3.186103] videodev: Linux video capture interface: v2.00
[ 3.221987] spidev@0 enforce active low on GPIO handle
[ 3.229537] Key type psk registered
[ 3.229716] /soc/bus@ffd00000/dsi@7000: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000/panel@0
[ 3.247561] /soc/bus@ffd00000/dsi@7000/panel@0: Fixed dependency cycle(s) with /soc/bus@ffd00000/dsi@7000
[ 3.277810] meson8b-dwmac ff3f0000.ethernet: IRQ eth_wake_irq not found
[ 3.278008] panfrost ffe40000.gpu: clock rate = 24000000
[ 3.278799] meson8b-dwmac ff3f0000.ethernet: IRQ sfty not found
[ 3.278845] panfrost ffe40000.gpu: error -ENODEV: _opp_set_regulators: no regulator (mali) found
[ 3.284385] meson8b-dwmac ff3f0000.ethernet: PTP uses main clock
[ 3.289115] meson_vdec: module is from the staging directory, the quality is unknown, you have been warned.
[ 3.290462] meson-vrtc ff8000a8.rtc: registered as rtc1
[ 3.291086] panfrost ffe40000.gpu: mali-g52 id 0x7212 major 0x0 minor 0x0 status 0x0
[ 3.291095] panfrost ffe40000.gpu: features: 00000000,00000df7, issues: 00000000,00000400
[ 3.291099] panfrost ffe40000.gpu: Features: L2:0x07110206 Shader:0x00000000 Tiler:0x00000809 Mem:0x1 MMU:0x00002830 AS:0xff JS:0x7
[ 3.291103] panfrost ffe40000.gpu: shader_present=0x3 l2_present=0x1
[ 3.302019] panfrost ffe40000.gpu: [drm] Using Transparent Hugepage
[ 3.302117] meson8b-dwmac ff3f0000.ethernet: User ID: 0x11, Synopsys ID: 0x37
[ 3.302126] meson8b-dwmac ff3f0000.ethernet: DWMAC1000
[ 3.302130] meson8b-dwmac ff3f0000.ethernet: DMA HW capability register supported
[ 3.302133] meson8b-dwmac ff3f0000.ethernet: Active PHY interface: GMII/MII (0)
[ 3.302135] meson8b-dwmac ff3f0000.ethernet: RX Checksum Offload Engine supported
[ 3.302137] meson8b-dwmac ff3f0000.ethernet: COE Type 2
[ 3.302139] meson8b-dwmac ff3f0000.ethernet: TX Checksum insertion supported
[ 3.302141] meson8b-dwmac ff3f0000.ethernet: Wake-Up On Lan supported
[ 3.306352] meson8b-dwmac ff3f0000.ethernet: Normal descriptors
[ 3.364086] debugfs: 'ff800280.cec' already exists in 'regmap'
[ 3.371623] meson8b-dwmac ff3f0000.ethernet: Ring mode enabled
[ 3.407847] Registered IR keymap rc-cec
[ 3.414810] meson8b-dwmac ff3f0000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[ 3.414950] usbcore: registered new interface driver usbfs
[ 3.414974] usbcore: registered new interface driver hub
[ 3.415006] usbcore: registered new device driver usb
[ 3.419579] rc rc0: meson_g12a_ao_cec as /devices/platform/soc/ff800000.bus/ff800280.cec/rc/rc0
[ 3.420516] nvme nvme0: pci function 0000:01:00.0
[ 3.420537] nvme 0000:01:00.0: enabling device (0000 -> 0002)
[ 3.420612] meson-drm ff900000.vpu: Queued 2 outputs on vpu
[ 3.424300] rtc-pcf8523 1-0068: registered as rtc0
[ 3.425589] rtc-pcf8523 1-0068: setting system clock to 2026-07-23T18:34:28 UTC (1784831668)
[ 3.430749] input: meson_g12a_ao_cec as /devices/platform/soc/ff800000.bus/ff800280.cec/rc/rc0/input0
[ 3.456345] mdio_bus mdio_mux-0.0: MDIO device at address 0 is missing.
[ 3.459528] [drm] Initialized panfrost 1.6.0 for ffe40000.gpu on minor 0
[ 3.467012] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 3.505037] nvme nvme0: missing or invalid SUBNQN field.
[ 3.511649] meson-drm ff900000.vpu: CVBS Output connector not available
[ 3.559497] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 3.563884] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 3.571800] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 3.669785] hwmon hwmon2: temp1_input not attached to any thermal zone
[ 3.670788] hwmon hwmon2: temp2_input not attached to any thermal zone
[ 3.677292] hwmon hwmon2: temp3_input not attached to any thermal zone
[ 3.683780] hwmon hwmon2: temp9_input not attached to any thermal zone
[ 3.690199] nvme nvme0: passthrough uses implicit buffer lengths
[ 3.717239] nvme nvme0: allocated 32 MiB host memory buffer (8 segments).
[ 3.750590] nvme nvme0: 6/0/0 default/read/poll queues
[ 3.787187] dwc2 ff400000.usb: supply vusb_d not found, using dummy regulator
[ 3.788887] dwc2 ff400000.usb: supply vusb_a not found, using dummy regulator
[ 3.791978] meson-gx-mmc ffe03000.mmc: allocated mmc-pwrseq
[ 3.792458] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 3.792490] meson-drm ff900000.vpu: CVBS Output connector not available
[ 3.799689] dwc2 ff400000.usb: EPs: 7, dedicated fifos, 712 entries in SPRAM
[ 3.819535] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 3.831971] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 3.840154] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 3.856310] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 3.857670] meson-drm ff900000.vpu: CVBS Output connector not available
[ 3.888181] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 3.892638] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 3.900914] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 3.920619] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 3.921997] meson-drm ff900000.vpu: CVBS Output connector not available
[ 3.951490] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 3.955882] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 3.964276] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 3.982131] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 3.983526] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.011628] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.016049] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.024404] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.038410] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.039809] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.067668] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.083655] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.086435] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.098552] meson-gx-mmc ffe03000.mmc: card claims to support voltages below defined range
[ 4.103572] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.110063] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.126924] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 4.127060] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 1
[ 4.134573] xhci-hcd xhci-hcd.1.auto: hcc params 0x0228fe64 hci version 0x110 quirks 0x0000808000000010
[ 4.141086] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.143848] xhci-hcd xhci-hcd.1.auto: irq 41, io mem 0xff500000
[ 4.151521] mmc2: new UHS-I speed SDR104 SDIO card at address 0001
[ 4.153870] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.159589] xhci-hcd xhci-hcd.1.auto: xHCI Host Controller
[ 4.166318] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.173466] xhci-hcd xhci-hcd.1.auto: new USB bus registered, assigned bus number 2
[ 4.190592] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.195475] xhci-hcd xhci-hcd.1.auto: Host supports USB 3.0 SuperSpeed
[ 4.195616] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 7.01
[ 4.202470] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.208902] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.208906] usb usb1: Product: xHCI Host Controller
[ 4.235766] usb usb1: Manufacturer: Linux 7.1.3.1-mnt-reform-arm64 xhci-hcd
[ 4.239502] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.242698] usb usb1: SerialNumber: xhci-hcd.1.auto
[ 4.243004] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.252912] hub 1-0:1.0: USB hub found
[ 4.257954] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.265323] hub 1-0:1.0: 2 ports detected
[ 4.277009] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.288749] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.320273] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.324766] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.332977] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.349302] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[ 4.350500] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.351878] usb usb2: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 7.01
[ 4.358725] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.366940] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 4.380709] usb usb2: Product: xHCI Host Controller
[ 4.385561] usb usb2: Manufacturer: Linux 7.1.3.1-mnt-reform-arm64 xhci-hcd
[ 4.392495] usb usb2: SerialNumber: xhci-hcd.1.auto
[ 4.397750] hub 2-0:1.0: USB hub found
[ 4.400241] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.401121] hub 2-0:1.0: 1 port detected
[ 4.411221] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.423185] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.440103] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.441497] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.476267] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.480807] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.489033] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.509435] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.510802] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.540269] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.544833] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.553105] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.572133] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.573493] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.599477] usb 1-2: new high-speed USB device number 2 using xhci-hcd
[ 4.607791] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.612351] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.620708] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.637723] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.639086] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.667968] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.672568] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.680931] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.699082] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.700475] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.727526] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.732113] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.740592] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.748789] usb 1-2: New USB device found, idVendor=0424, idProduct=2412, bcdDevice= b.b2
[ 4.756634] usb 1-2: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[ 4.759229] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.770695] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.799965] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.803787] hub 1-2:1.0: USB hub found
[ 4.806154] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.808023] hub 1-2:1.0: 2 ports detected
[ 4.816485] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.836510] usbcore: registered new device driver onboard-usb-dev
[ 4.844345] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.845739] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.879511] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.884020] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.892433] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.911555] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.912917] meson-drm ff900000.vpu: CVBS Output connector not available
[ 4.943526] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 4.949575] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 4.956402] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 4.973291] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 4.974658] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.003507] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.008758] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.016388] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.035518] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.036892] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.067521] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.072031] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.080421] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.098466] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.099852] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.119499] usb 1-2.1: new high-speed USB device number 3 using xhci-hcd
[ 5.127520] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.131987] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.140390] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.157656] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.159024] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.191513] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.196000] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.204384] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.221584] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.222956] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.231815] usb 1-2.1: New USB device found, idVendor=0451, idProduct=8142, bcdDevice= 1.00
[ 5.237847] usb 1-2.1: New USB device strings: Mfr=0, Product=0, SerialNumber=1
[ 5.245118] usb 1-2.1: SerialNumber: 0C010851A4CD
[ 5.256289] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.260810] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.269323] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.283819] hub 1-2.1:1.0: USB hub found
[ 5.283938] hub 1-2.1:1.0: 4 ports detected
[ 5.287867] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.293280] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.324166] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.328839] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.337614] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.356657] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.358023] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.387519] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.392060] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.400426] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.417617] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.418977] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.431489] usb 1-2.2: new full-speed USB device number 4 using xhci-hcd
[ 5.447504] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.451982] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.460378] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.475909] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.477269] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.507662] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.512594] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.520539] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.525337] usb 1-2.2: New USB device found, idVendor=1209, idProduct=6d07, bcdDevice= 0.01
[ 5.536926] usb 1-2.2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 5.544211] usb 1-2.2: Product: Pocket Reform System Controller 2.0
[ 5.544379] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.550435] usb 1-2.2: Manufacturer: MNT
[ 5.550441] usb 1-2.2: SerialNumber: DE635441932A1F34
[ 5.566328] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.599672] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.606245] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.612771] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.629996] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.631361] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.651488] usb 1-2.1.3: new full-speed USB device number 5 using xhci-hcd
[ 5.659524] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.664004] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.672392] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.689528] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.690894] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.723507] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.727971] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.736376] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.753560] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.754923] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.783524] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.787999] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.796404] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.813642] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.815009] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.843520] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.848007] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.856361] usb 1-2.1.3: New USB device found, idVendor=1209, idProduct=6d06, bcdDevice= 0.01
[ 5.856401] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.864033] usb 1-2.1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 5.880406] usb 1-2.1.3: Product: Pocket Reform Input 2.0
[ 5.885807] usb 1-2.1.3: Manufacturer: MNT
[ 5.887160] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.889854] usb 1-2.1.3: SerialNumber: DE62549203897A2C
[ 5.902016] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.935522] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 5.940849] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 5.948674] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 5.963653] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 5.965035] meson-drm ff900000.vpu: CVBS Output connector not available
[ 5.995565] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.000086] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.007486] usb 1-2.1.4: new high-speed USB device number 6 using xhci-hcd
[ 6.008580] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.025152] hid: raw HID events driver (C) Jiri Kosina
[ 6.033854] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.035405] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.064329] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.068864] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.077190] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.087087] usbcore: registered new interface driver usbhid
[ 6.090844] usbhid: USB HID core driver
[ 6.091524] random: crng init done
[ 6.094926] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.104993] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.121552] input: MNT Pocket Reform Input 2.0 Keyboard as /devices/platform/soc/ffe09000.usb/ff500000.usb/xhci-hcd.1.auto/usb1/1-2/1-2.1/1-2.1.3/1-2.1.3:1.0/0003:1209:6D06.0001/input/input1
[ 6.139525] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.144025] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.152410] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.168066] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.169446] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.199509] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.204000] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.212403] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.214138] usb 1-2.1.4: New USB device found, idVendor=2c7c, idProduct=0801, bcdDevice= 5.04
[ 6.228952] usb 1-2.1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 6.230833] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.236387] usb 1-2.1.4: Product: RM520N-GL
[ 6.236393] usb 1-2.1.4: Manufacturer: Quectel
[ 6.236398] usb 1-2.1.4: SerialNumber: d999e14b
[ 6.256438] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.287691] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.292708] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.300692] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.335055] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.336454] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.343687] input: MNT Pocket Reform Input 2.0 Mouse as /devices/platform/soc/ffe09000.usb/ff500000.usb/xhci-hcd.1.auto/usb1/1-2/1-2.1/1-2.1.3/1-2.1.3:1.0/0003:1209:6D06.0001/input/input2
[ 6.359967] input: MNT Pocket Reform Input 2.0 as /devices/platform/soc/ffe09000.usb/ff500000.usb/xhci-hcd.1.auto/usb1/1-2/1-2.1/1-2.1.3/1-2.1.3:1.0/0003:1209:6D06.0001/input/input3
[ 6.375845] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.375982] hid-generic 0003:1209:6D06.0001: input,hidraw0: USB HID v1.11 Keyboard [MNT Pocket Reform Input 2.0] on usb-xhci-hcd.1.auto-2.1.3/input0
[ 6.385883] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.407991] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.427410] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.428798] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.459651] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.464181] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.472475] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.477002] meson8b-dwmac ff3f0000.ethernet end0: renamed from eth0
[ 6.494693] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.496093] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.532604] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.537257] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.545486] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.564900] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.566268] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.596033] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.600642] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.608931] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.635279] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.636678] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.671577] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.676248] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.684592] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.707352] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.708814] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.739564] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.744220] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.752697] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.771423] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.772842] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.803576] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.808226] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.816781] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.836217] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.837592] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.867575] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.872252] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.880838] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.899414] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.900871] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.931558] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.936241] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 6.944853] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 6.960518] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 6.961886] meson-drm ff900000.vpu: CVBS Output connector not available
[ 6.991631] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 6.996374] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 7.004722] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 7.017735] SPI driver mnt_sc has no spi_device_id for mntre,system-controller
[ 7.019979] mnt_sc spi0.0: MNT System Controller v4
[ 7.021487] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 7.031648] meson-drm ff900000.vpu: CVBS Output connector not available
[ 7.063591] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 7.068383] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 7.077090] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 7.098319] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_probe] start...
[ 7.100096] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 0 1)
[ 7.109157] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 8 0)
[ 7.114482] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_probe] jdi_panel_add done.
[ 7.119077] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_probe] done.
[ 7.129777] meson-drm ff900000.vpu: viu-hold-fifo-lines from device tree: 0
[ 7.132910] meson-drm ff900000.vpu: CVBS Output connector not available
[ 7.163562] meson-dw-hdmi ff600000.hdmi-tx: Detected HDMI TX controller v2.01a with HDCP (meson_dw_hdmi_phy)
[ 7.168203] meson-dw-hdmi ff600000.hdmi-tx: registered DesignWare HDMI I2C bus driver
[ 7.176300] meson-drm ff900000.vpu: bound ff600000.hdmi-tx (ops meson_dw_hdmi_ops [meson_dw_hdmi])
[ 7.185072] [drm] Initialized meson 1.0.0 for ff900000.vpu on minor 1
[ 7.192440] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 0
[ 7.195310] reform2_lpc: loading out-of-tree module taints kernel.
[ 7.199187] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 7.205304] reform2_lpc: module verification failed: signature and/or required key missing - tainting kernel
[ 7.222843] meson-drm ff900000.vpu: [drm] kms: can't enable cloning when we probably wanted to.
[ 7.307494] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_prepare] prepared: 0
[ 7.307512] panel-mnt-pocket-reform ffd07000.dsi.0: [display] init in prepare...
[ 7.307517] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_power_on] panel version: 0
[ 7.411500] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_init] enabled: 0 prepared: 0
[ 7.412518] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_detect_version] read register 12a: 0x0
[ 7.412523] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_detect_version] detected panel_version: 2
[ 7.412527] panel-mnt-pocket-reform ffd07000.dsi.0: [mnt_panel_power_on] panel version: 2
[ 7.412534] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 0 0)
[ 7.519479] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 0 1)
[ 7.679466] panel-mnt-pocket-reform ffd07000.dsi.0: [display v2] sent tables OK
[ 7.779484] panel-mnt-pocket-reform ffd07000.dsi.0: [display v2] OK
[ 7.779487] mnt_sc spi0.0: [mntsc_gpio_set] (set-gpio 8 1)
[ 7.782888] mnt_sc spi0.0: enabling PWM display backlight control by MNT System Controller.
[ 7.783158] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_enable] enabled: 0 prepared: 1
[ 7.802233] Console: switching to colour frame buffer device 120x37
[ 7.928757] meson-drm ff900000.vpu: [drm] fb0: mesondrmfb frame buffer device
[ 7.930166] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 2
[ 7.944110] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 7.951767] meson-drm ff900000.vpu: [drm] kms: can't enable cloning when we probably wanted to.
[ 8.002976] panel-mnt-pocket-reform ffd07000.dsi.0: [jdi_panel_get_modes] panel_version: 2
[ 8.002996] panel-mnt-pocket-reform ffd07000.dsi.0: vsync-shift from device tree: 1
[ 8.003035] meson-drm ff900000.vpu: [drm] kms: can't enable cloning when we probably wanted to.
[ 8.147074] device-mapper: core: CONFIG_IMA_DISABLE_HTABLE is disabled. Duplicate IMA measurements will not be recorded in the IMA log.
[ 8.147187] device-mapper: uevent: version 1.0.3
[ 8.147679] device-mapper: ioctl: 4.50.0-ioctl (2025-04-28) initialised: dm-devel@lists.linux.dev
[ 41.587480] raid6: neonx8 gen() 5402 MB/s
[ 41.655455] raid6: neonx4 gen() 6362 MB/s
[ 41.723457] raid6: neonx2 gen() 4988 MB/s
[ 41.791457] raid6: neonx1 gen() 3622 MB/s
[ 41.859474] raid6: int64x8 gen() 2822 MB/s
[ 41.927470] raid6: int64x4 gen() 3117 MB/s
[ 41.995458] raid6: int64x2 gen() 2995 MB/s
[ 42.063478] raid6: int64x1 gen() 2460 MB/s
[ 42.065920] raid6: using algorithm neonx4 gen() 6362 MB/s
[ 42.135469] raid6: .... xor() 4735 MB/s, rmw enabled
[ 42.137693] raid6: using neon recovery algorithm
[ 42.157999] xor: measuring software checksum speed
[ 42.160676] neon : 8227 MB/sec
[ 42.164117] 32regs : 8838 MB/sec
[ 42.164490] 8regs : 8860 MB/sec
[ 42.164492] xor: using function: 8regs (8860 MB/sec)
[ 42.288750] Btrfs loaded, zoned=yes, fsverity=yes
[ 43.531608] EXT4-fs (dm-2): orphan cleanup on readonly fs
[ 43.534071] EXT4-fs (dm-2): mounted filesystem e08dd2d4-cd41-4979-a6ba-362b1418b90f ro with ordered data mode. Quota mode: none.
[ 43.758522] Not activating Mandatory Access Control as /sbin/tomoyo-init does not exist.
[ 43.930695] systemd[1]: Inserted module 'autofs4'
[ 44.003540] systemd[1]: systemd 257.13-1~deb13u1 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +IPE +SMACK +SECCOMP +GCRYPT -GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 -IDN +IPTC +KMOD +LIBCRYPTSETUP +LIBCRYPTSETUP_PLUGINS +LIBFDISK +PCRE2 +PWQUALITY +P11KIT +QRENCODE +TPM2 +BZIP2 +LZ4 +XZ +ZLIB +ZSTD +BPF_FRAMEWORK +BTF -XKBCOMMON -UTMP +SYSVINIT +LIBARCHIVE)
[ 44.043079] systemd[1]: Detected architecture arm64.
[ 44.063332] systemd[1]: Hostname set to <The-Reform-False-God-Of-The-Abyss-Entropys-Paradox-Conqueror-Of>.
[ 44.238288] systemd[1]: bpf-restrict-fs: Failed to load BPF object: No such process
[ 44.952188] systemd[1]: Queued start job for default target graphical.target.
[ 45.002787] systemd[1]: Created slice system-getty.slice - Slice /system/getty.
[ 45.008567] systemd[1]: Created slice system-modprobe.slice - Slice /system/modprobe.
[ 45.022149] systemd[1]: Created slice system-serial\x2dgetty.slice - Slice /system/serial-getty.
[ 45.036615] systemd[1]: Created slice system-systemd\x2dfsck.slice - Slice /system/systemd-fsck.
[ 45.050884] systemd[1]: Created slice user.slice - User and Session Slice.
[ 45.063004] systemd[1]: Started systemd-ask-password-wall.path - Forward Password Requests to Wall Directory Watch.
[ 45.079636] systemd[1]: Set up automount proc-sys-fs-binfmt_misc.automount - Arbitrary Executable File Formats File System Automount Point.
[ 45.100971] systemd[1]: Expecting device dev-disk-by\x2duuid-4665549e\x2d3b8d\x2d436d\x2d90b2\x2d98ac34a013f4.device - /dev/disk/by-uuid/4665549e-3b8d-436d-90b2-98ac34a013f4...
[ 45.119626] systemd[1]: Expecting device dev-mmcblk1p1.device - /dev/mmcblk1p1...
[ 45.129218] systemd[1]: Expecting device dev-ttyAML0.device - /dev/ttyAML0...
[ 45.136462] systemd[1]: Reached target slices.target - Slice Units.
[ 45.144544] systemd[1]: Listening on dm-event.socket - Device-mapper event daemon FIFOs.
[ 45.152495] systemd[1]: Listening on lvm2-lvmpolld.socket - LVM2 poll daemon socket.
[ 45.164442] systemd[1]: Listening on systemd-creds.socket - Credential Encryption/Decryption.
[ 45.171148] systemd[1]: Listening on systemd-initctl.socket - initctl Compatibility Named Pipe.
[ 45.181029] systemd[1]: Listening on systemd-journald-dev-log.socket - Journal Socket (/dev/log).
[ 45.190384] systemd[1]: Listening on systemd-journald.socket - Journal Sockets.
[ 45.197971] systemd[1]: systemd-pcrextend.socket - TPM PCR Measurements skipped, unmet condition check ConditionSecurity=measured-uki
[ 45.198020] systemd[1]: systemd-pcrlock.socket - Make TPM PCR Policy skipped, unmet condition check ConditionSecurity=measured-uki
[ 45.198262] systemd[1]: Listening on systemd-udevd-control.socket - udev Control Socket.
[ 45.233311] systemd[1]: Listening on systemd-udevd-kernel.socket - udev Kernel Socket.
[ 45.245140] systemd[1]: Mounting dev-hugepages.mount - Huge Pages File System...
[ 45.254746] systemd[1]: Mounting dev-mqueue.mount - POSIX Message Queue File System...
[ 45.261980] systemd[1]: run-lock.mount: Directory /run/lock to mount over is not empty, mounting anyway.
[ 45.277150] systemd[1]: Mounting run-lock.mount - Legacy Locks Directory /run/lock...
[ 45.290410] systemd[1]: Mounting sys-kernel-debug.mount - Kernel Debug File System...
[ 45.303777] systemd[1]: Mounting sys-kernel-tracing.mount - Kernel Trace File System...
[ 45.316541] systemd[1]: Starting blk-availability.service - Availability of block devices...
[ 45.333428] systemd[1]: Starting keyboard-setup.service - Set the console keyboard layout...
[ 45.347740] systemd[1]: Starting kmod-static-nodes.service - Create List of Static Device Nodes...
[ 45.361557] systemd[1]: Starting lvm2-monitor.service - Monitoring of LVM2 mirrors, snapshots etc. using dmeventd or progress polling...
[ 45.381660] systemd[1]: Starting modprobe@configfs.service - Load Kernel Module configfs...
[ 45.395803] systemd[1]: Starting modprobe@drm.service - Load Kernel Module drm...
[ 45.409128] systemd[1]: Starting modprobe@efi_pstore.service - Load Kernel Module efi_pstore...
[ 45.419674] systemd[1]: Starting modprobe@fuse.service - Load Kernel Module fuse...
[ 45.428745] systemd[1]: Starting modprobe@nvme_fabrics.service - Load Kernel Module nvme_fabrics...
[ 45.436983] systemd[1]: systemd-fsck-root.service - File System Check on Root Device skipped, unmet condition check ConditionPathExists=!/run/initramfs/fsck-root
[ 45.437119] systemd[1]: systemd-hibernate-clear.service - Clear Stale Hibernate Storage Info skipped, unmet condition check ConditionPathExists=/sys/firmware/efi/efivars/HibernateLocation-8cf2644b-4b0b-428f-9387-6d876050dc67
[ 45.475565] systemd[1]: Starting systemd-journald.service - Journal Service...
[ 45.490564] systemd[1]: Starting systemd-modules-load.service - Load Kernel Modules...
[ 45.497323] systemd[1]: systemd-pcrmachine.service - TPM PCR Machine ID Measurement skipped, unmet condition check ConditionSecurity=measured-uki
[ 45.502101] systemd[1]: Starting systemd-remount-fs.service - Remount Root and Kernel File Systems...
[ 45.528192] systemd[1]: systemd-tpm2-setup-early.service - Early TPM SRK Setup skipped, unmet condition check ConditionSecurity=measured-uki
[ 45.531594] systemd[1]: Starting systemd-udev-load-credentials.service - Load udev Rules from Credentials...
[ 45.555642] i2c_dev: i2c /dev entries driver
[ 45.559562] systemd[1]: Starting systemd-udev-trigger.service - Coldplug All udev Devices...
[ 45.576479] systemd[1]: Mounted dev-hugepages.mount - Huge Pages File System.
[ 45.584082] systemd[1]: Mounted dev-mqueue.mount - POSIX Message Queue File System.
[ 45.591279] systemd[1]: Mounted run-lock.mount - Legacy Locks Directory /run/lock.
[ 45.592428] EXT4-fs (dm-2): re-mounted e08dd2d4-cd41-4979-a6ba-362b1418b90f r/w.
[ 45.607800] systemd[1]: Mounted sys-kernel-debug.mount - Kernel Debug File System.
[ 45.609082] systemd-journald[703]: Collecting audit messages is disabled.
[ 45.621911] systemd[1]: Mounted sys-kernel-tracing.mount - Kernel Trace File System.
[ 45.629956] systemd[1]: Finished blk-availability.service - Availability of block devices.
[ 45.638478] systemd[1]: Finished keyboard-setup.service - Set the console keyboard layout.
[ 45.646525] systemd[1]: Finished kmod-static-nodes.service - Create List of Static Device Nodes.
[ 45.655288] systemd[1]: Finished lvm2-monitor.service - Monitoring of LVM2 mirrors, snapshots etc. using dmeventd or progress polling.
[ 45.667996] systemd[1]: modprobe@configfs.service: Deactivated successfully.
[ 45.668528] systemd[1]: Finished modprobe@configfs.service - Load Kernel Module configfs.
[ 45.683208] systemd[1]: modprobe@drm.service: Deactivated successfully.
[ 45.683854] systemd[1]: Finished modprobe@drm.service - Load Kernel Module drm.
[ 45.697069] systemd[1]: modprobe@efi_pstore.service: Deactivated successfully.
[ 45.697585] systemd[1]: Finished modprobe@efi_pstore.service - Load Kernel Module efi_pstore.
[ 45.712783] systemd[1]: modprobe@fuse.service: Deactivated successfully.
[ 45.713289] systemd[1]: Finished modprobe@fuse.service - Load Kernel Module fuse.
[ 45.726876] systemd[1]: modprobe@nvme_fabrics.service: Deactivated successfully.
[ 45.727362] systemd[1]: Finished modprobe@nvme_fabrics.service - Load Kernel Module nvme_fabrics.
[ 45.743412] systemd[1]: Finished systemd-modules-load.service - Load Kernel Modules.
[ 45.750551] systemd[1]: Started systemd-journald.service - Journal Service.
[ 45.885550] systemd-journald[703]: Received client request to flush runtime journal.
[ 45.921658] systemd-journald[703]: /var/log/journal/361c6eb20a9c49e08092b2fffe1c2f11/system.journal: Realtime clock jumped backwards relative to last journal entry, rotating.
[ 45.935264] systemd-journald[703]: Rotating system journal.
[ 46.403273] Adding 4194300k swap on /dev/mapper/reformvg-swap. Priority:-1 extents:1 across:4194300k SS
[ 46.789431] EXT4-fs (mmcblk1p1): mounted filesystem 9765ef0b-5ec6-5764-9b72-f2de518e0628 r/w with ordered data mode. Quota mode: none.
[ 47.026501] audit: type=1400 audit(1784831712.096:2): apparmor="STATUS" operation="profile_load" profile="unconfined" name="adbd" pid=848 comm="apparmor_parser"
[ 47.040225] audit: type=1400 audit(1784831712.104:3): apparmor="STATUS" operation="profile_load" profile="unconfined" name="Discord" pid=843 comm="apparmor_parser"
[ 47.055061] audit: type=1400 audit(1784831712.104:4): apparmor="STATUS" operation="profile_load" profile="unconfined" name="1password" pid=842 comm="apparmor_parser"
[ 47.055080] audit: type=1400 audit(1784831712.104:5): apparmor="STATUS" operation="profile_load" profile="unconfined" name=4D6F6E676F444220436F6D70617373 pid=844 comm="apparmor_parser"
[ 47.055084] audit: type=1400 audit(1784831712.104:6): apparmor="STATUS" operation="profile_load" profile="unconfined" name="QtWebEngineProcess" pid=845 comm="apparmor_parser"
[ 47.055091] audit: type=1400 audit(1784831712.116:7): apparmor="STATUS" operation="profile_load" profile="unconfined" name="balena-etcher" pid=850 comm="apparmor_parser"
[ 47.055098] audit: type=1400 audit(1784831712.116:8): apparmor="STATUS" operation="profile_load" profile="unconfined" name="buildah" pid=853 comm="apparmor_parser"
[ 47.055103] audit: type=1400 audit(1784831712.116:9): apparmor="STATUS" operation="profile_load" profile="unconfined" name="busybox" pid=854 comm="apparmor_parser"
[ 47.056208] audit: type=1400 audit(1784831712.128:10): apparmor="STATUS" operation="profile_load" profile="unconfined" name="cam" pid=855 comm="apparmor_parser"
[ 47.057800] audit: type=1400 audit(1784831712.128:11): apparmor="STATUS" operation="profile_load" profile="unconfined" name="ch-checkns" pid=857 comm="apparmor_parser"
[ 47.225024] hdmi-audio-codec hdmi-audio-codec.3.auto: HDMI: Unknown ELD version 0
[ 47.266970] axg-sound-card sound: workaround active: internal PCM chmap controls mapped to device 0
[ 47.365220] usbcore: registered new interface driver usbserial_generic
[ 47.384975] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[ 47.390929] usbserial: USB Serial support registered for generic
[ 47.398164] Loaded X.509 cert 'benh@debian.org: 577e021cb980e0e820821ba7b54b4961b8b4fadf'
[ 47.406299] Loaded X.509 cert 'romain.perier@gmail.com: 3abbc6ec146e09d1b6016ab9d6cf71dd233f0328'
[ 47.406665] Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[ 47.407013] Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
[ 47.471189] Bluetooth: Core ver 2.22
[ 47.501239] NET: Registered PF_BLUETOOTH protocol family
[ 47.506032] Bluetooth: HCI device and connection manager initialized
[ 47.510475] Bluetooth: HCI socket layer initialized
[ 47.510495] Bluetooth: L2CAP socket layer initialized
[ 47.510529] Bluetooth: SCO socket layer initialized
[ 47.564267] usbcore: registered new interface driver option
[ 47.566991] usbserial: USB Serial support registered for GSM modem (1-port)
[ 47.577347] option 1-2.1.4:1.0: GSM modem (1-port) converter detected
[ 47.579288] usb 1-2.1.4: GSM modem (1-port) converter now attached to ttyUSB0
[ 47.613969] option 1-2.1.4:1.1: GSM modem (1-port) converter detected
[ 47.633193] usb 1-2.1.4: GSM modem (1-port) converter now attached to ttyUSB1
[ 47.638744] option 1-2.1.4:1.2: GSM modem (1-port) converter detected
[ 47.706409] usb 1-2.1.4: GSM modem (1-port) converter now attached to ttyUSB2
[ 47.710610] option 1-2.1.4:1.3: GSM modem (1-port) converter detected
[ 47.717592] usb 1-2.1.4: GSM modem (1-port) converter now attached to ttyUSB3
[ 47.757041] Bluetooth: HCI UART driver ver 2.3
[ 47.758643] Bluetooth: HCI UART protocol H4 registered
[ 47.777961] Bluetooth: HCI UART protocol LL registered
[ 47.779928] Bluetooth: HCI UART protocol ATH3K registered
[ 47.784919] Bluetooth: HCI UART protocol Three-wire (H5) registered
[ 47.800365] Bluetooth: HCI UART protocol Intel registered
[ 47.805226] rtw88_8822cs mmc2:0001:1: WOW Firmware version 9.9.4, H2C version 15
[ 47.806339] rtw88_8822cs mmc2:0001:1: Firmware version 9.9.15, H2C version 15
[ 47.815732] cdc_acm 1-2.2:1.0: ttyACM0: USB ACM device
[ 47.828339] Bluetooth: HCI UART protocol Broadcom registered
[ 47.836201] usbcore: registered new interface driver cdc_wdm
[ 47.844967] Bluetooth: HCI UART protocol QCA registered
[ 47.846549] usbcore: registered new interface driver cdc_acm
[ 47.847513] Bluetooth: HCI UART protocol AG6XX registered
[ 47.856217] cdc_acm: USB Abstract Control Model driver for USB modems and ISDN adapters
[ 47.867857] Bluetooth: HCI UART protocol Marvell registered
[ 48.463052] Bluetooth: hci0: RTL: examining hci_ver=0a hci_rev=000c lmp_ver=0a lmp_subver=8822
[ 48.472081] Bluetooth: hci0: RTL: rom_version status=0 version=3
[ 48.476621] Bluetooth: hci0: RTL: btrtl_initialize: key id 0
[ 48.482577] Bluetooth: hci0: RTL: loading rtl_bt/rtl8822cs_fw.bin
[ 48.484339] qmi_wwan 1-2.1.4:1.4: cdc-wdm0: USB WDM device
[ 48.484374] Bluetooth: hci0: RTL: loading rtl_bt/rtl8822cs_config.bin
[ 48.501629] qmi_wwan 1-2.1.4:1.4 wwan0: register 'qmi_wwan' at usb-xhci-hcd.1.auto-2.1.4, WWAN/QMI device, 6a:46:4c:c9:b7:06
[ 48.501798] usbcore: registered new interface driver qmi_wwan
[ 48.507552] Bluetooth: hci0: RTL: cfg_sz 33, total sz 38425
[ 48.508319] qmi_wwan 1-2.1.4:1.4 wwu2u1u4i4: renamed from wwan0
[ 48.845355] Bluetooth: BNEP (Ethernet Emulation) ver 1.3
[ 48.848663] Bluetooth: BNEP filters: protocol multicast
[ 48.853504] Bluetooth: BNEP socket layer initialized
[ 49.009584] meson8b-dwmac ff3f0000.ethernet end0: stmmac_dvr_remove: removing driver
[ 49.102909] Bluetooth: hci0: RTL: fw version 0xb5d66dcb
[ 49.196173] Bluetooth: MGMT ver 1.23
[ 49.249403] NET: Registered PF_ALG protocol family
[ 49.334319] Bluetooth: RFCOMM TTY layer initialized
[ 49.336887] Bluetooth: RFCOMM socket layer initialized
[ 49.341294] Bluetooth: RFCOMM ver 1.11
[ 49.380323] NET: Registered PF_QIPCRTR protocol family
[ 54.872089] meson8b-dwmac ff3f0000.ethernet: IRQ eth_wake_irq not found
[ 54.875069] meson8b-dwmac ff3f0000.ethernet: IRQ sfty not found
[ 54.881142] meson8b-dwmac ff3f0000.ethernet: PTP uses main clock
[ 54.881633] meson8b-dwmac ff3f0000.ethernet: User ID: 0x11, Synopsys ID: 0x37
[ 54.881649] meson8b-dwmac ff3f0000.ethernet: DWMAC1000
[ 54.881653] meson8b-dwmac ff3f0000.ethernet: DMA HW capability register supported
[ 54.881656] meson8b-dwmac ff3f0000.ethernet: Active PHY interface: GMII/MII (0)
[ 54.881658] meson8b-dwmac ff3f0000.ethernet: RX Checksum Offload Engine supported
[ 54.881661] meson8b-dwmac ff3f0000.ethernet: COE Type 2
[ 54.881663] meson8b-dwmac ff3f0000.ethernet: TX Checksum insertion supported
[ 54.881664] meson8b-dwmac ff3f0000.ethernet: Wake-Up On Lan supported
[ 54.881668] meson8b-dwmac ff3f0000.ethernet: Normal descriptors
[ 54.881670] meson8b-dwmac ff3f0000.ethernet: Ring mode enabled
[ 54.881672] meson8b-dwmac ff3f0000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[ 55.557254] netfs: FS-Cache loaded
[ 55.568466] Key type dns_resolver registered
[ 55.630911] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[ 55.720814] Key type cifs.spnego registered
[ 55.722795] Key type cifs.idmap registered
[ 55.729293] CIFS: No dialect specified on mount. Default has changed to a more secure dialect, SMB2.1 or later (e.g. SMB3.1.1), from CIFS (SMB1). To use the less secure SMB1 dialect to access old servers which do not support SMB3.1.1 (or even SMB3 or SMB2.1) specify vers=1.0 on mount.
[ 55.729293] CIFS: No dialect specified on mount. Default has changed to a more secure dialect, SMB2.1 or later (e.g. SMB3.1.1), from CIFS (SMB1). To use the less secure SMB1 dialect to access old servers which do not support SMB3.1.1 (or even SMB3 or SMB2.1) specify vers=1.0 on mount.
[ 55.729304] CIFS: enabling forceuid mount option implicitly because uid= option is specified
[ 55.729307] CIFS: Attempting to mount //10.0.0.13/Volume_Main
[ 55.733760] CIFS: enabling forceuid mount option implicitly because uid= option is specified
[ 55.734377] CIFS: enabling forceuid mount option implicitly because uid= option is specified
[ 55.816541] CIFS: VFS: Error connecting to socket. Aborting operation.
[ 55.816552] CIFS: VFS: cifs_mount failed w/return code = -101
[ 55.816603] CIFS: Attempting to mount //10.0.0.13/Home
[ 55.816825] CIFS: VFS: Error connecting to socket. Aborting operation.
[ 55.816839] CIFS: VFS: cifs_mount failed w/return code = -101
[ 55.817328] CIFS: Attempting to mount //10.0.0.13/Volume_Sec
[ 55.817430] CIFS: VFS: Error connecting to socket. Aborting operation.
[ 55.817437] CIFS: VFS: cifs_mount failed w/return code = -101
[ 56.013826] kauditd_printk_skb: 127 callbacks suppressed
[ 56.013843] audit: type=1400 audit(1784831721.084:139): apparmor="STATUS" operation="profile_replace" info="same as current profile, skipping" profile="unconfined" name="/usr/bin/lxc-copy" pid=1361 comm="apparmor_parser"
[ 56.038191] audit: type=1400 audit(1784831721.104:140): apparmor="STATUS" operation="profile_replace" info="same as current profile, skipping" profile="unconfined" name="/usr/bin/lxc-start" pid=1365 comm="apparmor_parser"
[ 56.079973] audit: type=1400 audit(1784831721.152:141): apparmor="STATUS" operation="profile_replace" info="same as current profile, skipping" profile="unconfined" name="lxc-container-default" pid=1369 comm="apparmor_parser"
[ 56.102228] audit: type=1400 audit(1784831721.152:142): apparmor="STATUS" operation="profile_replace" info="same as current profile, skipping" profile="unconfined" name="lxc-container-default-cgns" pid=1369 comm="apparmor_parser"
[ 56.123612] audit: type=1400 audit(1784831721.152:143): apparmor="STATUS" operation="profile_replace" info="same as current profile, skipping" profile="unconfined" name="lxc-container-default-with-mounting" pid=1369 comm="apparmor_parser"
[ 56.148867] audit: type=1400 audit(1784831721.152:144): apparmor="STATUS" operation="profile_replace" info="same as current profile, skipping" profile="unconfined" name="lxc-container-default-with-nesting" pid=1369 comm="apparmor_parser"
[ 56.148881] audit: type=1400 audit(1784831721.152:145): apparmor="STATUS" operation="profile_replace" info="same as current profile, skipping" profile="unconfined" name="lxc-waydroid" pid=1369 comm="apparmor_parser"
[ 56.601777] audit: type=1400 audit(1784831721.672:146): apparmor="DENIED" operation="open" class="file" profile="/usr/sbin/cupsd" name="/etc/paperspecs" pid=1392 comm="cupsd" requested_mask="r" denied_mask="r" fsuid=0 ouid=0
[ 56.679288] audit: type=1400 audit(1784831721.748:147): apparmor="DENIED" operation="capable" class="cap" profile="/usr/sbin/cupsd" pid=1392 comm="cupsd" capability=12 capname="net_admin"
[ 57.925926] meson8b-dwmac ff3f0000.ethernet end0: renamed from eth0
[ 57.983440] rtw88_8822cs mmc2:0001:1: firmware failed to report density after scan
[ 58.091929] meson8b-dwmac ff3f0000.ethernet end0: Register MEM_TYPE_PAGE_POOL RxQ-0
[ 58.123543] meson8b-dwmac ff3f0000.ethernet end0: PHY [mdio_mux-0.0:00] driver [RTL8211F Gigabit Ethernet] (irq=51)
[ 58.143456] meson8b-dwmac ff3f0000.ethernet end0: No Safety Features support found
[ 58.148543] meson8b-dwmac ff3f0000.ethernet end0: PTP not supported by HW
[ 58.154803] meson8b-dwmac ff3f0000.ethernet end0: configuring for phy/rgmii-txid link mode
[ 58.278174] mmc2: card 0001 removed
[ 58.313802] meson-gx-mmc ffe03000.mmc: allocated mmc-pwrseq
[ 58.588931] meson-gx-mmc ffe03000.mmc: card claims to support voltages below defined range
[ 58.675256] mmc2: new UHS-I speed SDR104 SDIO card at address 0001
[ 58.683344] rtw88_8822cs mmc2:0001:1: Firmware version 9.9.15, H2C version 15
[ 58.683855] rtw88_8822cs mmc2:0001:1: WOW Firmware version 9.9.4, H2C version 15
Debian GNU/Linux 13 The-Reform-False-God-Of-The-Abyss-Entropys-Paradox-Conqueror-Of ttyAML0
The-Reform-False-God-Of-The-Abyss-Entropys-Paradox-Conqueror-Of login: [ 75.022969] wlan0: authenticate with 28:70:4e:4e:d0:0e (local address=c4:3c:b0:ad:ce:4d)
[ 76.005503] wlan0: send auth to 28:70:4e:4e:d0:0e (try 1/3)
[ 76.094115] wlan0: authenticate with 28:70:4e:4e:d0:0e (local address=c4:3c:b0:ad:ce:4d)
[ 76.138853] wlan0: send auth to 28:70:4e:4e:d0:0e (try 1/3)
[ 76.147869] wlan0: authenticated
[ 76.154937] wlan0: associate with 28:70:4e:4e:d0:0e (try 1/3)
[ 76.222046] wlan0: RX AssocResp from 28:70:4e:4e:d0:0e (capab=0x1111 status=0 aid=12)
[ 76.288278] wlan0: associated
[ 79.235140] rtw88_8822cs mmc2:0001:1: Failed to read 424 byte(s) from SDIO port 0x00000027: -84
The-Reform-False-God-Of-The-Abyss-Entropys-Paradox-Conqueror-Of login: nebula
Password:
Linux The-Reform-False-God-Of-The-Abyss-Entropys-Paradox-Conqueror-Of 7.1.3.1-mnt-reform-arm64 #1 SMP PREEMPT Debian 7.1.3-1~bpo13+1+reform20260812T225358Z (20 aarch64
▒ ▒ ▒
██▒ ██▒ ██▒ Welcome to Debian GNU/Linux
████▒ ████▒ ████▒ ██████▒ on MNT Reform
██████▒ ██████▒ ██████▒ ██████▒ System Image v5: 2025-08-27
███████████████████████████
███▒███████▒███████▒███████ https://mntre.com/reform
███ ▒█████ ▒█████ ▒█████ https://www.debian.org
▒███ ▒███ ▒███
▒█ ▒█ ▒█ ████████████████████████
Some useful commands to explore the system:
Learn more about a command: man name-of-command
Move around: ls, cd, cd ..
See all running processes: htop
See system services: systemctl
Analyze disk usage: ncdu /
List hardware/peripherals: lsblk
lsusb
lspci
ip a
View this message again: reform-help
Read the Operator Handbook: pocket-reform-handbook (press % to fix contrast, Q to quit)
Set keyboard layout and timezone: sudo reform-config
Chat in Reform community: reform-chat
Select boot device: sudo reform-boot-config
Set up full disk encryption: sudo reform-setup-encrypted-disk
Migrate system to a partition: sudo reform-migrate
Flash latest bootloader: sudo reform-flash-bootloader
Re-initialize eMMC from scratch sudo reform-emmc-bootstrap
Flash rescue system to eMMC sudo reform-flash-rescue
Update / install software: sudo apt update
apt search keyword
sudo apt install package
View a text file: less filename
Edit a text file: micro filename
Log out: exit
Most programs can be quit with Ctrl+C, Q, or Ctrl+Q.
Exit the chat with /quit.
nebula@The-Reform-False-God-Of-The-Abyss-Entropys-Paradox-Conqueror-Of:~$ [ 90.019066] fe.dai-link-1: ASoC: no backend DAIs enabled for fe.dai-link-1, possibly missing ALSA mixer-based routing or UCM profile
nebula@The-Reform-False-God-Of-The-Abyss-Entropys-Paradox-Conqueror-Of:~$ [ 137.990455] rtw88_8822cs mmc2:0001:1: firmware failed to report density after scan
nebula@The-Reform-False-God-Of-The-Abyss-Entropys-Paradox-Conqueror-Of:~$ [ 226.264439] rtw88_8822cs mmc2:0001:1: firmware failed to report density after scan
gonna try starting gdm since i disabled last time before i reseated as an attempt to see if that would help, doing so does get me into gnome, and i do have a desktop, but the screen half grey persists, and the scaling is 100% and there’s some odd artifacting on the screen still
gonna reboot and report back if leaving gnome enabled still works, and if the half grey persists.
ok rebooted twice and the grey is gone. the only issue is that gnome isn’t working. going to reinstall it and see if that fixes things.
OK, very good, then it was a hardware/cable issue. The half screen bug is well known, but I fixed the last instances of it probably one or two days after @josch did the driver backports (I haven’t looked at the backported panel driver yet, but the symptom and the log looks like the most likely explanation). So this should improve once @josch integrates my latest changes.
1 Like
yeah i was lowkey losing my mind for a bit there. love to bits the fact i can just, open it, but hate hate hate hate HATE that accidents happen with that sometimes. when in doubt, reseat le sigh
1 Like
Now imagine you have to assemble and test 1000 of them ^^
3 Likes
this was a long post about how i’d just go off the deep end of engineering my way around the problem but i can simplify it to this: i am so glad i do not have your job, and thank you for doing it
1 Like
any chance you know how to solve gnome not autostarting? (if not i’ll solve it myself, figured it’s a shot in the dark)
nebula@The-Reform-False-God-Of-The-Abyss-Entropys-Paradox-Conqueror-Of:~$ sudo systemctl enable gdm3
Synchronizing state of gdm3.service with SysV service script with /usr/lib/systemd/systemd-sysv-install.
Executing: /usr/lib/systemd/systemd-sysv-install enable gdm3
The unit files have no installation config (WantedBy=, RequiredBy=, UpheldBy=,
Also=, or Alias= settings in the [Install] section, and DefaultInstance= for
template units). This means they are not meant to be enabled or disabled using systemctl.
Possible reasons for having these kinds of units are:
• A unit may be statically enabled by being symlinked from another unit's
.wants/, .requires/, or .upholds/ directory.
• A unit's purpose may be to act as a helper for some other unit which has
a requirement dependency on it.
• A unit may be started when needed via activation (socket, path, timer,
D-Bus, udev, scripted systemctl call, ...).
• In case of template units, the unit is meant to be enabled with some
instance name specified.
edit: nevermind i fixed it, that was a thousand times easier than expected
Imagine assembling and testing 1000 of them and offer support to the units out in the wild and offer support to those who aren’t even running the official OS
2 Likes
