If the issue does not happen for you with 6.17.7 but it does happen with 7.1.3 with the same sd-card then it indeed does sound like a kernel regression.

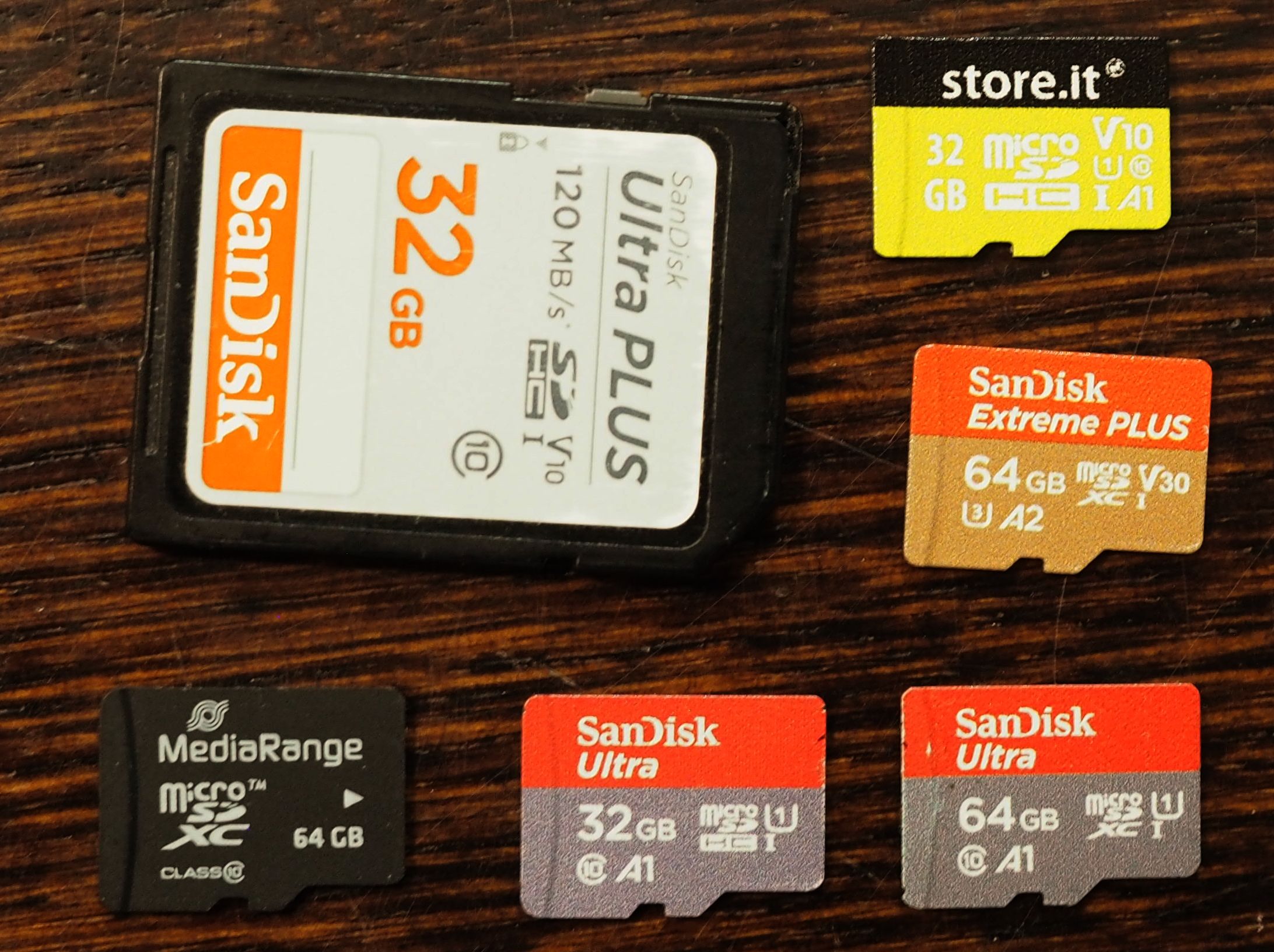

May I ask you @meluzzy and @max which sd-cards you are using? I have tried with these:
- SanDisk Extreme Plus (sdxc)
- SanDisk Ultra (sdhc)
- SanDisk Ultra Plus (sdhc)
- MediaRange (sdxc)
- store.it 32gb (microsd sdhc)
I’m unable to reproduce the issue. Here is the dmesg output for the store.it sd-card with kernel 7.1.3 on rk3588 with motherboard 3.0:
[ 0.000000] Booting Linux on physical CPU 0x0000000000 [0x412fd050]
[ 0.000000] Linux version 7.1.3-mnt-reform-arm64 (debian-kernel@lists.debian.org) (aarch64-linux-gnu-gcc-15 (Debian 15.3.0-1) 15.3.0, GNU ld (GNU Binutils for Debian) 2.46.50.20260617) #1 SMP PREEMPT Debian 7.1.3-1+reform20260705T102633Z (2026-07-05
[ 0.000000] KASLR enabled
[ 0.000000] Machine model: MNT Reform 2 with RCORE-DSI RK3588 Module
[ 0.000000] efi: UEFI not found.
[ 0.000000] OF: reserved mem: 0x000000000010f000..0x000000000010f0ff (0 KiB) nomap non-reusable shmem@10f000
[ 0.000000] NUMA: Faking a node at [mem 0x0000000000200000-0x00000004ffffffff]
[ 0.000000] NODE_DATA(0) allocated [mem 0x4fdf5dbc0-0x4fdf613bf]
[ 0.000000] cma: Reserved 256 MiB at 0x00000000da800000
[ 0.000000] psci: probing for conduit method from DT.
[ 0.000000] psci: PSCIv1.1 detected in firmware.
[ 0.000000] psci: Using standard PSCI v0.2 function IDs
[ 0.000000] psci: MIGRATE_INFO_TYPE not supported.
[ 0.000000] psci: SMC Calling Convention v1.5
[ 0.000000] Zone ranges:
[ 0.000000] DMA [mem 0x0000000000200000-0x00000000ffffffff]
[ 0.000000] DMA32 empty
[ 0.000000] Normal [mem 0x0000000100000000-0x00000004ffffffff]
[ 0.000000] Device empty
[ 0.000000] Movable zone start for each node
[ 0.000000] Early memory node ranges
[ 0.000000] node 0: [mem 0x0000000000200000-0x00000000efffffff]
[ 0.000000] node 0: [mem 0x0000000100000000-0x00000003fbffffff]
[ 0.000000] node 0: [mem 0x00000003fc500000-0x00000003ffefffff]
[ 0.000000] node 0: [mem 0x00000004f0000000-0x00000004ffffffff]
[ 0.000000] Initmem setup node 0 [mem 0x0000000000200000-0x00000004ffffffff]
[ 0.000000] On node 0, zone DMA: 512 pages in unavailable ranges
[ 0.000000] On node 0, zone Normal: 1280 pages in unavailable ranges
[ 0.000000] On node 0, zone Normal: 256 pages in unavailable ranges
[ 0.000000] percpu: Embedded 36 pages/cpu s108888 r8192 d30376 u147456
[ 0.000000] pcpu-alloc: s108888 r8192 d30376 u147456 alloc=36*4096
[ 0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3 [0] 4 [0] 5 [0] 6 [0] 7
[ 0.000000] Detected VIPT I-cache on CPU0
[ 0.000000] CPU features: detected: GICv3 CPU interface
[ 0.000000] CPU features: detected: Virtualization Host Extensions
[ 0.000000] CPU features: kernel page table isolation forced ON by KASLR
[ 0.000000] CPU features: detected: Kernel page table isolation (KPTI)
[ 0.000000] CPU features: detected: ARM errata 1165522, 1319367, or 1530923
[ 0.000000] alternatives: applying boot alternatives
[ 0.000000] Kernel command line: ro no_console_suspend cryptomgr.notests plymouth.ignore-serial-consoles pcie_aspm=off console=ttyS2,1500000 cma=256M swiotlb=65535 console=tty1
[ 0.000000] PCIe ASPM is disabled
[ 0.000000] printk: log buffer data + meta data: 131072 + 557056 = 688128 bytes
[ 0.000000] Dentry cache hash table entries: 2097152 (order: 12, 16777216 bytes, linear)
[ 0.000000] Inode-cache hash table entries: 1048576 (order: 11, 8388608 bytes, linear)
[ 0.000000] software IO TLB: area num 8.
[ 0.000000] software IO TLB: mapped [mem 0x00000000d2800000-0x00000000da800000] (128MB)
[ 0.000000] Fallback order for Node 0: 0
[ 0.000000] Built 1 zonelists, mobility grouping on. Total pages: 4192256
[ 0.000000] Policy zone: Normal
[ 0.000000] mem auto-init: stack:all(zero), heap alloc:on, heap free:off
[ 0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=8, Nodes=1
[ 0.000000] ftrace: allocating 57388 entries in 226 pages
[ 0.000000] ftrace: allocated 226 pages with 4 groups
[ 0.000000] rcu: Hierarchical RCU implementation.
[ 0.000000] rcu: RCU restricting CPUs from NR_CPUS=512 to nr_cpu_ids=8.
[ 0.000000] Trampoline variant of Tasks RCU enabled.
[ 0.000000] Rude variant of Tasks RCU enabled.
[ 0.000000] Tracing variant of Tasks RCU enabled.
[ 0.000000] rcu: RCU calculated value of scheduler-enlistment delay is 25 jiffies.
[ 0.000000] rcu: Adjusting geometry for rcu_fanout_leaf=16, nr_cpu_ids=8
[ 0.000000] RCU Tasks: Setting shift to 3 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=8.
[ 0.000000] RCU Tasks Rude: Setting shift to 3 and lim to 1 rcu_task_cb_adjust=1 rcu_task_cpu_ids=8.
[ 0.000000] NR_IRQS: 64, nr_irqs: 64, preallocated irqs: 0
[ 0.000000] GIC: enabling workaround for GICv3: non-coherent attribute
[ 0.000000] GICv3: GIC: Using split EOI/Deactivate mode
[ 0.000000] GICv3: 480 SPIs implemented
[ 0.000000] GICv3: 0 Extended SPIs implemented
[ 0.000000] GICv3: MBI range [424:479]
[ 0.000000] GICv3: Using MBI frame 0x00000000fe610000
[ 0.000000] Root IRQ handler: gic_handle_irq
[ 0.000000] GICv3: GICv3 features: 16 PPIs
[ 0.000000] GICv3: GICD_CTLR.DS=0, SCR_EL3.FIQ=0
[ 0.000000] GICv3: CPU0: found redistributor 0 region 0:0x00000000fe680000
[ 0.000000] ITS [mem 0xfe640000-0xfe65ffff]
[ 0.000000] GIC: enabling workaround for ITS: Rockchip erratum RK3588001
[ 0.000000] GIC: enabling workaround for ITS: non-coherent attribute
[ 0.000000] ITS@0x00000000fe640000: allocated 8192 Devices @100260000 (indirect, esz 8, psz 64K, shr 0)
[ 0.000000] ITS@0x00000000fe640000: allocated 32768 Interrupt Collections @100270000 (flat, esz 2, psz 64K, shr 0)
[ 0.000000] ITS: using cache flushing for cmd queue
[ 0.000000] ITS [mem 0xfe660000-0xfe67ffff]
[ 0.000000] GIC: enabling workaround for ITS: Rockchip erratum RK3588001
[ 0.000000] GIC: enabling workaround for ITS: non-coherent attribute
[ 0.000000] ITS@0x00000000fe660000: allocated 8192 Devices @100290000 (indirect, esz 8, psz 64K, shr 0)
[ 0.000000] ITS@0x00000000fe660000: allocated 32768 Interrupt Collections @1002a0000 (flat, esz 2, psz 64K, shr 0)
[ 0.000000] ITS: using cache flushing for cmd queue
[ 0.000000] GICv3: using LPI property table @0x00000001002b0000
[ 0.000000] GIC: using cache flushing for LPI property table
[ 0.000000] GICv3: CPU0: using allocated LPI pending table @0x00000001002c0000
[ 0.000000] GICv3: GIC: PPI partition interrupt-partition-0[0] { /cpus/cpu@0[0] /cpus/cpu@100[1] /cpus/cpu@200[2] /cpus/cpu@300[3] }
[ 0.000000] GICv3: GIC: PPI partition interrupt-partition-1[1] { /cpus/cpu@400[4] /cpus/cpu@500[5] /cpus/cpu@600[6] /cpus/cpu@700[7] }
[ 0.000000] rcu: srcu_init: Setting srcu_struct sizes based on contention.
[ 0.000000] arch_timer: cp15 timer running at 24.00MHz (phys).
[ 0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[ 0.000000] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[ 0.003607] Console: colour dummy device 80x25
[ 0.003625] printk: legacy console [tty1] enabled
[ 0.005673] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[ 0.005713] pid_max: default: 32768 minimum: 301
[ 0.010109] landlock: Up and running.
[ 0.010132] Yama: disabled by default; enable with sysctl kernel.yama.*
[ 0.010498] AppArmor: AppArmor initialized
[ 0.010608] TOMOYO Linux initialized
[ 0.011268] LSM support for eBPF active
[ 0.013691] Mount-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.013766] Mountpoint-cache hash table entries: 32768 (order: 6, 262144 bytes, linear)
[ 0.014941] VFS: Finished mounting rootfs on nullfs
[ 0.023419] rcu: Hierarchical SRCU implementation.
[ 0.023445] rcu: Max phase no-delay instances is 1000.
[ 0.023862] Timer migration: 1 hierarchy levels; 8 children per group; 1 crossnode level
[ 0.025453] fsl-mc MSI: msi-controller@fe640000 domain created
[ 0.025498] fsl-mc MSI: msi-controller@fe660000 domain created
[ 0.030939] EFI services will not be available.
[ 0.031691] smp: Bringing up secondary CPUs ...
[ 0.032637] Detected VIPT I-cache on CPU1
[ 0.032955] GICv3: CPU1: found redistributor 100 region 0:0x00000000fe6a0000
[ 0.032975] GICv3: CPU1: using allocated LPI pending table @0x00000001002d0000
[ 0.033032] CPU1: Booted secondary processor 0x0000000100 [0x412fd050]
[ 0.034226] Detected VIPT I-cache on CPU2
[ 0.034534] GICv3: CPU2: found redistributor 200 region 0:0x00000000fe6c0000
[ 0.034551] GICv3: CPU2: using allocated LPI pending table @0x00000001002e0000
[ 0.034602] CPU2: Booted secondary processor 0x0000000200 [0x412fd050]
[ 0.035759] Detected VIPT I-cache on CPU3
[ 0.036068] GICv3: CPU3: found redistributor 300 region 0:0x00000000fe6e0000
[ 0.036085] GICv3: CPU3: using allocated LPI pending table @0x00000001002f0000
[ 0.036134] CPU3: Booted secondary processor 0x0000000300 [0x412fd050]
[ 0.037294] CPU features: detected: Spectre-v4
[ 0.037302] CPU features: detected: Spectre-BHB
[ 0.037309] CPU features: detected: Broken broadcast TLBI completion
[ 0.037312] CPU features: detected: SSBS not fully self-synchronizing
[ 0.037314] Detected PIPT I-cache on CPU4
[ 0.037452] GICv3: CPU4: found redistributor 400 region 0:0x00000000fe700000
[ 0.037461] GICv3: CPU4: using allocated LPI pending table @0x0000000100300000
[ 0.037490] CPU4: Booted secondary processor 0x0000000400 [0x414fd0b0]
[ 0.038567] Detected PIPT I-cache on CPU5
[ 0.038716] GICv3: CPU5: found redistributor 500 region 0:0x00000000fe720000
[ 0.038726] GICv3: CPU5: using allocated LPI pending table @0x0000000100310000
[ 0.038758] CPU5: Booted secondary processor 0x0000000500 [0x414fd0b0]
[ 0.039813] Detected PIPT I-cache on CPU6
[ 0.039959] GICv3: CPU6: found redistributor 600 region 0:0x00000000fe740000
[ 0.039969] GICv3: CPU6: using allocated LPI pending table @0x0000000100320000
[ 0.039999] CPU6: Booted secondary processor 0x0000000600 [0x414fd0b0]
[ 0.041047] Detected PIPT I-cache on CPU7
[ 0.041193] GICv3: CPU7: found redistributor 700 region 0:0x00000000fe760000
[ 0.041203] GICv3: CPU7: using allocated LPI pending table @0x0000000100330000
[ 0.041232] CPU7: Booted secondary processor 0x0000000700 [0x414fd0b0]
[ 0.041357] smp: Brought up 1 node, 8 CPUs
[ 0.041720] SMP: Total of 8 processors activated.
[ 0.041737] CPU: All CPU(s) started at EL2
[ 0.041754] CPU features: detected: 32-bit EL0 Support
[ 0.041771] CPU features: detected: Data cache clean to the PoU not required for I/D coherence
[ 0.041794] CPU features: detected: Common not Private translations
[ 0.041811] CPU features: detected: CRC32 instructions
[ 0.041827] CPU features: detected: Data cache clean to Point of Persistence
[ 0.041853] CPU features: detected: RCpc load-acquire (LDAPR)
[ 0.041871] CPU features: detected: LSE atomic instructions
[ 0.041889] CPU features: detected: Privileged Access Never
[ 0.041905] CPU features: detected: PMUv3
[ 0.041920] CPU features: detected: RAS Extension Support
[ 0.041940] CPU features: detected: XNX
[ 0.041958] CPU features: detected: Speculative Store Bypassing Safe (SSBS)
[ 0.042065] alternatives: applying system-wide alternatives
[ 0.046540] CPU features: detected: ICV_DIR_EL1 trapping
[ 0.046569] CPU features: detected: Hardware dirty bit management on CPU4-7
[ 0.080622] node 0 deferred pages initialised in 32ms
[ 0.080687] Memory: 15963748K/16769024K available (19392K kernel code, 5190K rwdata, 11740K rodata, 3840K init, 917K bss, 534760K reserved, 262144K cma-reserved)
[ 0.083177] devtmpfs: initialized
[ 0.097684] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[ 0.097720] posixtimers hash table entries: 4096 (order: 4, 65536 bytes, linear)
[ 0.097777] futex hash table entries: 2048 (131072 bytes on 1 NUMA nodes, total 128 KiB, linear).
[ 0.099253] 2G module region forced by RANDOMIZE_MODULE_REGION_FULL
[ 0.099269] 0 pages in range for non-PLT usage
[ 0.099272] 513952 pages in range for PLT usage
[ 0.103137] DMI: not present or invalid.
[ 0.105820] NET: Registered PF_NETLINK/PF_ROUTE protocol family
[ 0.106719] DMA: preallocated 2048 KiB GFP_KERNEL pool for atomic allocations
[ 0.107156] DMA: preallocated 2048 KiB GFP_KERNEL|GFP_DMA pool for atomic allocations
[ 0.107185] audit: initializing netlink subsys (disabled)
[ 0.107289] audit: type=2000 audit(0.104:1): state=initialized audit_enabled=0 res=1
[ 0.110011] thermal_sys: Registered thermal governor 'fair_share'
[ 0.110018] thermal_sys: Registered thermal governor 'bang_bang'
[ 0.110028] thermal_sys: Registered thermal governor 'step_wise'
[ 0.110035] thermal_sys: Registered thermal governor 'user_space'
[ 0.110041] thermal_sys: Registered thermal governor 'power_allocator'
[ 0.110088] cpuidle: using governor ladder
[ 0.110123] cpuidle: using governor menu
[ 0.110271] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[ 0.110430] ASID allocator initialised with 32768 entries
[ 0.111591] Serial: AMBA PL011 UART driver
[ 0.127880] /vop@fdd90000: Fixed dependency cycle(s) with /dsi@fde30000
[ 0.127924] /dsi@fde30000: Fixed dependency cycle(s) with /vop@fdd90000
[ 0.134989] /pcie@fe180000: Fixed dependency cycle(s) with /pcie@fe180000/legacy-interrupt-controller
[ 0.135368] /pcie@fe190000: Fixed dependency cycle(s) with /pcie@fe190000/legacy-interrupt-controller
[ 0.140197] /i2c@fec80000/bridge@2c: Fixed dependency cycle(s) with /i2c@fec80000/bridge@2c/aux-bus/panel
[ 0.140225] /i2c@fec80000/bridge@2c: Fixed dependency cycle(s) with /dsi@fde30000
[ 0.140274] /i2c@fec80000/bridge@2c/aux-bus/panel: Fixed dependency cycle(s) with /i2c@fec80000/bridge@2c
[ 0.140296] /i2c@fec80000/codec@1a: Fixed dependency cycle(s) with /i2s@fe470000
[ 0.145248] rockchip-gpio fd8a0000.gpio: probed /pinctrl/gpio@fd8a0000
[ 0.145707] rockchip-gpio fec20000.gpio: probed /pinctrl/gpio@fec20000
[ 0.146147] rockchip-gpio fec30000.gpio: probed /pinctrl/gpio@fec30000
[ 0.146617] rockchip-gpio fec40000.gpio: probed /pinctrl/gpio@fec40000
[ 0.147136] rockchip-gpio fec50000.gpio: probed /pinctrl/gpio@fec50000
[ 0.149473] /vop@fdd90000: Fixed dependency cycle(s) with /hdmi@fdea0000
[ 0.149521] /hdmi@fdea0000: Fixed dependency cycle(s) with /vop@fdd90000
[ 0.150127] /pcie@fe150000: Fixed dependency cycle(s) with /pcie@fe150000/legacy-interrupt-controller
[ 0.160416] HugeTLB: registered 1.00 GiB page size, pre-allocated 0 pages
[ 0.160431] HugeTLB: 0 KiB vmemmap can be freed for a 1.00 GiB page
[ 0.160439] HugeTLB: registered 32.0 MiB page size, pre-allocated 0 pages
[ 0.160446] HugeTLB: 0 KiB vmemmap can be freed for a 32.0 MiB page
[ 0.160453] HugeTLB: registered 2.00 MiB page size, pre-allocated 0 pages
[ 0.160460] HugeTLB: 0 KiB vmemmap can be freed for a 2.00 MiB page
[ 0.160467] HugeTLB: registered 64.0 KiB page size, pre-allocated 0 pages
[ 0.160473] HugeTLB: 0 KiB vmemmap can be freed for a 64.0 KiB page
[ 0.168174] ACPI: Interpreter disabled.
[ 0.170671] iommu: Default domain type: Translated
[ 0.170681] iommu: DMA domain TLB invalidation policy: strict mode
[ 0.171900] pps_core: LinuxPPS API ver. 1 registered
[ 0.171910] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[ 0.171923] PTP clock support registered
[ 0.171960] EDAC MC: Ver: 3.0.0
[ 0.172215] scmi_core: SCMI protocol bus registered
[ 0.173727] NetLabel: Initializing
[ 0.173737] NetLabel: domain hash size = 128
[ 0.173743] NetLabel: protocols = UNLABELED CIPSOv4 CALIPSO
[ 0.173785] NetLabel: unlabeled traffic allowed by default
[ 0.173918] vgaarb: loaded
[ 0.174225] clocksource: Switched to clocksource arch_sys_counter
[ 0.176014] VFS: Disk quotas dquot_6.6.0
[ 0.176185] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[ 0.176875] AppArmor: AppArmor Filesystem Enabled
[ 0.176967] pnp: PnP ACPI: disabled
[ 0.181997] NET: Registered PF_INET protocol family
[ 0.182353] IP idents hash table entries: 262144 (order: 9, 2097152 bytes, linear)
[ 0.192868] tcp_listen_portaddr_hash hash table entries: 8192 (order: 5, 131072 bytes, linear)
[ 0.193030] Table-perturb hash table entries: 65536 (order: 6, 262144 bytes, linear)
[ 0.193161] TCP established hash table entries: 131072 (order: 8, 1048576 bytes, linear)
[ 0.194377] TCP bind hash table entries: 65536 (order: 9, 2097152 bytes, linear)
[ 0.196268] TCP: Hash tables configured (established 131072 bind 65536)
[ 0.196552] MPTCP token hash table entries: 16384 (order: 7, 393216 bytes, linear)
[ 0.196815] UDP hash table entries: 8192 (order: 7, 524288 bytes, linear)
[ 0.197549] NET: Registered PF_UNIX/PF_LOCAL protocol family
[ 0.197577] NET: Registered PF_XDP protocol family
[ 0.197593] PCI: CLS 0 bytes, default 64
[ 0.197743] Trying to unpack rootfs image as initramfs...
[ 0.208793] kvm [1]: nv: 570 coarse grained trap handlers
[ 0.208935] kvm [1]: nv: 710 fine grained trap handlers
[ 0.209203] kvm [1]: IPA Size Limit: 40 bits
[ 0.209239] kvm [1]: GICv3: no GICV resource entry
[ 0.209247] kvm [1]: disabling GICv2 emulation
[ 0.209281] kvm [1]: GIC system register CPU interface enabled
[ 0.209360] kvm [1]: vgic interrupt IRQ9
[ 0.209396] kvm [1]: VHE mode initialized successfully
[ 0.215846] Initialise system trusted keyrings
[ 0.215903] Key type blacklist registered
[ 0.216140] workingset: timestamp_bits=42 (anon: 38) max_order=22 bucket_order=0 (anon: 0)
[ 0.220583] fuse: init (API version 7.45)
[ 0.221384] integrity: Platform Keyring initialized
[ 0.221409] integrity: Machine keyring initialized
[ 0.221466] Key type asymmetric registered
[ 0.221473] Asymmetric key parser 'x509' registered
[ 0.221629] alg: self-tests disabled
[ 0.221907] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 243)
[ 0.222079] io scheduler mq-deadline registered
[ 0.250399] ledtrig-cpu: registered to indicate activity on CPUs
[ 0.264290] dma-pl330 fea10000.dma-controller: Loaded driver for PL330 DMAC-241330
[ 0.264313] dma-pl330 fea10000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[ 0.265575] dma-pl330 fea30000.dma-controller: Loaded driver for PL330 DMAC-241330
[ 0.265592] dma-pl330 fea30000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[ 0.266722] dma-pl330 fed10000.dma-controller: Loaded driver for PL330 DMAC-241330
[ 0.266740] dma-pl330 fed10000.dma-controller: DBUFF-128x8bytes Num_Chans-8 Num_Peri-32 Num_Events-16
[ 0.272924] Serial: 8250/16550 driver, 4 ports, IRQ sharing enabled
[ 0.274605] printk: legacy console [ttyS2] disabled
[ 0.274835] feb50000.serial: ttyS2 at MMIO 0xfeb50000 (irq = 27, base_baud = 1500000) is a 16550A
[ 0.274901] printk: legacy console [ttyS2] enabled
[ 0.420411] Serial: AMBA driver
[ 0.421522] msm_serial: driver initialized
[ 0.422386] SuperH (H)SCI(F) driver initialized
[ 0.424617] arm-smmu-v3 fc900000.iommu: oas 48-bit (features 0x001c1ebf)
[ 0.426942] arm-smmu-v3 fc900000.iommu: allocated 65536 entries for cmdq
[ 0.430661] arm-smmu-v3 fc900000.iommu: allocated 32768 entries for evtq
[ 0.431935] arm-smmu-v3 fc900000.iommu: allocated 65536 entries for priq
[ 0.434686] arm-smmu-v3 fc900000.iommu: msi_domain absent - falling back to wired irqs
[ 0.437081] platform fdb50000.video-codec: Adding to iommu group 0
[ 0.438518] platform fdba0000.video-codec: Adding to iommu group 1
[ 0.439857] platform fdba4000.video-codec: Adding to iommu group 2
[ 0.441185] platform fdba8000.video-codec: Adding to iommu group 3
[ 0.442522] platform fdbac000.video-codec: Adding to iommu group 4
[ 0.443506] rockchip-pm-domain fd8d8000.power-management:power-controller: supply domain not found, using dummy regulator
[ 0.445027] platform fdc38100.video-codec: Adding to iommu group 5
[ 0.446441] platform fdc40100.video-codec: Adding to iommu group 6
[ 0.447656] platform fdd90000.vop: Adding to iommu group 7
[ 0.464975] /spi@feb20000/pmic@0: Fixed dependency cycle(s) with /spi@feb20000/pmic@0/regulators/dcdc-reg7
[ 0.465869] /spi@feb20000/pmic@0: Fixed dependency cycle(s) with /spi@feb20000/pmic@0/rk806_dvs1_pwrdn
[ 0.466710] /spi@feb20000/pmic@0: Fixed dependency cycle(s) with /spi@feb20000/pmic@0/rk806_dvs3_null
[ 0.467524] /spi@feb20000/pmic@0: Fixed dependency cycle(s) with /spi@feb20000/pmic@0/rk806_dvs2_null
[ 0.468337] /spi@feb20000/pmic@0: Fixed dependency cycle(s) with /spi@feb20000/pmic@0/dvs1-null-pins
[ 0.470332] mousedev: PS/2 mouse device common for all mice
[ 0.475413] arm-scmi arm-scmi.0.auto: Using scmi_smc_transport
[ 0.475935] arm-scmi arm-scmi.0.auto: SCMI max-rx-timeout: 30ms / max-msg-size: 104bytes / max-msg: 20
[ 0.476834] scmi_protocol scmi_dev.1: Enabled polling mode TX channel - prot_id:16
[ 0.477624] arm-scmi arm-scmi.0.auto: SCMI Notifications - Core Enabled.
[ 0.478297] arm-scmi arm-scmi.0.auto: SCMI Protocol v2.0 'rockchip:' Firmware version 0x0
[ 0.479037] arm-scmi arm-scmi.0.auto: Enabling SCMI Quirk [quirk_clock_rates_triplet_out_of_spec]
[ 0.481348] SMCCC: SOC_ID: ARCH_SOC_ID not implemented, skipping ....
[ 0.486681] hw perfevents: enabled with armv8_cortex_a55 PMU driver, 7 (0,8000003f) counters available
[ 0.490533] hw perfevents: enabled with armv8_cortex_a76 PMU driver, 7 (0,8000003f) counters available
[ 0.495867] NET: Registered PF_INET6 protocol family
[ 0.498067] Segment Routing with IPv6
[ 0.498413] RPL Segment Routing with IPv6
[ 0.498793] In-situ OAM (IOAM) with IPv6
[ 0.499176] mip6: Mobile IPv6
[ 0.499445] NET: Registered PF_PACKET protocol family
[ 0.500227] mpls_gso: MPLS GSO support
[ 0.507594] registered taskstats version 1
[ 0.508151] Loading compiled-in X.509 certificates
[ 0.679923] Freeing initrd memory: 39244K
[ 0.711940] Loaded X.509 cert 'Build time autogenerated kernel key: 6df29ac8a778d892b2b6519a1d80c5f5b5595d36'
[ 0.720159] Demotion targets for Node 0: null
[ 0.720838] Key type .fscrypt registered
[ 0.721188] Key type fscrypt-provisioning registered
[ 0.798250] Key type encrypted registered
[ 0.798626] AppArmor: AppArmor sha256 policy hashing enabled
[ 0.799130] ima: No TPM chip found, activating TPM-bypass!
[ 0.799616] ima: Allocated hash algorithm: sha256
[ 0.800794] ima: No architecture policies found
[ 0.801268] evm: Initialising EVM extended attributes:
[ 0.801722] evm: security.selinux
[ 0.802017] evm: security.SMACK64 (disabled)
[ 0.802411] evm: security.SMACK64EXEC (disabled)
[ 0.802818] evm: security.SMACK64TRANSMUTE (disabled)
[ 0.803262] evm: security.SMACK64MMAP (disabled)
[ 0.803668] evm: security.apparmor
[ 0.803970] evm: security.ima
[ 0.804232] evm: security.capability
[ 0.804548] evm: HMAC attrs: 0x1
[ 0.850737] clk: Disabling unused clocks
[ 0.851816] PM: genpd: Disabling unused power domains
[ 0.858761] Freeing unused kernel memory: 3840K
[ 0.985577] Checked W+X mappings: passed, no W+X pages found
[ 0.986098] Run /init as init process
[ 0.986434] with arguments:
[ 0.986439] /init
[ 0.986443] with environment:
[ 0.986446] HOME=/
[ 0.986449] TERM=linux
[ 2.105689] /dsi@fde30000: Fixed dependency cycle(s) with /i2c@fec80000/bridge@2c
[ 2.106647] /i2c@fec80000/bridge@2c: Fixed dependency cycle(s) with /i2c@fec80000/bridge@2c/aux-bus/panel
[ 2.107550] /i2c@fec80000/bridge@2c: Fixed dependency cycle(s) with /dsi@fde30000
[ 2.108452] /i2c@fec80000/bridge@2c/aux-bus/panel: Fixed dependency cycle(s) with /i2c@fec80000/bridge@2c
[ 2.109702] /i2s@fe470000: Fixed dependency cycle(s) with /i2c@fec80000/codec@1a
[ 2.110506] /i2c@fec80000/codec@1a: Fixed dependency cycle(s) with /i2s@fe470000
[ 2.120054] usbcore: registered new interface driver usbfs
[ 2.120573] usbcore: registered new interface driver hub
[ 2.121072] usbcore: registered new device driver usb
[ 2.188078] ehci-platform fc800000.usb: EHCI Host Controller
[ 2.188391] ehci-platform fc880000.usb: EHCI Host Controller
[ 2.188608] ehci-platform fc800000.usb: new USB bus registered, assigned bus number 1
[ 2.189111] ehci-platform fc880000.usb: new USB bus registered, assigned bus number 2
[ 2.189879] ehci-platform fc800000.usb: irq 67, io mem 0xfc800000
[ 2.190605] ehci-platform fc880000.usb: irq 68, io mem 0xfc880000
[ 2.202262] ehci-platform fc800000.usb: USB 2.0 started, EHCI 1.00
[ 2.203487] usb usb1: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 7.01
[ 2.204222] usb usb1: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.204859] usb usb1: Product: EHCI Host Controller
[ 2.205289] usb usb1: Manufacturer: Linux 7.1.3-mnt-reform-arm64 ehci_hcd
[ 2.205884] usb usb1: SerialNumber: fc800000.usb
[ 2.214454] hub 1-0:1.0: USB hub found
[ 2.214831] hub 1-0:1.0: 1 port detected
[ 2.218260] ehci-platform fc880000.usb: USB 2.0 started, EHCI 1.00
[ 2.218948] usb usb2: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 7.01
[ 2.219678] usb usb2: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.220313] usb usb2: Product: EHCI Host Controller
[ 2.220743] usb usb2: Manufacturer: Linux 7.1.3-mnt-reform-arm64 ehci_hcd
[ 2.221338] usb usb2: SerialNumber: fc880000.usb
[ 2.241334] hub 2-0:1.0: USB hub found
[ 2.241824] hub 2-0:1.0: 1 port detected
[ 2.265245] ohci-platform fc840000.usb: Generic Platform OHCI controller
[ 2.265420] ohci-platform fc8c0000.usb: Generic Platform OHCI controller
[ 2.265860] ohci-platform fc840000.usb: new USB bus registered, assigned bus number 3
[ 2.266482] ohci-platform fc8c0000.usb: new USB bus registered, assigned bus number 4
[ 2.266577] ohci-platform fc8c0000.usb: irq 70, io mem 0xfc8c0000
[ 2.267222] ohci-platform fc840000.usb: irq 69, io mem 0xfc840000
[ 2.323584] input: gpio-keys as /devices/platform/gpio-keys/input/input0
[ 2.325017] rockchip-dw-pcie a40c00000.pcie: host bridge /pcie@fe180000 ranges:
[ 2.325698] rockchip-dw-pcie a40c00000.pcie: IO 0x00f3100000..0x00f31fffff -> 0x00f3100000
[ 2.326476] usb usb4: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 7.01
[ 2.326487] usb usb4: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.326492] usb usb4: Product: Generic Platform OHCI controller
[ 2.326550] rockchip-dw-pcie a40c00000.pcie: MEM 0x00f3200000..0x00f3ffffff -> 0x00f3200000
[ 2.327228] usb usb4: Manufacturer: Linux 7.1.3-mnt-reform-arm64 ohci_hcd
[ 2.327236] rockchip-dw-pcie a40c00000.pcie: MEM 0x09c0000000..0x09ffffffff -> 0x09c0000000
[ 2.327243] usb usb4: SerialNumber: fc8c0000.usb
[ 2.327395] rockchip-dw-pcie a40c00000.pcie: iATU: unroll T, 8 ob, 8 ib, align 64K, limit 8G
[ 2.328356] hub 4-0:1.0: USB hub found
[ 2.332026] hub 4-0:1.0: 1 port detected
[ 2.332884] usb usb3: New USB device found, idVendor=1d6b, idProduct=0001, bcdDevice= 7.01
[ 2.333655] usb usb3: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 2.334197] reform2_lpc: loading out-of-tree module taints kernel.
[ 2.334347] usb usb3: Product: Generic Platform OHCI controller
[ 2.334882] reform2_lpc: module verification failed: signature and/or required key missing - tainting kernel
[ 2.334896] usb usb3: Manufacturer: Linux 7.1.3-mnt-reform-arm64 ohci_hcd
[ 2.336891] usb usb3: SerialNumber: fc840000.usb
[ 2.338245] hub 3-0:1.0: USB hub found
[ 2.338685] hub 3-0:1.0: 1 port detected
[ 2.353929] dwmmc_rockchip fe2c0000.mmc: IDMAC supports 32-bit address mode.
[ 2.354603] dwmmc_rockchip fe2c0000.mmc: Using internal DMA controller.
[ 2.355188] dwmmc_rockchip fe2c0000.mmc: Version ID is 270a
[ 2.355713] dwmmc_rockchip fe2c0000.mmc: DW MMC controller at irq 74,32 bit host data width,256 deep fifo
[ 2.356697] dwmmc_rockchip fe2c0000.mmc: Got CD GPIO
[ 2.369849] mmc_host mmc1: Bus speed = 400000Hz (req 400000Hz, actual 400000HZ div = 0)
[ 2.400918] mmc0: CQHCI version 5.10
[ 2.458259] mmc0: SDHCI controller on fe2e0000.mmc [fe2e0000.mmc] using ADMA
[ 2.470279] usb 1-1: new high-speed USB device number 2 using ehci-platform
[ 2.490297] mmc_host mmc1: Bus speed = 39600000Hz (req 40000000Hz, actual 39600000HZ div = 0)
[ 2.492522] rk_gmac-dwmac fe1b0000.ethernet: IRQ sfty not found
[ 2.493385] rk_gmac-dwmac fe1b0000.ethernet: clock input or output? (output).
[ 2.494018] rk_gmac-dwmac fe1b0000.ethernet: TX delay(0x10).
[ 2.494556] rk_gmac-dwmac fe1b0000.ethernet: RX delay(0x10).
[ 2.495061] rk_gmac-dwmac fe1b0000.ethernet: integrated PHY? (no).
[ 2.498274] mmc1: new high speed SDHC card at address b369
[ 2.500625] rk_gmac-dwmac fe1b0000.ethernet: init for RGMII
[ 2.501832] mmcblk1: mmc1:b369 SDABC 29.1 GiB
[ 2.506737] mmcblk1: p1 p2
[ 2.508103] rk_gmac-dwmac fe1b0000.ethernet: User ID: 0x30, Synopsys ID: 0x51
[ 2.508745] rk_gmac-dwmac fe1b0000.ethernet: DWMAC4/5
[ 2.509201] rk_gmac-dwmac fe1b0000.ethernet: DMA HW capability register supported
[ 2.509859] rk_gmac-dwmac fe1b0000.ethernet: Active PHY interface: RGMII (1)
[ 2.510498] rk_gmac-dwmac fe1b0000.ethernet: RX Checksum Offload Engine supported
[ 2.511156] rk_gmac-dwmac fe1b0000.ethernet: TX Checksum insertion supported
[ 2.511774] rk_gmac-dwmac fe1b0000.ethernet: Wake-Up On Lan supported
[ 2.512390] rk_gmac-dwmac fe1b0000.ethernet: Enable RX Mitigation via HW Watchdog Timer
[ 2.513099] rk_gmac-dwmac fe1b0000.ethernet: Enabled L3L4 Flow TC (entries=2)
[ 2.513733] rk_gmac-dwmac fe1b0000.ethernet: Enabled RFS Flow TC (entries=10)
[ 2.514385] rk_gmac-dwmac fe1b0000.ethernet: TSO supported
[ 2.514870] rk_gmac-dwmac fe1b0000.ethernet: TSO feature enabled
[ 2.515398] rk_gmac-dwmac fe1b0000.ethernet: SPH feature enabled
[ 2.515926] rk_gmac-dwmac fe1b0000.ethernet: Using 32/32 bits DMA host/device width
[ 2.516088] fan53555-regulator 0-0042: FAN53555 Option[10] Rev[1] Detected!
[ 2.517332] fan53555-regulator 0-0043: FAN53555 Option[10] Rev[1] Detected!
[ 2.517772] fan53555-regulator 1-0042: FAN53555 Option[10] Rev[1] Detected!
[ 2.537234] rtc-pcf8523 6-0068: registered as rtc0
[ 2.538969] rtc-pcf8523 6-0068: setting system clock to 2026-07-07T03:59:14 UTC (1783396754)
[ 2.567010] sdhci-dwcmshc fe2e0000.mmc: Can't reduce the clock below 52MHz in HS200/HS400 mode
[ 2.568946] mmc0: Command Queue Engine enabled
[ 2.569356] mmc0: new HS400 Enhanced strobe MMC card at address 0001
[ 2.570783] mmcblk0: mmc0:0001 Y0S256 233 GiB
[ 2.572406] mmcblk0: p1 p2
[ 2.573110] mmcblk0boot0: mmc0:0001 Y0S256 4.00 MiB
[ 2.575666] mmcblk0boot1: mmc0:0001 Y0S256 4.00 MiB
[ 2.577488] mmcblk0rpmb: mmc0:0001 Y0S256 16.0 MiB, chardev (236:0)
[ 2.619585] usb 1-1: New USB device found, idVendor=0451, idProduct=8142, bcdDevice= 1.00
[ 2.620322] usb 1-1: New USB device strings: Mfr=0, Product=0, SerialNumber=1
[ 2.620951] usb 1-1: SerialNumber: 9C0B20791EA6
[ 2.621933] hub 1-1:1.0: USB hub found
[ 2.622458] hub 1-1:1.0: 4 ports detected
[ 2.657751] usbcore: registered new device driver onboard-usb-dev
[ 2.717563] rk_gmac-dwmac fe1b0000.ethernet end0: renamed from eth0
[ 2.902445] usb 1-1.3: new full-speed USB device number 3 using ehci-platform
[ 3.024979] hid: raw HID events driver (C) Jiri Kosina
[ 3.046501] usbcore: registered new interface driver usbhid
[ 3.047005] usbhid: USB HID core driver
[ 3.097163] usb 1-1.3: New USB device found, idVendor=1209, idProduct=6d02, bcdDevice= 1.00
[ 3.097916] usb 1-1.3: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 3.098580] usb 1-1.3: Product: MNT Reform Keyboard 4.0 Neo2/LT
[ 3.099101] usb 1-1.3: Manufacturer: MNT Research
[ 3.099517] usb 1-1.3: SerialNumber: RP2040
[ 3.188454] input: MNT Research MNT Reform Keyboard 4.0 Neo2/LT Keyboard as /devices/platform/fc800000.usb/usb1/1-1/1-1.3/1-1.3:1.0/0003:1209:6D02.0001/input/input1
[ 3.209379] usb 1-1.4: new full-speed USB device number 4 using ehci-platform
[ 3.303876] mc: Linux media interface: v0.10
[ 3.309459] usb 1-1.4: New USB device found, idVendor=cafe, idProduct=4008, bcdDevice= 1.00
[ 3.310209] usb 1-1.4: New USB device strings: Mfr=1, Product=2, SerialNumber=3
[ 3.310871] usb 1-1.4: Product: Reform Trackball (RP2040)
[ 3.311348] usb 1-1.4: Manufacturer: MNT Research
[ 3.311763] usb 1-1.4: SerialNumber: MREFATBC20R02
[ 3.314813] input: MNT Research Reform Trackball (RP2040) as /devices/platform/fc800000.usb/usb1/1-1/1-1.4/1-1.4:1.0/0003:CAFE:4008.0002/input/input2
[ 3.326925] hid-generic 0003:1209:6D02.0001: input,hidraw0: USB HID v1.11 Keyboard [MNT Research MNT Reform Keyboard 4.0 Neo2/LT] on usb-fc800000.usb-1.3/input0
[ 3.327291] hid-generic 0003:CAFE:4008.0002: input,hidraw1: USB HID v1.11 Mouse [MNT Research Reform Trackball (RP2040)] on usb-fc800000.usb-1.4/input0
[ 3.372266] videodev: Linux video capture interface: v2.00
[ 3.402257] rockchip-dw-pcie a40c00000.pcie: Device found, but not active
[ 3.403153] rockchip-dw-pcie a40c00000.pcie: PCI host bridge to bus 0003:30
[ 3.403774] pci_bus 0003:30: root bus resource [bus 30-3f]
[ 3.404261] pci_bus 0003:30: root bus resource [io 0x0000-0xfffff] (bus address [0xf3100000-0xf31fffff])
[ 3.405101] pci_bus 0003:30: root bus resource [mem 0xf3200000-0xf3ffffff]
[ 3.405705] pci_bus 0003:30: root bus resource [mem 0x9c0000000-0x9ffffffff]
[ 3.406368] pci 0003:30:00.0: [1d87:3588] type 01 class 0x060400 PCIe Root Port
[ 3.407026] pci 0003:30:00.0: ROM [mem 0x00000000-0x0000ffff pref]
[ 3.407573] pci 0003:30:00.0: PCI bridge to [bus 01-ff]
[ 3.408036] pci 0003:30:00.0: bridge window [io 0x0000-0x0fff]
[ 3.408574] pci 0003:30:00.0: bridge window [mem 0x00000000-0x000fffff]
[ 3.409175] pci 0003:30:00.0: bridge window [mem 0x00000000-0x000fffff 64bit pref]
[ 3.409898] pci 0003:30:00.0: supports D1 D2
[ 3.410283] pci 0003:30:00.0: PME# supported from D0 D1 D3hot
[ 3.414332] pci 0003:30:00.0: Adding to iommu group 8
[ 3.417514] pci 0003:30:00.0: Primary bus is hard wired to 0
[ 3.418023] pci 0003:30:00.0: bridge configuration invalid ([bus 01-ff]), reconfiguring
[ 3.418914] pci_bus 0003:31: busn_res: [bus 31-3f] end is updated to 31
[ 3.419514] pci 0003:30:00.0: ROM [mem 0xf3200000-0xf320ffff pref]: assigned
[ 3.420139] pci 0003:30:00.0: PCI bridge to [bus 31]
[ 3.420582] pci_bus 0003:30: resource 4 [io 0x0000-0xfffff]
[ 3.421081] pci_bus 0003:30: resource 5 [mem 0xf3200000-0xf3ffffff]
[ 3.421633] pci_bus 0003:30: resource 6 [mem 0x9c0000000-0x9ffffffff]
[ 3.424231] pcieport 0003:30:00.0: PME: Signaling with IRQ 88
[ 3.425220] pcieport 0003:30:00.0: AER: enabled with IRQ 89
[ 3.446766] meson_vdec: module is from the staging directory, the quality is unknown, you have been warned.
[ 3.462151] rockchip-dw-pcie a41000000.pcie: host bridge /pcie@fe190000 ranges:
[ 3.462905] rockchip-dw-pcie a41000000.pcie: IO 0x00f4100000..0x00f41fffff -> 0x00f4100000
[ 3.463720] rockchip-dw-pcie a41000000.pcie: MEM 0x00f4200000..0x00f4ffffff -> 0x00f4200000
[ 3.464520] rockchip-dw-pcie a41000000.pcie: MEM 0x0a00000000..0x0a3fffffff -> 0x0a00000000
[ 3.465625] rockchip-dw-pcie a41000000.pcie: iATU: unroll T, 8 ob, 8 ib, align 64K, limit 8G
[ 3.509148] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[ 3.509657] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 5
[ 3.510457] xhci-hcd xhci-hcd.4.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000808002000010
[ 3.511311] xhci-hcd xhci-hcd.4.auto: irq 90, io mem 0xfc000000
[ 3.511941] xhci-hcd xhci-hcd.4.auto: xHCI Host Controller
[ 3.512429] xhci-hcd xhci-hcd.4.auto: new USB bus registered, assigned bus number 6
[ 3.513105] xhci-hcd xhci-hcd.4.auto: Host supports USB 3.0 SuperSpeed
[ 3.514007] usb usb5: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 7.01
[ 3.514763] usb usb5: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.515400] usb usb5: Product: xHCI Host Controller
[ 3.515831] usb usb5: Manufacturer: Linux 7.1.3-mnt-reform-arm64 xhci-hcd
[ 3.516427] usb usb5: SerialNumber: xhci-hcd.4.auto
[ 3.517536] hub 5-0:1.0: USB hub found
[ 3.517919] hub 5-0:1.0: 1 port detected
[ 3.519417] usb usb6: We don't know the algorithms for LPM for this host, disabling LPM.
[ 3.520720] usb usb6: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 7.01
[ 3.521463] usb usb6: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.522100] usb usb6: Product: xHCI Host Controller
[ 3.522544] usb usb6: Manufacturer: Linux 7.1.3-mnt-reform-arm64 xhci-hcd
[ 3.523142] usb usb6: SerialNumber: xhci-hcd.4.auto
[ 3.524397] hub 6-0:1.0: USB hub found
[ 3.524788] hub 6-0:1.0: 1 port detected
[ 3.525579] xhci-hcd xhci-hcd.5.auto: xHCI Host Controller
[ 3.526077] xhci-hcd xhci-hcd.5.auto: new USB bus registered, assigned bus number 7
[ 3.526908] xhci-hcd xhci-hcd.5.auto: hcc params 0x0220fe64 hci version 0x110 quirks 0x0000808002000010
[ 3.527761] xhci-hcd xhci-hcd.5.auto: irq 91, io mem 0xfc400000
[ 3.528392] xhci-hcd xhci-hcd.5.auto: xHCI Host Controller
[ 3.528879] xhci-hcd xhci-hcd.5.auto: new USB bus registered, assigned bus number 8
[ 3.529553] xhci-hcd xhci-hcd.5.auto: Host supports USB 3.0 SuperSpeed
[ 3.531061] usb usb7: New USB device found, idVendor=1d6b, idProduct=0002, bcdDevice= 7.01
[ 3.531808] usb usb7: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.532445] usb usb7: Product: xHCI Host Controller
[ 3.532876] usb usb7: Manufacturer: Linux 7.1.3-mnt-reform-arm64 xhci-hcd
[ 3.533472] usb usb7: SerialNumber: xhci-hcd.5.auto
[ 3.534601] hub 7-0:1.0: USB hub found
[ 3.535153] hub 7-0:1.0: 1 port detected
[ 3.536020] usb usb8: We don't know the algorithms for LPM for this host, disabling LPM.
[ 3.536889] usb usb8: New USB device found, idVendor=1d6b, idProduct=0003, bcdDevice= 7.01
[ 3.537618] usb usb8: New USB device strings: Mfr=3, Product=2, SerialNumber=1
[ 3.538269] usb usb8: Product: xHCI Host Controller
[ 3.538700] usb usb8: Manufacturer: Linux 7.1.3-mnt-reform-arm64 xhci-hcd
[ 3.539297] usb usb8: SerialNumber: xhci-hcd.5.auto
[ 3.540324] hub 8-0:1.0: USB hub found
[ 3.540687] hub 8-0:1.0: 1 port detected
[ 3.670300] rockchip-dw-pcie a41000000.pcie: PCIe Gen.1 x1 link up
[ 3.671128] rockchip-dw-pcie a41000000.pcie: PCI host bridge to bus 0004:40
[ 3.671782] pci_bus 0004:40: root bus resource [bus 40-4f]
[ 3.672290] pci_bus 0004:40: root bus resource [io 0x100000-0x1fffff] (bus address [0xf4100000-0xf41fffff])
[ 3.673172] pci_bus 0004:40: root bus resource [mem 0xf4200000-0xf4ffffff]
[ 3.673834] pci_bus 0004:40: root bus resource [mem 0xa00000000-0xa3fffffff]
[ 3.674549] pci 0004:40:00.0: [1d87:3588] type 01 class 0x060400 PCIe Root Port
[ 3.675243] pci 0004:40:00.0: ROM [mem 0x00000000-0x0000ffff pref]
[ 3.675819] pci 0004:40:00.0: PCI bridge to [bus 01-ff]
[ 3.676309] pci 0004:40:00.0: bridge window [io 0x0000-0x0fff]
[ 3.676867] pci 0004:40:00.0: bridge window [mem 0x00000000-0x000fffff]
[ 3.677524] pci 0004:40:00.0: bridge window [mem 0x00000000-0x000fffff 64bit pref]
[ 3.678314] pci 0004:40:00.0: supports D1 D2
[ 3.678710] pci 0004:40:00.0: PME# supported from D0 D1 D3hot
[ 3.680558] pci 0004:40:00.0: Adding to iommu group 9
[ 3.688808] pci 0004:40:00.0: Primary bus is hard wired to 0
[ 3.689335] pci 0004:40:00.0: bridge configuration invalid ([bus 01-ff]), reconfiguring
[ 3.690461] pci 0004:41:00.0: [168c:002a] type 00 class 0x028000 PCIe Legacy Endpoint
[ 3.691416] pci 0004:41:00.0: BAR 0 [mem 0x00000000-0x0000ffff 64bit]
[ 3.692455] pci 0004:41:00.0: supports D1
[ 3.692828] pci 0004:41:00.0: PME# supported from D0 D1 D3hot
[ 3.694620] pci 0004:41:00.0: Adding to iommu group 9
[ 3.695219] pci_bus 0004:41: busn_res: [bus 41-4f] end is updated to 41
[ 3.695857] pci 0004:40:00.0: bridge window [mem 0xf4200000-0xf42fffff]: assigned
[ 3.696550] pci 0004:40:00.0: ROM [mem 0xf4300000-0xf430ffff pref]: assigned
[ 3.697200] pci 0004:41:00.0: BAR 0 [mem 0xf4200000-0xf420ffff 64bit]: assigned
[ 3.697946] pci 0004:40:00.0: PCI bridge to [bus 41]
[ 3.698433] pci 0004:40:00.0: bridge window [mem 0xf4200000-0xf42fffff]
[ 3.699057] pci_bus 0004:40: resource 4 [io 0x100000-0x1fffff]
[ 3.699603] pci_bus 0004:40: resource 5 [mem 0xf4200000-0xf4ffffff]
[ 3.700173] pci_bus 0004:40: resource 6 [mem 0xa00000000-0xa3fffffff]
[ 3.700758] pci_bus 0004:41: resource 1 [mem 0xf4200000-0xf42fffff]
[ 3.705971] pcieport 0004:40:00.0: PME: Signaling with IRQ 102
[ 3.707447] pcieport 0004:40:00.0: AER: enabled with IRQ 103
[ 3.710772] rockchip-dw-pcie a40000000.pcie: host bridge /pcie@fe150000 ranges:
[ 3.711483] rockchip-dw-pcie a40000000.pcie: IO 0x00f0100000..0x00f01fffff -> 0x00f0100000
[ 3.712295] rockchip-dw-pcie a40000000.pcie: MEM 0x00f0200000..0x00f0ffffff -> 0x00f0200000
[ 3.713095] rockchip-dw-pcie a40000000.pcie: MEM 0x0900000000..0x093fffffff -> 0x0900000000
[ 3.721913] rockchip-dw-pcie a40000000.pcie: iATU: unroll T, 8 ob, 8 ib, align 64K, limit 8G
[ 3.882273] usb 8-1: new SuperSpeed USB device number 2 using xhci-hcd
[ 3.903565] usb 8-1: New USB device found, idVendor=0451, idProduct=8140, bcdDevice= 1.00
[ 3.904335] usb 8-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0
[ 3.930743] hub 8-1:1.0: USB hub found
[ 3.931290] hub 8-1:1.0: 4 ports detected
[ 4.030313] rockchip-dw-pcie a40000000.pcie: PCIe Gen.3 x4 link up
[ 4.031157] rockchip-dw-pcie a40000000.pcie: PCI host bridge to bus 0000:00
[ 4.031813] pci_bus 0000:00: root bus resource [bus 00-0f]
[ 4.032319] pci_bus 0000:00: root bus resource [io 0x200000-0x2fffff] (bus address [0xf0100000-0xf01fffff])
[ 4.033201] pci_bus 0000:00: root bus resource [mem 0xf0200000-0xf0ffffff]
[ 4.033866] pci_bus 0000:00: root bus resource [mem 0x900000000-0x93fffffff]
[ 4.034708] pci 0000:00:00.0: [1d87:3588] type 01 class 0x060400 PCIe Root Port
[ 4.035467] pci 0000:00:00.0: ROM [mem 0x00000000-0x0000ffff pref]
[ 4.036058] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 4.036544] pci 0000:00:00.0: bridge window [io 0x0000-0x0fff]
[ 4.037101] pci 0000:00:00.0: bridge window [mem 0x00000000-0x000fffff]
[ 4.037755] pci 0000:00:00.0: bridge window [mem 0x00000000-0x000fffff 64bit pref]
[ 4.038542] pci 0000:00:00.0: supports D1 D2
[ 4.038938] pci 0000:00:00.0: PME# supported from D0 D1 D3hot
[ 4.040895] pci 0000:00:00.0: Adding to iommu group 10
[ 4.049383] pci_bus 0000:01: busn_res: can not insert [bus 01-ff] under [bus 00-0f] (conflicts with (null) [bus 00-0f])
[ 4.050575] pci 0000:01:00.0: [1e4b:1202] type 00 class 0x010802 PCIe Endpoint
[ 4.051396] pci 0000:01:00.0: BAR 0 [mem 0x00000000-0x00003fff 64bit]
[ 4.052399] pci 0000:01:00.0: PME# supported from D0 D3hot D3cold
[ 4.054449] pci 0000:01:00.0: Adding to iommu group 10
[ 4.055124] pci 0000:00:00.0: bridge window [mem 0xf0200000-0xf02fffff]: assigned
[ 4.055828] pci 0000:00:00.0: ROM [mem 0xf0300000-0xf030ffff pref]: assigned
[ 4.056478] pci 0000:01:00.0: BAR 0 [mem 0xf0200000-0xf0203fff 64bit]: assigned
[ 4.057175] pci 0000:00:00.0: PCI bridge to [bus 01-ff]
[ 4.057705] pci 0000:00:00.0: bridge window [mem 0xf0200000-0xf02fffff]
[ 4.058356] pci_bus 0000:00: resource 4 [io 0x200000-0x2fffff]
[ 4.058900] pci_bus 0000:00: resource 5 [mem 0xf0200000-0xf0ffffff]
[ 4.059480] pci_bus 0000:00: resource 6 [mem 0x900000000-0x93fffffff]
[ 4.060067] pci_bus 0000:01: resource 1 [mem 0xf0200000-0xf02fffff]
[ 4.065377] pcieport 0000:00:00.0: PME: Signaling with IRQ 114
[ 4.067488] pcieport 0000:00:00.0: AER: enabled with IRQ 115
[ 4.077028] cpufreq: cpufreq_policy_online: CPU0: Running at unlisted initial frequency: 816000 kHz, changing to: 1008000 kHz
[ 4.078291] cpu cpu0: EM: created perf domain
[ 4.081905] cpufreq: cpufreq_policy_online: CPU4: Running at unlisted initial frequency: 816000 kHz, changing to: 1200000 kHz
[ 4.083064] cpu cpu4: EM: created perf domain
[ 4.084033] Key type psk registered
[ 4.086653] cpufreq: cpufreq_policy_online: CPU6: Running at unlisted initial frequency: 816000 kHz, changing to: 1200000 kHz
[ 4.087797] cpu cpu6: EM: created perf domain
[ 4.088189] energy_model: updating cpu0 cpu_cap=397 old capacity=530
[ 4.097950] rockchip-drm display-subsystem: bound fdd90000.vop (ops vop2_component_ops [rockchipdrm])
[ 4.099462] dwhdmiqp-rockchip fdea0000.hdmi: registered DesignWare HDMI QP I2C bus driver
[ 4.100492] rockchip-drm display-subsystem: bound fdea0000.hdmi (ops dw_hdmi_qp_rockchip_ops [rockchipdrm])
[ 4.101554] rockchip-drm display-subsystem: bound fde30000.dsi (ops dw_mipi_dsi2_rockchip_ops [rockchipdrm])
[ 4.110582] nvme nvme0: pci function 0000:01:00.0
[ 4.111009] nvme 0000:01:00.0: enabling device (0000 -> 0002)
[ 4.120728] hwmon hwmon1: temp1_input not attached to any thermal zone
[ 4.121351] hwmon hwmon1: temp2_input not attached to any thermal zone
[ 4.121957] hwmon hwmon1: temp3_input not attached to any thermal zone
[ 4.122555] nvme nvme0: passthrough uses implicit buffer lengths
[ 4.123945] nvme nvme0: allocated 8 MiB host memory buffer (1 segment).
[ 4.126682] [drm] Initialized rockchip 1.0.0 for display-subsystem on minor 0
[ 4.133346] nvme nvme0: 8/0/0 default/read/poll queues
[ 4.145204] nvme nvme0: Ignoring bogus Namespace Identifiers
[ 4.150270] random: crng init done
[ 4.225884] Console: switching to colour frame buffer device 240x67
[ 4.243913] rockchip-drm display-subsystem: [drm] fb0: rockchipdrmfb frame buffer device
[ 5.484382] mmcblk1: p1 p2
[ 7.374737] mmcblk1: p1 p2
[ 14.562645] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fb000000.gpu
[ 14.563673] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fdb50000.video-codec
[ 14.564716] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fdb80000.rga
[ 14.565730] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fdba0000.video-codec
[ 14.566808] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fdba4000.video-codec
[ 14.567852] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fdba8000.video-codec
[ 14.568891] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fdbac000.video-codec
[ 14.569955] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fdc38100.video-codec
[ 14.571031] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fdc40100.video-codec
[ 14.572108] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fdc70000.video-codec
[ 14.573157] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fe470000.i2s
[ 14.574197] rockchip-pm-domain fd8d8000.power-management:power-controller: sync_state() pending due to fddf4000.i2s
[ 28.169511] EXT4-fs (mmcblk1p2): orphan cleanup on readonly fs
[ 28.170150] EXT4-fs (mmcblk1p2): mounted filesystem da3f5551-2b95-5559-b0bc-474c2fe844d4 ro with ordered data mode. Quota mode: none.
[ 28.590625] Not activating Mandatory Access Control as /sbin/tomoyo-init does not exist.
[ 31.105111] systemd[1]: Inserted module 'autofs4'
[ 31.933504] systemd[1]: systemd 261.1-2 running in system mode (+PAM +AUDIT +SELINUX +APPARMOR +IMA +IPE +SMACK +SECCOMP +GCRYPT -GNUTLS +OPENSSL +ACL +BLKID +CURL +ELFUTILS +FIDO2 +IDN2 +KMOD +LIBCRYPTSETUP +LIBCRYPTSETUP_PLUGINS +LIBFDISK +PCRE2 +PWQUALITY +P11KIT +QRENCODE +TPM2 +BZIP2 +LZ4 +XZ +ZLIB +ZSTD +BPF_FRAMEWORK +BTF -XKBCOMMON -UTMP +LIBARCHIVE)
[ 31.937301] systemd[1]: Detected architecture arm64.
[ 32.042106] systemd[1]: Initializing machine ID from random generator.
[ 32.045080] systemd[1]: Installed transient '/etc/machine-id' file.
[ 32.066428] systemd[1]: Hostname set to <reform>.
[ 32.429751] systemd[1]: bpf-restrict-fs: Failed to load BPF object: No such process
[ 36.736734] dw-apb-uart feb50000.serial: forbid DMA for kernel console
[ 39.215300] systemd[1]: Queued start job for default target graphical.target.
[ 39.237374] systemd[1]: Created slice system-cups.slice - CUPS Slice.
[ 39.242298] systemd[1]: Created slice system-getty.slice - Slice /system/getty.
[ 39.245650] systemd[1]: Created slice system-modprobe.slice - Slice /system/modprobe.
[ 39.250547] systemd[1]: Created slice system-serial\x2dgetty.slice - Slice /system/serial-getty.
[ 39.254098] systemd[1]: Created slice system-systemd\x2dfsck.slice - Slice /system/systemd-fsck.
[ 39.257343] systemd[1]: Created slice user.slice - User and Session Slice.
[ 39.260054] systemd[1]: Started systemd-ask-password-console.path - Dispatch Password Requests to Console Directory Watch.
[ 39.264510] systemd[1]: Started systemd-ask-password-wall.path - Forward Password Requests to Wall Directory Watch.
[ 39.267415] systemd[1]: Set up automount proc-sys-fs-binfmt_misc.automount - Arbitrary Executable File Formats File System Automount Point.
[ 39.270202] systemd[1]: Expecting device dev-disk-by\x2dlabel-reformsdboot.device - /dev/disk/by-label/reformsdboot...
[ 39.273074] systemd[1]: Expecting device dev-ttyS2.device - /dev/ttyS2...
[ 39.275461] systemd[1]: Reached target imports.target - Image Downloads.
[ 39.279058] systemd[1]: Reached target nss-user-lookup.target - User and Group Name Lookups.
[ 39.281315] systemd[1]: Reached target slices.target - Slice Units.
[ 39.283249] systemd[1]: Reached target swap.target - Swaps.
[ 39.285227] systemd[1]: Listening on dm-event.socket - Device-mapper event daemon FIFOs.
[ 39.287476] systemd[1]: Listening on lvm2-lvmpolld.socket - LVM2 poll daemon socket.
[ 39.323850] systemd[1]: Listening on rpcbind.socket - RPCbind Server Activation Socket.
[ 39.331444] systemd[1]: Listening on systemd-ask-password.socket - Query the User Interactively for a Password.
[ 39.339194] systemd[1]: Listening on systemd-creds.socket - Credential Encryption/Decryption.
[ 39.348098] systemd[1]: Listening on systemd-factory-reset.socket - Factory Reset Management.
[ 39.351109] systemd[1]: Listening on systemd-hostnamed.socket - Hostname Service Socket.
[ 39.355378] systemd[1]: Listening on systemd-journald-dev-log.socket - Journal Socket (/dev/log).
[ 39.358336] systemd[1]: Listening on systemd-journald.socket - Journal Sockets.
[ 39.371325] systemd[1]: Listening on systemd-mute-console.socket - Console Output Muting Service Socket.
[ 39.374476] systemd[1]: systemd-pcrextend.socket - TPM PCR Measurements skipped, unmet condition check ConditionSecurity=measured-os
[ 39.376689] systemd[1]: systemd-pcrlock.socket - Make TPM PCR Policy skipped, unmet condition check ConditionSecurity=measured-uki
[ 39.379044] systemd[1]: Listening on systemd-udevd-control.socket - udev Control Socket.
[ 39.382029] systemd[1]: Listening on systemd-udevd-kernel.socket - udev Kernel Socket.
[ 39.384915] systemd[1]: Listening on systemd-udevd-varlink.socket - udev Varlink Socket.
[ 39.392773] systemd[1]: Mounting dev-hugepages.mount - Huge Pages File System...
[ 39.397798] systemd[1]: Mounting dev-mqueue.mount - POSIX Message Queue File System...
[ 39.402612] systemd[1]: Mounting sys-kernel-debug.mount - Kernel Debug File System...
[ 39.407330] systemd[1]: Mounting sys-kernel-tracing.mount - Kernel Trace File System...
[ 39.416682] systemd[1]: tmp.mount: x-systemd.graceful-option=usrquota specified, but option is not available, suppressing.
[ 39.432165] systemd[1]: Mounting tmp.mount - Temporary Directory /tmp...
[ 39.435455] systemd[1]: auth-rpcgss-module.service - Kernel Module supporting RPCSEC_GSS skipped, unmet condition check ConditionPathExists=/etc/krb5.keytab
[ 39.440008] systemd[1]: Starting blk-availability.service - Availability of block devices...
[ 39.445653] systemd[1]: Starting keyboard-setup.service - Set the console keyboard layout...
[ 39.451125] systemd[1]: Starting kmod-static-nodes.service - Create List of Static Device Nodes...
[ 39.456588] systemd[1]: Starting lvm2-monitor.service - Monitoring of LVM2 mirrors, snapshots etc. using dmeventd or progress polling...
[ 39.462250] systemd[1]: Starting modprobe@configfs.service - Load Kernel Module configfs...
[ 39.465615] systemd[1]: modprobe@drm.service - Load Kernel Module drm skipped, unmet condition check ConditionKernelModuleLoaded=!drm
[ 39.469791] systemd[1]: Starting modprobe@efi_pstore.service - Load Kernel Module efi_pstore...
[ 39.473106] systemd[1]: modprobe@fuse.service - Load Kernel Module fuse skipped, unmet condition check ConditionKernelModuleLoaded=!fuse
[ 39.476863] systemd[1]: Mounting sys-fs-fuse-connections.mount - FUSE Control File System...
[ 39.481390] systemd[1]: Starting modprobe@nvme_fabrics.service - Load Kernel Module nvme_fabrics...
[ 39.484479] systemd[1]: systemd-fsck-root.service - File System Check on Root Device skipped, unmet condition check ConditionPathExists=!/run/initramfs/fsck-root
[ 39.486880] systemd[1]: systemd-hibernate-clear.service - Clear Stale Hibernate Storage Info skipped, unmet condition check ConditionPathExists=/sys/firmware/efi/efivars/HibernateLocation-8cf2644b-4b0b-428f-9387-6d876050dc67
[ 39.493219] systemd[1]: Starting systemd-journald.service - Journal Service...
[ 39.528812] systemd[1]: Starting systemd-modules-load.service - Load Kernel Modules...
[ 39.533446] systemd[1]: systemd-pcrmachine.service - TPM PCR Machine ID Measurement skipped, unmet condition check ConditionSecurity=measured-os
[ 39.535948] systemd[1]: systemd-pcrosseparator.service - TPM PCR OS Separator skipped, unmet condition check ConditionSecurity=measured-os
[ 39.540373] systemd[1]: Starting systemd-remount-fs.service - Remount Root and Kernel File Systems...
[ 39.543643] systemd[1]: systemd-tpm2-setup-early.service - Early TPM SRK Setup skipped, unmet condition check ConditionSecurity=measured-os
[ 39.546991] systemd[1]: systemd-pcrnvdone.service - TPM PCR NvPCR Initialization Separator skipped, unmet condition check ConditionPathExists=/etc/initrd-release
[ 39.549429] systemd[1]: systemd-pcrproduct.service - TPM NvPCR Product ID Measurement skipped, unmet condition check ConditionSecurity=measured-os
[ 39.555671] systemd[1]: Starting systemd-udev-load-credentials.service - Load udev Rules from Credentials...
[ 39.561149] systemd[1]: Starting systemd-udev-trigger.service - Coldplug All udev Devices...
[ 39.690945] systemd[1]: Finished blk-availability.service - Availability of block devices.
[ 39.903096] EXT4-fs (mmcblk1p2): re-mounted da3f5551-2b95-5559-b0bc-474c2fe844d4 r/w.
[ 40.026458] systemd[1]: Mounted dev-hugepages.mount - Huge Pages File System.
[ 40.031532] systemd-journald[461]: Collecting audit messages is disabled.
[ 40.036136] systemd[1]: Mounted dev-mqueue.mount - POSIX Message Queue File System.
[ 40.043700] systemd[1]: Mounted sys-kernel-debug.mount - Kernel Debug File System.
[ 40.046838] systemd[1]: Mounted sys-kernel-tracing.mount - Kernel Trace File System.
[ 40.049101] i2c_dev: i2c /dev entries driver
[ 40.052541] systemd[1]: Mounted tmp.mount - Temporary Directory /tmp.
[ 40.055565] systemd[1]: Finished keyboard-setup.service - Set the console keyboard layout.
[ 40.058616] systemd[1]: Finished kmod-static-nodes.service - Create List of Static Device Nodes.
[ 40.061493] systemd[1]: modprobe@configfs.service: Deactivated successfully.
[ 40.063295] systemd[1]: Finished modprobe@configfs.service - Load Kernel Module configfs.
[ 40.067515] systemd[1]: modprobe@efi_pstore.service: Deactivated successfully.
[ 40.069217] systemd[1]: Finished modprobe@efi_pstore.service - Load Kernel Module efi_pstore.
[ 40.071940] systemd[1]: Mounted sys-fs-fuse-connections.mount - FUSE Control File System.
[ 40.074655] systemd[1]: modprobe@nvme_fabrics.service: Deactivated successfully.
[ 40.076361] systemd[1]: Finished modprobe@nvme_fabrics.service - Load Kernel Module nvme_fabrics.
[ 40.080756] systemd[1]: Finished systemd-modules-load.service - Load Kernel Modules.
[ 40.083880] systemd[1]: Finished systemd-remount-fs.service - Remount Root and Kernel File Systems.
[ 40.087168] systemd[1]: Finished systemd-udev-load-credentials.service - Load udev Rules from Credentials.
[ 40.092481] systemd[1]: Mounting sys-kernel-config.mount - Kernel Configuration File System...
[ 40.101345] systemd[1]: systemd-hwdb-update.service - Rebuild Hardware Database skipped, no trigger condition checks were met.
[ 40.103360] systemd[1]: systemd-pstore.service - Platform Persistent Storage Archival skipped, unmet condition check ConditionDirectoryNotEmpty=/sys/fs/pstore
[ 40.106876] systemd[1]: Starting systemd-random-seed.service - Load/Save OS Random Seed...
[ 40.127525] systemd[1]: Starting systemd-sysctl.service - Apply Kernel Variables...
[ 40.132003] systemd[1]: Starting systemd-tmpfiles-setup-dev-early.service - Create Static Device Nodes in /dev gracefully...
[ 40.135400] systemd[1]: systemd-tpm2-setup.service - TPM SRK Setup skipped, unmet condition check ConditionSecurity=measured-os
[ 40.137854] systemd[1]: Started systemd-journald.service - Journal Service.
[ 40.209062] systemd-journald[461]: Received client request to flush runtime journal.
[ 40.384770] device-mapper: core: CONFIG_IMA_DISABLE_HTABLE is disabled. Duplicate IMA measurements will not be recorded in the IMA log.
[ 40.387109] device-mapper: uevent: version 1.0.3
[ 40.388965] device-mapper: ioctl: 4.50.0-ioctl (2025-04-28) initialised: dm-devel@lists.linux.dev
[ 45.502510] rockchip-pm-domain fd8d8000.power-management:power-controller: supply domain not found, using dummy regulator
[ 45.504532] panthor fb000000.gpu: [drm] clock rate = 198000000
[ 45.513032] panthor fb000000.gpu: EM: created perf domain
[ 45.514845] panthor fb000000.gpu: [drm] Mali-G610 id 0xa867 major 0x0 minor 0x0 status 0x5
[ 45.516739] panthor fb000000.gpu: [drm] Features: L2:0x7120306 Tiler:0x809 Mem:0x301 MMU:0x2830 AS:0xff
[ 45.516744] panthor fb000000.gpu: [drm] shader_present=0x50005 l2_present=0x1 tiler_present=0x1
[ 45.637664] rockchip-rga fdb80000.rga: HW Version: 0x03.02
[ 45.641109] rockchip-rga fdb80000.rga: Registered rockchip-rga as /dev/video0
[ 45.687917] rkvdec fdc40100.video-codec: missing multi-core support, ignoring this instance
[ 45.695947] hantro-vpu fdb50000.video-codec: registered rockchip,rk3568-vpu-dec as /dev/video2
[ 45.697922] hantro-vpu fdba0000.video-codec: registered rockchip,rk3588-vepu121-enc as /dev/video3
[ 45.699828] hantro-vpu fdba4000.video-codec: missing multi-core support, ignoring this instance
[ 45.701410] hantro-vpu fdba8000.video-codec: missing multi-core support, ignoring this instance
[ 45.702972] hantro-vpu fdbac000.video-codec: missing multi-core support, ignoring this instance
[ 45.705053] hantro-vpu fdc70000.video-codec: registered rockchip,rk3588-av1-vpu-dec as /dev/video4
[ 45.848899] panthor fb000000.gpu: [drm] Firmware protected mode entry is not supported, ignoring
[ 45.851003] panthor fb000000.gpu: [drm] Firmware git sha: 95a25d71030715381f33105394285e1dcc860a65
[ 45.854290] panthor fb000000.gpu: [drm] CSF FW using interface v1.5.0, Features 0x0 Instrumentation features 0x71
[ 45.856777] panthor fb000000.gpu: [drm] Using Transparent Hugepage
[ 45.859428] [drm] Initialized panthor 1.8.0 for fb000000.gpu on minor 1
[ 46.342106] cfg80211: Loading compiled-in X.509 certificates for regulatory database
[ 46.346277] Loaded X.509 cert 'benh@debian.org: 577e021cb980e0e820821ba7b54b4961b8b4fadf'
[ 46.348536] Loaded X.509 cert 'romain.perier@gmail.com: 3abbc6ec146e09d1b6016ab9d6cf71dd233f0328'
[ 46.350816] Loaded X.509 cert 'sforshee: 00b28ddf47aef9cea7'
[ 46.352763] Loaded X.509 cert 'wens: 61c038651aabdcf94bd0ac7ff06c7248db18c600'
[ 46.768256] ath9k 0004:41:00.0: enabling device (0000 -> 0002)
[ 47.206548] ath: EEPROM regdomain: 0x0
[ 47.206553] ath: EEPROM indicates default country code should be used
[ 47.206555] ath: doing EEPROM country->regdmn map search
[ 47.206557] ath: country maps to regdmn code: 0x3a
[ 47.206559] ath: Country alpha2 being used: US
[ 47.206560] ath: Regpair used: 0x3a
[ 47.213125] ieee80211 phy0: Selected rate control algorithm 'minstrel_ht'
[ 47.222428] ieee80211 phy0: Atheros AR9280 Rev:2 mem=0x0000000055567a44, irq=93
[ 47.423755] rockchip-i2s-tdm fddf4000.i2s: using zero-initialized flat cache, this may cause unexpected behavior
[ 47.434130] wm8960 6-001a: supply DCVDD not found, using dummy regulator
[ 47.434178] input: rk805 pwrkey as /devices/platform/feb20000.spi/spi_master/spi2/spi2.0/rk805-pwrkey.3.auto/input/input3
[ 47.435027] wm8960 6-001a: supply DBVDD not found, using dummy regulator
[ 47.442317] wm8960 6-001a: supply AVDD not found, using dummy regulator
[ 47.447351] wm8960 6-001a: supply SPKVDD1 not found, using dummy regulator
[ 47.449895] wm8960 6-001a: supply SPKVDD2 not found, using dummy regulator
[ 47.610916] ath9k 0004:41:00.0 wlP4p65s0: renamed from wlan0
[ 49.418059] EXT4-fs (mmcblk1p1): mounted filesystem 7ae33b74-fdb6-52ef-8cde-fa90ee137a19 r/w with ordered data mode. Quota mode: none.
[ 50.266110] RPC: Registered named UNIX socket transport module.
[ 50.267404] RPC: Registered udp transport module.
[ 50.268518] RPC: Registered tcp transport module.
[ 50.269589] RPC: Registered tcp-with-tls transport module.
[ 50.270779] RPC: Registered tcp NFSv4.1 backchannel transport module.
[ 63.906110] rk_gmac-dwmac fe1b0000.ethernet end0: Register MEM_TYPE_PAGE_POOL RxQ-0
[ 63.909244] rk_gmac-dwmac fe1b0000.ethernet end0: Register MEM_TYPE_PAGE_POOL RxQ-1
[ 63.976659] rk_gmac-dwmac fe1b0000.ethernet end0: PHY [stmmac-0:00] driver [Micrel KSZ9031 Gigabit PHY] (irq=POLL)
[ 63.990332] dwmac4: Master AXI performs any burst length
[ 63.991747] rk_gmac-dwmac fe1b0000.ethernet end0: No Safety Features support found
[ 63.994817] rk_gmac-dwmac fe1b0000.ethernet end0: IEEE 1588-2008 Advanced Timestamp supported
[ 63.997945] rk_gmac-dwmac fe1b0000.ethernet end0: registered PTP clock
[ 63.999434] rk_gmac-dwmac fe1b0000.ethernet end0: configuring for phy/rgmii link mode
[ 64.904903] NET: Registered PF_QIPCRTR protocol family
[ 77.055077] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 77.059198] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 77.758570] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 77.768898] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 77.769857] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 110.428779] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 110.433413] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 110.511354] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 110.530022] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 110.531064] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 118.728895] rfkill: input handler disabled
[ 122.552725] rfkill: input handler enabled
[ 123.996400] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 124.001756] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 124.101353] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 124.112014] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 124.113001] hdmi-audio-codec hdmi-audio-codec.6.auto: HDMI: Unknown ELD version 0
[ 133.582637] rfkill: input handler disabled
[ 134.474730] devfreq fb000000.gpu: Couldn't update frequency transition information.
[ 150.855324] wlP4p65s0: authenticate with 04:f0:21:23:a9:3e (local address=04:f0:21:ac:1d:88)
[ 150.856076] wlP4p65s0: send auth to 04:f0:21:23:a9:3e (try 1/3)
[ 150.878000] wlP4p65s0: authenticated
[ 150.882231] wlP4p65s0: associate with 04:f0:21:23:a9:3e (try 1/3)
[ 150.884328] wlP4p65s0: RX AssocResp from 04:f0:21:23:a9:3e (capab=0x11 status=0 aid=4)
[ 150.885362] wlP4p65s0: associated
[ 156.642945] devfreq fb000000.gpu: Couldn't update frequency transition information.
[ 179.851041] devfreq fb000000.gpu: Couldn't update frequency transition information.
